Technical specifications | |
Base Model Features | PowerPC processor
64 MB SDRAM 16 MB Flash Real Time Clock (with 650+ hours of backup) 1 Ethernet port (10/100) 2 RS-232/423/422/485 (selectable) 2 USB 2.0 host ports Avionics discrete I/O IRIG A or B, AM, PWM and PPS Voltage and temperature monitoring Flash drive (512 MB standard) Conduction-cooled PMC site Power: 28 VDC nominal MTBF: 350,000+ hours |

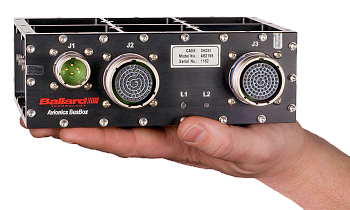

Mechanical | Compact enclosure: 5.46 x 7.31 x 2.48 in (139 x 186 x 63 mm)
Weight (typical): 3.5 lb (1.6 kg) Horizontal and vertical mounting (CAD installation drawings available) |
Connectors | |
Base & databus I/O | D38999/20FG35SA (79-pin) |
PMC I/O | D38999/20FG35SB (79-pin) |
Power | D38999/20FC4PN (4-pin) |
Software | Embedded Linux OS and SDK (included)
Universal BTIDriver API compatible VxWorks and other RTOS BSPs (optional) CoPilot analysis & test software (optional) Data recorder software (optional) |
Environmental and physical specifications | |
Operating Temperature | -40 to +71 °C |
Storage Temperature | -55 to +100 °C |
Conduction or convection cooled. DO-160, MIL-STD-810, MIL-STD-461 |
Model | Description |
AB2100 | Standard features. No MIL‑STD‑1553 Channels. NO AVIONICS |
AB2141 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 4R/4T |
CP‑AB2141 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 4R/4T. w/ CoPilot Analyzer |
AB2142 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 8R/4T |
CP‑AB2142 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2143 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 4R/0T |
CP‑AB2143 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 4R/0T. w/ CoPilot Analyzer |
AB2144 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 8R/0T |
CP‑AB2144 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 8R/0T. w/ CoPilot Analyzer |
AB2145 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 12R/0T |
CP‑AB2145 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2146 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 8R/4T and ARINC 717 1R/1T |
CP‑AB2146 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 8R/4T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2147 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 12R/0T and ARINC 717 1R/1T |
CP‑AB2147 | Standard features. No MIL‑STD‑1553 Channels. ARINC 429 12R/0T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2150 | Standard features. 1 Single‑Function 1553 Channel |
CP‑AB2150 | Standard features. 1 Single‑Function 1553 Channel. w/ CoPilot Analyzer |
AB2151 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 4R/4T |
CP‑AB2151 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 4R/4T. w/ CoPilot Analyzer |
AB2152 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 8R/4T |
CP‑AB2152 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2153 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 4R/0T |
CP‑AB2153 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 4R/0T. w/ CoPilot Analyzer |
AB2154 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 8R/0T |
CP‑AB2154 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 8R/0T. w/ CoPilot Analyzer |
AB2155 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 12R/0T |
CP‑AB2155 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2156 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 8R/4T and ARINC 717 1R/1T |
CP‑AB2156 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 8R/4T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2157 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 12R/0T and ARINC 717 1R/1T |
CP‑AB2157 | Standard features. 1 Single‑Function 1553 Channel. ARINC 429 12R/0T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2160 | Standard features. 1 Multi‑Function 1553 Channel |
CP‑AB2160 | Standard features. 1 Multi‑Function 1553 Channel. w/ CoPilot Analyzer |
AB2161 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 4R/4T |
CP‑AB2161 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 4R/4T. w/ CoPilot Analyzer |
AB2162 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 8R/4T |
CP‑AB2162 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2163 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 4R/0T |
CP‑AB2163 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 4R/0T. w/ CoPilot Analyzer |
AB2164 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 8R/0T |
CP‑AB2164 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 8R/0T. w/ CoPilot Analyzer |
AB2165 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 12R/0T |
CP‑AB2165 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2166 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 8R/4T and ARINC 717 1R/1T |
CP‑AB2166 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 8R/4T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2167 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 12R/0T and ARINC 717 1R/1T |
CP‑AB2167 | Standard features. 1 Multi‑Function 1553 Channel. ARINC 429 12R/0T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2170 | Standard features. 2 Single‑Function 1553 Channels |
CP‑AB2170 | Standard features. 2 Single‑Function 1553 Channels. w/ CoPilot Analyzer |
AB2171 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 4R/4T |
CP‑AB2171 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 4R/4T. w/ CoPilot Analyzer |
AB2172 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 8R/4T |
CP‑AB2172 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2173 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 4R/0T |
CP‑AB2173 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 4R/0T. w/ CoPilot Analyzer |
AB2174 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 8R/0T |
CP‑AB2174 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 8R/0T. w/ CoPilot Analyzer |
AB2175 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 12R/0T |
CP‑AB2175 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2176 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 8R/4T and ARINC 717 1R/1T |
CP‑AB2176 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 8R/4T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2177 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 12R/0T and ARINC 717 1R/1T |
CP‑AB2177 | Standard features. 2 Single‑Function 1553 Channels. ARINC 429 12R/0T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2180 | Standard features. 2 Multi‑Function 1553 Channels |
CP‑AB2180 | Standard features. 2 Multi‑Function 1553 Channels. w/ CoPilot Analyzer |
AB2181 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 4R/4T |
CP‑AB2181 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 4R/4T. w/ CoPilot Analyzer |
AB2182 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 8R/4T |
CP‑AB2182 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2183 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 4R/0T |
CP‑AB2183 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 4R/0T. w/ CoPilot Analyzer |
AB2184 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 8R/0T |
CP‑AB2184 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 8R/0T. w/ CoPilot Analyzer |
AB2185 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 12R/0T |
CP‑AB2185 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2186 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 8R/4T and ARINC 717 1R/1T |
CP‑AB2186 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 8R/4T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2187 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 12R/0T and ARINC 717 1R/1T |
CP‑AB2187 | Standard features. 2 Multi‑Function 1553 Channels. ARINC 429 12R/0T and ARINC 717 1R/1T. w/ CoPilot Analyzer |
AB2200 | Standard features. 8 Differential Discrete I/O |
AB2210 | Standard features. 1 Single‑Function MIL‑STD‑1553 Channel with Differential Discrete I/O |
CP‑AB2210 | Standard features. 1 Single‑Function MIL‑STD‑1553 Channel with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2220 | Standard features. 1 Multi‑Function MIL‑STD‑1553 Channel with Differential Discrete I/O |
CP‑AB2220 | Standard features. 1 Multi‑Function MIL‑STD‑1553 Channel with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2230 | Standard features. 2 Single‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O |
CP‑AB2230 | Standard features. 2 Single‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2240 | Standard features. 2 Multi‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O |
CP‑AB2240 | Standard features. 2 Multi‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2250 | Standard features. 3 Single‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O |
CP‑AB2250 | Standard features. 3 Single‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2260 | Standard features. 3 Multi‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O |
CP‑AB2260 | Standard features. 3 Multi‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2270 | Standard features. 4 Single‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O |
CP‑AB2270 | Standard features. 4 Single‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2280 | Standard features. 4 Multi‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O |
CP‑AB2280 | Standard features. 4 Multi‑Function MIL‑STD‑1553 Channels with Differential Discrete I/O. w/ CoPilot Analyzer |
AB2310 | Standard features. ARINC 708 1R/1T |
CP‑AB2310 | Standard features. ARINC 708 1R/1T. w/ CoPilot Analyzer |
AB2312 | Standard features. ARINC 708 1R/1T. ARINC 429 8R/4T |
CP‑AB2312 | Standard features. ARINC 708 1R/1T. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2315 | Standard features. ARINC 708 1R/1T. ARINC 429 12R/0T |
CP‑AB2315 | Standard features. ARINC 708 1R/1T. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2320 | Standard features. ARINC 708 2R/2T |
CP‑AB2320 | Standard features. ARINC 708 2R/2T. w/ CoPilot Analyzer |
AB2322 | Standard features. ARINC 708 2R/2T. ARINC 429 8R/4T |
CP‑AB2322 | Standard features. ARINC 708 2R/2T. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2325 | Standard features. ARINC 708 2R/2T. ARINC 429 12R/0T |
CP‑AB2325 | Standard features. ARINC 708 2R/2T. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2330 | Standard features. Single‑Function 1553 w/ ARINC 708 1R/1T |
CP‑AB2330 | Standard features. Single‑Function 1553 w/ ARINC 708 1R/1T. w/ CoPilot Analyzer |
AB2332 | Standard features. Single‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 8R/4T |
CP‑AB2332 | Standard features. Single‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2335 | Standard features. Single‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 12R/0T |
CP‑AB2335 | Standard features. Single‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2340 | Standard features. Multi‑Function 1553 w/ ARINC 708 1R/1T |
CP‑AB2340 | Standard features. Multi‑Function 1553 w/ ARINC 708 1R/1T. w/ CoPilot Analyzer |
AB2342 | Standard features. Multi‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 8R/4T |
CP‑AB2342 | Standard features. Multi‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 8R/4T. w/ CoPilot Analyzer |
AB2345 | Standard features. Multi‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 12R/0T |
CP‑AB2345 | Standard features. Multi‑Function 1553 w/ ARINC 708 1R/1T. ARINC 429 12R/0T. w/ CoPilot Analyzer |
AB2410 | Standard features. ARINC 429 24R/0T. ARINC 717 2R/0T BI‑POLAR ONLY |
CP‑AB2410 | Standard features. ARINC 429 24R/0T. ARINC 717 2R/0T BI‑POLAR ONLY |
AB2411 | Standard features. ARINC 429 20R/0T. ARINC 717 2R/2T BIPOLAR/BIPHASE |
CP‑AB2411 | Standard features. ARINC 429 20R/0T. ARINC 717 2R/2T BIPOLAR/BIPHASE |
AB2420 | Standard features. ARINC 429 20R/4T. ARINC 717 2R/2T BI‑POLAR ONLY |
CP‑AB2420 | Standard features. ARINC 429 20R/4T. ARINC 717 2R/2T BI‑POLAR ONLY |
AB2421 | Standard features. ARINC 429 18R/2T. ARINC 717 2R/2T BIPOLAR/BIPHASE |
CP‑AB2421 | Standard features. ARINC 429 18R/2T. ARINC 717 2R/2T BIPOLAR/BIPHASE |
AB2430 | Standard features. ARINC 429 16R/8T. ARINC 717 2R/2T BI‑POLAR ONLY |
CP‑AB2430 | Standard features. ARINC 429 16R/8T. ARINC 717 2R/2T BI‑POLAR ONLY |
AB2431 | Standard features. ARINC 429 14R/6T. ARINC 717 2R/2T BIPOLAR/BIPHASE |
CP‑AB2431 | Standard features. ARINC 429 14R/6T. ARINC 717 2R/2T BIPOLAR/BIPHASE |
AB2810 | Standard features. 48 Open/Ground Avionics Discrete I/O |
