JETBOX-Nano

• Sturdy all-steel construction
• Tabletop and DIN rail mounting
• Access to GPIO features with optional cable
• Size: 125mm x 95mm x 34mm (approx. 4.9 x 3.7 x 1.3 inches)

Ever since its introduction in March of 2019, the NVIDIA Jetson Nano computer-on-module has been capturing the hearts and minds of AI systems builders everywhere. JETBOX-nano™ is a low-cost enclosure for the Jetson Nano development kit. The all-steel enclosure provides a rugged, durable enclosure solution for the Jetson Nano that measures a compact 125mm x 95mm x 34mm (approx. 4.9×3.7×1.3 inches). The combination of the Jetson Nano development kit with the JETBOX-nano means users can deploy a professional quality NVIDIA Jetson system with almost 500 gigaFlops performance.

The NVIDIA Jetson Nano Development Kit provides plenty of I/O for makers, learners, and developers.

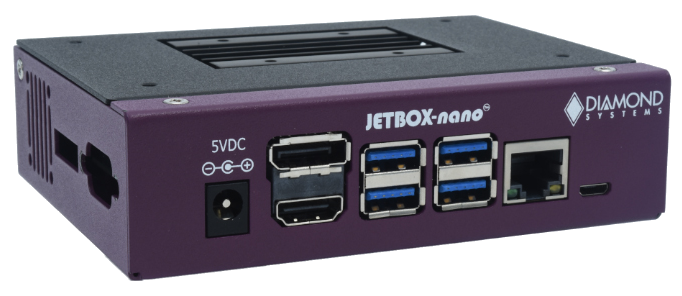

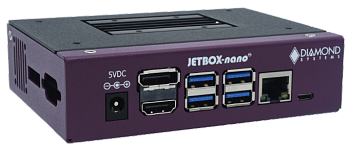

The JETBOX-Nano measures a compact 125mm x 95mm x 34mm (approx. 4.9×3.7×1.3 inches). Its 2-part design makes assembly quick and easy. In addition to the standard front-facing I/O connectors, the enclosure provides access to the serial port and camera flex cable port on the Nano development kit’s left side and the GPIO port on its right. A programming button on the rear enables easy software updates, and a DIN rail mount makes installation in end equipment easy.

JETBOX-nano comes as an easy to construct kit that includes everything needed to construct the durable, quality enclosure designed to house the NVIDIA Jetson Nano development kit:

• Top and bottom enclosure pieces with assembly hardware
• Rear programming button
• DIN rail mounting bracket
• Optional GPIO cable (-02 model)
• Easy-to-follow instructions for building JETBOX-nano

The JETBOX-nano enclosure kit is available in two configurations: The basic model and a GPIO-enabled model that includes a GPIO feature connector on the right side. The Nano development kit is purchased separately and is readily available from online vendors. Contact us for options regarding availability of a fully-assembled, ready-to-run system including the Nano development kit pre-installed.
