Midi
Box PC with wide temperature performance and abundant I/O
Vendor:Diamond Systems Corporation
- Details
- Order information
- Expansion-ready front panels with removable cover plates
- Dimensions: 183mm x 140mm x 81mm
- Mounting methods: integrated rubber feet, wall mount, DIN rail
- Operating temperature: -40°C to +85°C fanless
MIDI systems provide an efficient solution for customers seeking a Box PC with wide temperature performance and abundant I/O. MIDI systems feature expansion-ready front panels with removable cover plates to expose additional connector cutouts. The enclosure can easily accommodate up to two additional PC/104 style I/O modules or PCIe MiniCards. The cover plate provides ample cooling for Diamond’s rugged conduction-cooled SBCs. Table-top, wall mount, and DIN rail mounting options are all included.

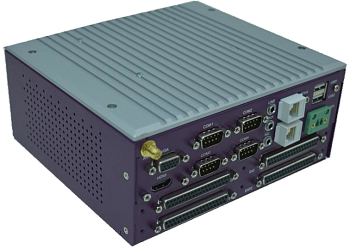

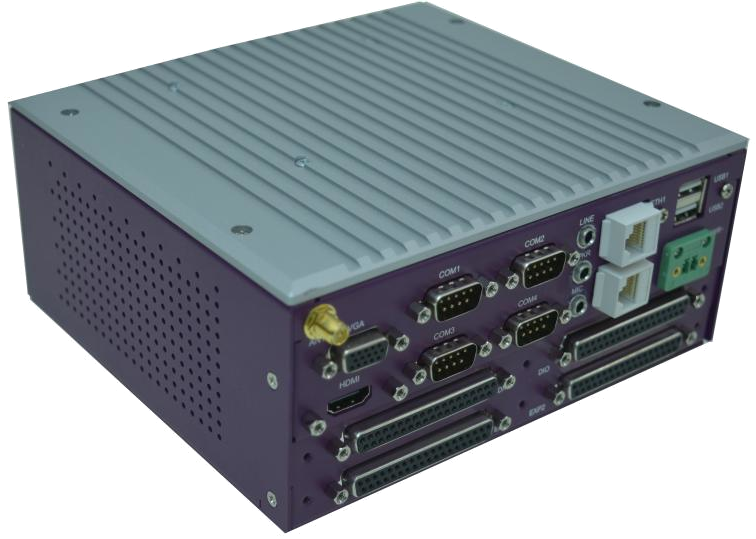

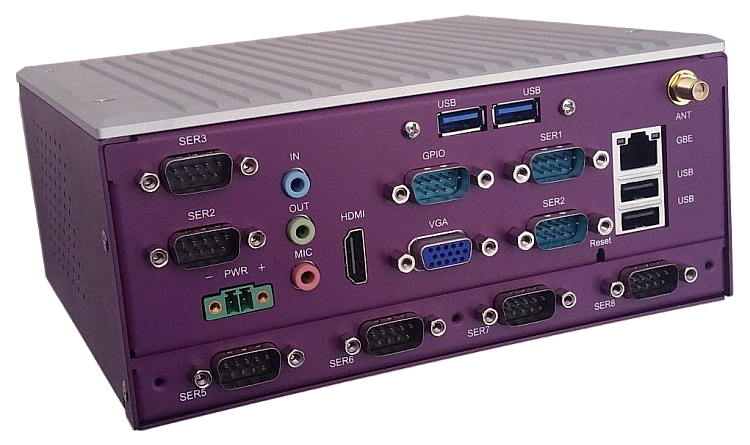

MIDI systems are available in a variety of standard configurations based on Diamond’s Aries (Bay Trail x86), Venus, and Eagle / Eaglet (ARM) SBCs.
| Model | Description |
| MIDI-ARS45A-01 | MIDI, Aries SBC with E3845, DAQ, w/o power supply |
| MIDI-ARS45N-01 | MIDI, Aries SBC with E3845, DIO, w/o power supply |
| MIDI-ARS45A-02 | MIDI, Aries SBC with E3845, DAQ, w/ power supply |
| MIDI-ARS45N-02 | MIDI, Aries SBC with E3845, DIO, w/ power supply |
| MIDI‑VNS766‑01 | MIDI Venus w/o Power supply Module |
| MIDI-EGLMX6-01 | MIDI, Eagle SBC with i.MX6 Quad Core proc |
| MIDI-EGLT30-01 | MIDI, Eaglet SBC with T3 CPU |
| MIDI‑EGTMX6‑01 | MIDI, Eaglet SBC with i.MX6 CPU |
| MIDI‑EGTT30‑01 | MIDI, Eaglet SBC with T3 CPU |
