Rosie

Embedded System with NVIDIA Jetson TX2/TX2i
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • NVIDIA Jetson TX2/TX2i
  • 8GB RAM
  • IP68, DO-160G, MIL-STD-810G
  • Operating temperature: -20°C to +80°C (-4°F to +176°F)

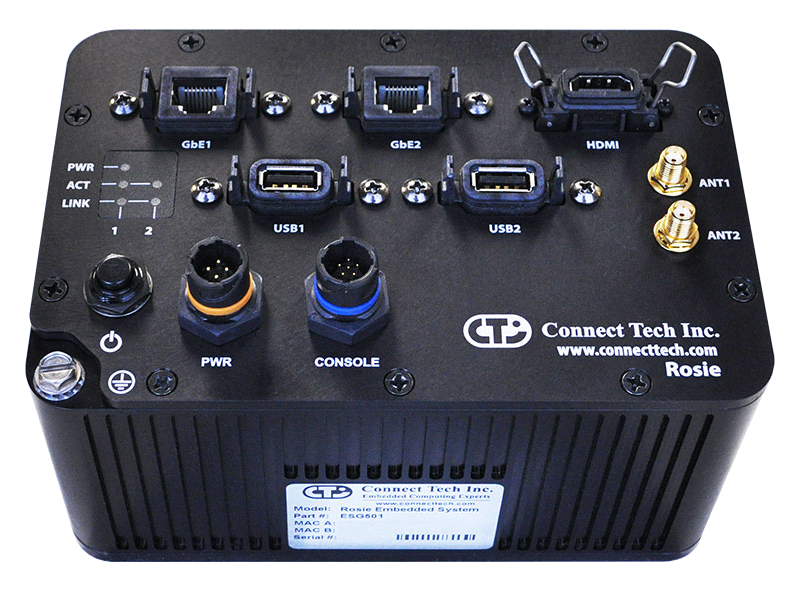

Connect Tech’s Rosie is a small form factor, rugged embedded system based on the NVIDIA Jetson TX2/TX2i.

Housed in a rugged compact enclosure with optional mounting brackets, Rosie features revolutionary NVIDIA Pascal architecture with 256 CUDA cores delivering over 1 TeraFLOPs of performance with a 64-bit ARM A57 CPU.

Rosie’s rugged system also provides USB, HDMI, Gigabit Ethernet, WiFi, and Bluetooth capabilities all with IP68 rated Ingress protection. Custom face plates are easily accommodated using Connect Tech design services. Rosie is designed to MIL-STD 810g and DO-160G harsh environments.

Technical specifications
Compatibility NVIDIA Jetson TX2, NVIDIA Jetson TX2i
Memory 8GB RAM
Storage 32GB eMMC
Display 1x HDMI, Supports up to HDMI 2.0 UHD 4K [2160p] at 60Hz
USB 2x USB 2.0
Ethernet 2x Gigabit (10/100/1000) Ports
Serial 1x RS-232
Weight 1.43kg (3.15lbs)
Dimensions With Mounting Bracket: 163.6mm x 146.1mm x 99.4mm (6.438" x 5.750" x 3.915"),
Without Mounting Bracket: 163.6mm x 108.0mm x 96.3mm (6.438" x 4.250" x 3.790")
Power requirements +9V to +36V

Environmental and physical specifications

Operating Temperature -20°C to +80°C (-4°F to +176°F)
Dust/moisture IP68
Design Rating DO-160G, MIL-STD-810G
Model Description
ESG501-21 Rosie Embedded System with NVIDIA® Jetson™ TX2 (North American Version)
ESG501-31 Rosie Embedded System with NVIDIA® Jetson™ TX2i (North American Version)
ESG501-22 Rosie Embedded System with NVIDIA® Jetson™ TX2 (Europe)
ESG501-32 Rosie Embedded System with NVIDIA® Jetson™ TX2i (Europe)
ESG501-01 Rosie Embedded System with NVIDIA® Jetson™ TX2/TX2i
ESG501-02 Rosie Embedded System with NVIDIA® Jetson™ TX2/TX2i (Europe)
ESG501-03 Rosie Embedded System with NVIDIA® Jetson™ TX2/TX2i (Israel)
ESG501‑04 Rosie Embedded System with NVIDIA® Jetson™ TX2/TX2i (Korea)
MSG056 Mounting brackets for ESG401/ESG501
MSG060 IP68 Accessory Kit
MSG061 Desktop Power Supply (24V DC Output, 90 ~ 264 VAC Input)
CBG219 Rosie External Power Cable
CBG220 Console Cable
