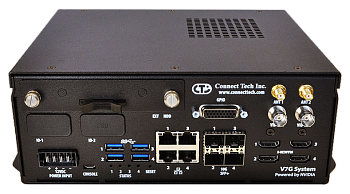

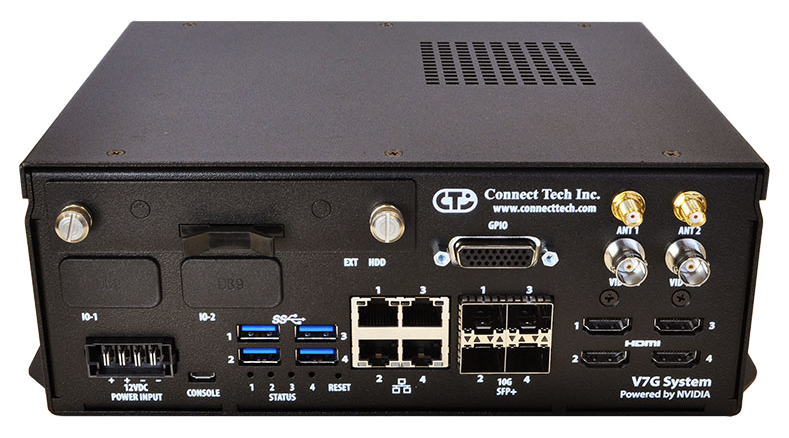

V7G GPU System
Small form factor embedded system
Vendor:Connect Tech
- Details
- Specification
- Order information
- CPU: Intel Xeon or Intel Atom
- Memory: 48GB DDR4
- GPU: NVIDIA Quadro or NVIDIA Tesla
- Mounting options: half-rack or standalone
The V7G GPU System from Connect Tech combines Intel® Xeon® D (Server Class) and Intel® Atom™ C3000×86 processors with high-end NVIDIA® Quadro® and Tesla® Graphics Processing Units (GPU) all into a small form factor embedded system. Choose from highest-end, highest-performance models or from low-powered models all ideal for high-end encode/decode video applications or GPGPU CUDA® processing, Deep Learning and Artificial Intelligence applications.
This embedded system exposes all of the latest generation interconnect including: 10GbE and Gigabit Ethernet, USB 3.0 and 2.0, HDMI, SATA III, GPIO, I2C, M.2, miniPCIe. The black aluminum enclosure has two mounting options: Half-rack rail mount or Standalone mounting brackets.
| Technical specifications | |
| CPU Module Options |
Intel Xeon D1577 (16 x 1.3 / 2.1 GHz, 24MB cache, 45 W) Intel Xeon D1559 (12 x 1.5 / 2.1 GHz, 18MB cache, 45 W) Intel Atom C3958 (16 x 2.0 / 2.0 GHz, 16MB cache, 31W) |
| Memory | 48GB DDR4 2400 MT/s ECC |
| GPU Module Options |
NVIDIA Quadro P5000 – (Pascal, 2048 CUDA Cores, 100W) NVIDIA Quadro P3000 – (Pascal, 1280 CUDA Cores, 75W) NVIDIA Tesla P6 – (Pascal, 2048 CUDA Cores, 90W, ECC) |
| Ethernet |
4x 1GBE / 1000BASE-T (RJ-45) 2x 10G (SFP+) (4x 10G model available with upcoming Denverton processor SKUs only) |
| Display | 4x HDMI 2.0 Type A (Only available on some models) |
| Video Input Options |
2x 3G-SDI Inputs 2x HDMI Inputs 16x Composite/Analog Inputs – NTSC/PAL 2x Camera Link Inputs (via mini PCIe or M.2) |
| USB | 4x USB 3.0 Type A Ports |
| Storage Expansion |
2x NVMe SSD Storage (Removable via bottom access panel) 1x 2.5” SATA SSD/Mech Storage (Removable via front panel drawer) |
| IO Expansion |
2x mini PCIe Slots (Accessible from removable access panel) 2x M.2 (Accessible from removable access panel) |
| GPIO |
4 inputs (3.3V/5V selectable) 4 outputs (3.3V/5V selectable) |
| Input Power | +12V Input Only |
| Misc |
Recessed Reset Button Status LEDs |
| Thermal Solution | Integrated Active Forced-air Thermal Solution |
| Mounting Options |
Half-rack Operation – Rackmount Rail Option Standalone Operation – Bottom Side Rail Option |
| Misc Mechanical Details |
Material: Aluminum Finish Color: Black Powder Coat |
| System Dimensions |
Half Rack Width, 2U Height Outer Dimensions without mounting rails installed: 9” x 3.5” x 7.125” (228.6mm x 88.9mm x 181.0mm) |
| Model | Description |
| ESG701 | Intel Xeon D1577, NVIDIA Quadro P5000, 4x HDMI Variant |
| ESG702 | Intel Xeon D1577, NVIDIA Quadro P3000, 4x HDMI Variant |
| ESG703 | Intel Xeon D1577, NVIDIA Tesla P6, No Display Output Variant |
| ESG704 | Intel Xeon D1559, NVIDIA Quadro P5000, 4x HDMI Variant |
| ESG705 | Intel Xeon D1559, NVIDIA Quadro P3000, 4x HDMI Variant |
| ESG706 | Intel Xeon D1559, NVIDIA Tesla P6, No Display Output Variant |
| ESG710 | Intel Atom C3958, NVIDIA Quadro P5000, 4x HDMI Variant |
| ESG711 | Intel Atom C3958, NVIDIA Quadro P3000, 4x HDMI Variant |
| ESG712 | Intel Atom C3958, NVIDIA Tesla P6, No Display Output Variant |
