ADG021
PCIe/104 to PCI Express Adapter Bottom Stacking Model
Vendor:Connect Tech
- Details
- Specification
- Order information
- PCIe/104 and PCI/104-Express compatible
- PCIe/104 156-pin top connector
- x16 lane vertical PCI Express card edge connector
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

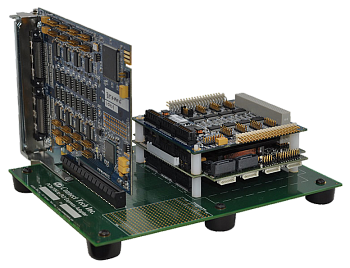

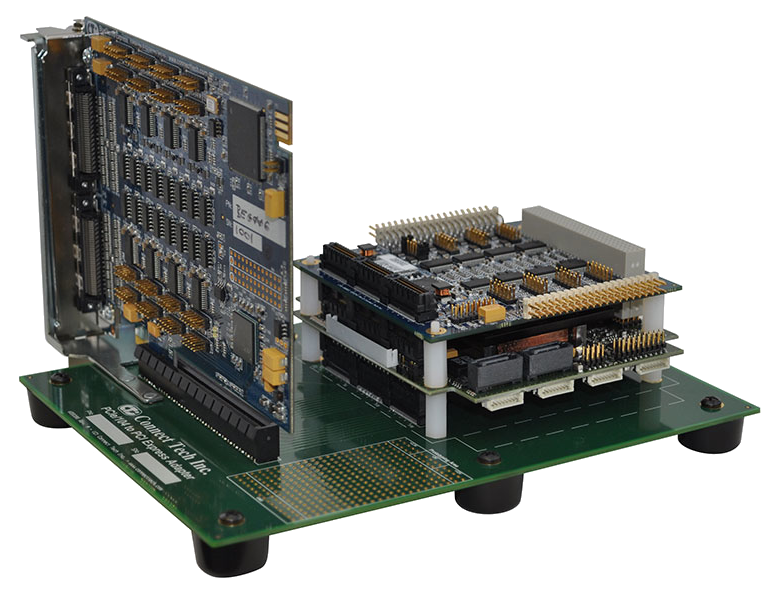

Connect Tech’s PCIe/104 to PCI Express Bottom Stacking adapter allows users to install any x1, x4, x8 or x16 lane PCI Express card into a PCIe/104 or PCI/104-Express stack down configuration.
This convenient adapter board enables the testing and development for standard PCI Express cards in the PCIe/104 or PCI/104-Express environment.
Standard Usage
This adapter supports any x1, x4, x8 or x16 lane PCI Express add-in card. Simply mount the PCI Express stack to the adapter and install the PCI Express card into the slot.
Once everything is connected, you may begin using the add-in card just as you would any other PCI/104-Express add-in card. No additional configuration is required.
| Technical specifications | |
| PCIe Lane Interconnect | All PCIe/104 lanes direct connect to PCI Express lanes |
| Auxiliary Signals |
Access to additional auxiliary PCIe/104 signals: – 2 Channels of USB, SMB signals, GPIO |
| Connectors |
Footprint for 2x USB Type B connectors, PCI-104/Express 156 pin top connector, x16 vertical PCI Express card edge connector (supports x1, x4, x8, x16) |
| Stability | Custom PCI Express metal support bracket |
| Dimensions | 193mm x 152mm (7.60" x 6.00") |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| ADG021 | PCIe/104 to PCI Express Adapter Bottom Stacking Model |
