M-Max HR 1U

Rugged 19/2” Conduction-Cooled Systems Family
  • Details
  • Specification
  • IP66-rated dust and moisture protection
  • Shock handling up to 40g, Vibration up to 2.5g
  • Power consumption: 3-21 W
  • Operating Temperature: up to -40 to +70 °C
  • Compatible M-Max platforms: 6XX LP, 7XX PR5, 7XX PR7, 8XX DT

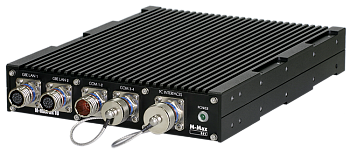

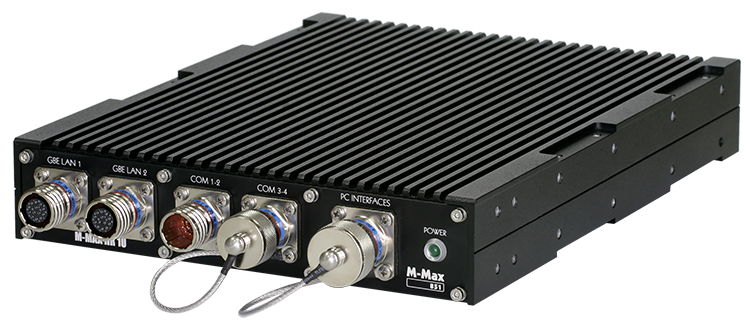

The M-Max HR 1U rugged industrial system provides reliable operation in tough environments.

The fully-ruggedized 19/2"-type aluminum chassis is fanless and uses natural convection and conduction cooling in accordance with MIL-STD-810 standards. Versatile mechanical design of the enclosure allows to combine several systems into one assembly side by side or by stacking, mount them on a flat surface or into a 19″ rack using appropriate mounting parts. COTS technology components allow configuring the system to comply with a wide variety of airborne, marine and ground vehicle applications.

The M-Max HR 1U system is compatible with the following M-Max platforms: 6XX LP, 7XX PR5, 7XX PR7, 8XX DT.

Technical specifications (depending on the chosen platform)
Compatible M-Max platforms:6XX LP
7XX PR5

7XX PR7

8XX DT
CPU options: ARM i.MX6 800 MHz 4 Cores / 4 Threads
Atom E3825 1.33 GHz 2 Cores / 2 Threads
Atom E3826 1.46 GHz 2 Cores / 2 Threads
Atom E3845 1.91 GHz 4 Cores / 4 Threads
i7-6600U 2.6 GHz 2 Cores / 4 Threads
RAM: 2-20 GB
GPU options: Vivante GC2000
HD 7th Gen. 533 MHz
HD 7th Gen. 533–667 / 542–792 MHz
HD 520 0.3–1.0 GHz
SSD options: mSATA 4 GB (soldered)
mSATA2 + SATA2 8 GB
mSATA3 + 2x SATA3 8 GB
Video options: VGA
VGA + HDMI
VGA + HDMI / DP
Audio options: 2x IN + 6x OUT + 2x Mic + SPDIF
2x IN + 2x OUT + 1x Mic
GbE: 1/2
USB 2.0: 2/4
USB 3.x: 1/4
RS-232/485: 2+2(lim.)
4(lim.)
DIO: 8/16
Connectors: Circular MIL-DTL-38999 connectors and Rugged Commercial connectors. All connectors are IP67
Power consumption: 3-21 W
Material:Aluminum
Cooling system:Natural convection and conduction cooling for inside modules;
Natural convection cooling for outside surfaces
Dimensions (W x H x L):8.66 x1.7 x 11.02 in (220 х 44 х 280 mm)
Enclosure weight (approx.):2.3 kg / 5.07 lbs

Environmental and physical specifications for typical system

Dust/Moisture:IP66
Operating Temperature:Up to -40 to +70°C depending on the chosen platform
Humidity:Operating: 5 to 95 % at +25°C, non-condensing
Vibration:Operating acceleration amplitude up to 2.5g
Shock:Maximum peak shock acceleration up to 40g
