Dual Port Mini PCIe GbE
Rugged, low cost Gigabit Ethernet Mini PCIe module
Vendor:Connect Tech
- Details
- Specification
- Order information
- 2x 10/100/1000 BASE-T Ports
- PCIe v2.0 (5.0 GT/s)
- Power Consumption: 3W
- Operating temperature: -40°C to +85°C (-40°F to +185°F) (max.)

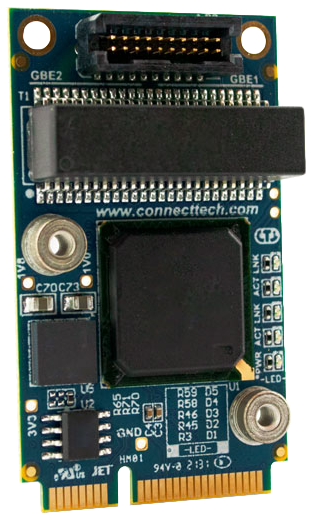

Connect Tech’s Dual Port Mini PCIe GbE board is a rugged, low cost Gigabit Ethernet Mini PCIe module. This board is ideal for adding extra Ethernet capabilities to any system with minimal increase in overall system size and power consumption.
The module utilize PCIe signaling which allows it to be used in any Mini PCIe socket that supports PCIe with available Z-height. The wide operating temperature, latching Ethernet connector, and cabling solution allows these modules to be used in harsh environments.
Compatibility with a large variety of popular operating systems allows these boards to be easily integrated into a wide array of new and existing systems.
| Technical specifications | |
| Ports | 2x 10/100/1000 BASE-T Ports |
| PCIe | PCIe v2.0 (5.0 GT/s) |
| Connectors | Samtec TFML 2×10, 1.27mm Vertical |
| Cables | CBG510, (Optional, not included) |
| LEDs | 2x Activity, 2x Link, POWER OK |
| Power Consumption | 3W |
| Dimensions |
50.95 mm x 30 mm Mini PCIe “Full” Height above board: • With CTI Thermals: 13mm • Without Thermals: 8.5mm |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) (Pending Thermal Validation) |
| Humidity | 5 to 95%, non-condensing |
| Model | Description |
| MPG110‑01 | Dual Port Mini PCIe GbE NIC w/ Vertical Connectors, with CTI Passive Thermal installed |
| CBG510 | 2x RJ-45 panel mount to 20-pin MiniTek w/Latch, 0.300 meters |
