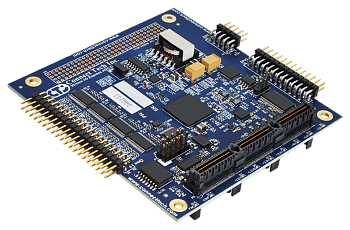

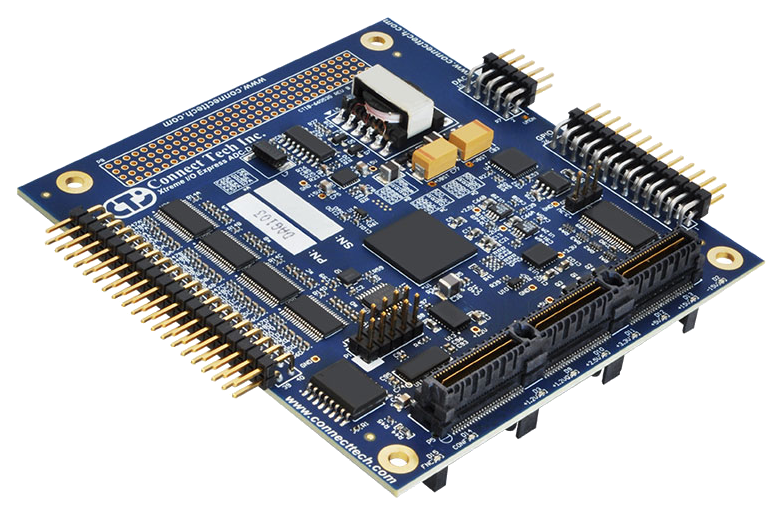

Xtreme I/O Express ADC‑DAC
PCIe/104 Analog and Digital Peripheral Board
Vendor:Connect Tech
- Details
- Specification
- Order information
- 32 single ended / 16 differential analog inputs
- 4 analog output channels
- 16-bit bi-directional digital I/O with selectable voltage ranges
- Operating temperature: -40°C to +85°C (-40°F to +185°F)
Connect Tech’s Xtreme I/O Express ADC-DAC is an analog and digital peripheral board for the PCIe/104 small form factor embedded market place. This product is ideal for data acquisition, measurement and control applications.
The Xtreme I/O Express ADC-DAC supports harsh environments with demanding conditions with an extended temperature range of −40°C to +85°C.
| Technical specifications | |
|
Analog Inputs |
|
|---|---|
| Channels | 32 Single Ended, split into 4 groups of 8 |
| Resolution | 16-bit |
| Sampling Rate |
500 Ksps (per channel) 62.5 Ksps (per group) |
| Sample & Hold | N/A |
| Protection | ±20V |
| Impedance | 1 MΩ |
| Ranges |
Bipolar: ±10.24V, ±5.12V and ±2.56V Unipolar: 0 - 10.24V and 0 - 5.12V |
| Accuracy | DNL: ±0.5 LSB, INL; ±0.75 |
| Signal-to-Noise Ratio | 92 dB; TDH: -102 dB |
|
Analog Outputs |
|
| Channels | 4 |
| Resolution | 16-bit |
| Settling Time | 6 µs |
| Ranges |
Unipolar: 0V to 15V Bipolar: ±10V |
| Accuracy | 1LSB INL and DNL |
| Drive | ±3mA |
|
Digital I/O |
|
| I/O | 16-bit bidirectional I/O |
| Input/Output Ranges | Hardware selectable +3.3V or +5V(TTL/CMOS) |
| High Current | 24mA |
| Compatibility | PCIe/104 |
| Dimensions | PC/104 compliant: 95.885mm x 90.17mm (3.775" x 3.550") |
| Operating System | Linux, Windows |
|
Environmental and physical specifications |
|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| DAG103 | Xtreme I/O Express ADC-DAC, Analog Inputs: 16-bit 32 SE, Analog Outputs: 16-bit 4 Channels, GPIO: 16-bits |
| DAG104 | Xtreme I/O Express ADC-DAC, Analog Inputs: 16-bit 32 SE, Analog Outputs: none, GPIO: 16-bits |
| DAG106 | Xtreme I/O Express ADC-DAC, Analog Inputs: 16-bit 32 SE, Analog Outputs: 16-bit 4 Channels, GPIO: 16-bits, Humiseal 1B31 Conformal Coating |
| CBG001 | 26 pin header to 1 x DB-25 female for GPIO |
| CAG8104 | 40 pin header to 4 x DB-9 Male for ADC |
| CAG104 | 10 pin header to 1 x DB-9 male connector for DAC |
