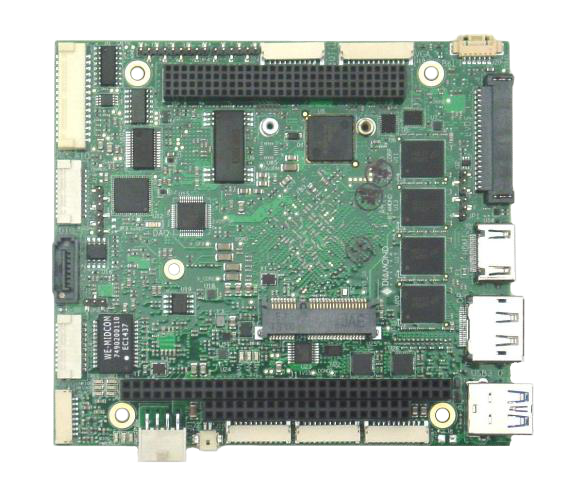

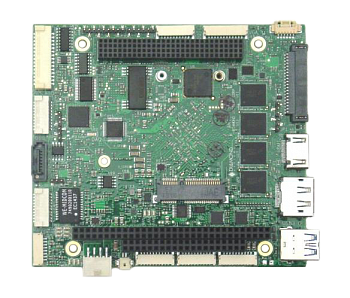

Aries SBC

PC/104-Plus SBC with Intel E3800 CPU, On-Board Data Acquisition & PCIe MiniCard I/O Expansion
  • Details
  • Specification
  • Order information
  • Processor: 1.91GHz Intel quad core E3845 CPU or 1.46GHz Intel dual core E3826 CPU
  • Memory: 2GB or 4GB on-board DDR3 SDRAM
  • Operating Temperature: -40ºC to +85ºC
  • Operating Humidity: 0-90% non-condensing
Aries is a compact, rugged, single board computer that features the Intel E3800 Bay Trail processor to deliver an unmatched combination of performance, price and power consumption. Packed with real-world features, Aries provides a complete solution for most embedded applications in a single board, saving space, time, and money. Aries goes beyond the standard processor and I/O features found on other Bay Trail SBCs to provide rugged performance along with a professional-quality data acquisition circuit supported by industry-leading software. The full rectangular shape provides more coastline for I/O connectors than other boards its size. In this compact form factor, Aries includes a wide range of I/O plus data acquisition functionality, meeting the majority of today’s connectivity requirements in a single board.

Choice of CPUs
1.91GHz Intel quad core E3845 CPU
1.46GHz Intel dual core E3826 CPU

The family of Aries SBCs combine excellent CPU performance, a wide range of PC I/O, and integrated high quality data acquisition circuitry into the compact PC/104-Plus form factor at a competitive price.

Available PC I/O includes USB 2.0/3.0, RS-232/422/485, dual Gigabit Ethernet, SATA ports. The data acquisition circuit includes 16 16-bit analog inputs, 4 16-bit analog outputs, 22 digital I/O lines, pulse width modulators, and counter/timers.

Aries supports stackable I/O expansion with PC/104-Plus (ISA + PCI) I/O modules. Aries also provides a dual-use PCIe MiniCard / mSATA socket for additional I/O expansion. I/O modules featuring WiFi, Ethernet, analog I/O, digital I/O, and CAN are available in the PCIe MiniCard form factor, providing compact expandability without increasing the total height of the system.

The Aries SBC was designed with rugged applications in mind. With an operating temperature of −40°C to +85°C, soldered on-board memory, integrated heat spreader for efficient cooling, 50% thicker PCB for increased rigidity and long term reliability, and full suite of latching connectors, Aries is the perfect choice for vehicle and other harsh environment applications.

Software Support

Aries SBCs run Linux, Windows Embedded Standard 7, and Windows Embedded CE. Both Linux and Windows Embedded 7 Software Development Kits are available with bootable images and drivers to get you started on your design project right out of the box.

Data Acquisition

The Aries SBCs include a complete analog and digital data acquisition circuit integrated onto the board. The analog section includes 16 16-bit analog input channels and a 2048-sample FIFO with programmable input ranges and a maximum sampling rate of 250KHz. There are 4 16-bit analog outputs with programmable voltage and current output ranges. 22 programmable digital I/O lines are provided as well as 8 32-bit counter/timers, 4 24-bit pulse width modulators, and a waveform generator.

All data acquisition features are supported by Diamond’s free, best-in-class Universal Driver programming software which simplifies application development. Intuitive, easy-to-use graphical control panels make programming all of the data acquisition features fast and simple.

Block Diagram

Aries SBC Block Diagram


Aries Development Kits

The Aries Development Kits provide all the components you need for fast and efficient embedded development. The kit includes the 1.91GHz Aries SBC with 4GB DRAM and integrated data acquition, cable kit (CK-ARS-01), power adapter cable, a 16GB mSATA flashdisk with Linux pre-loaded, and a software CD with Linux drivers.

A Linux software development kit (SDK-ARS-LNX) is also available. This kit contains a 16GB flashdisk with a bootable Linux image and a CD with a backup copy of the image plus Linux software development tools.

Aries Cable Kit

The Aries cable kit (CK-ARS-01T) includes cables for most of Aries’ on-board I/O. Many cables are also available individually.

Number Qty Cable Description
1 2 6980500 Dual serial cable
2 1 6980501 Digital I/O cable
3 1 6980503 Dual USB cable
4 1 6980504 Analog I/O cable
5 1 6980507 Analog I/O cable
6 1 6980508 Audio cable
7 1 6980511 Battery cable
8 1 6980512 Power cable
9 2 6980513 Ethernet cable
10 1 6980514 Utility cable



Technical specifications
Processor1.91GHz Intel quad core E3845 CPU
1.46GHz Intel dual core E3826 CPU
Memory2GB or 4GB on-board DDR3 SDRAM
BIOSAMI PnP Flash BIOS
Mass Storage 1 SATA port, supports 1 device
mSATA flashdisk socket supports up to 64GB
Serial4 RS-232/422/485 ports
USB3 USB 2.0 ports & 1 USB 3.0 port
Networking2 Gigabit Ethernet ports
Keyboard/MouseUSB keyboard/mouse
DisplayDual independent displays for any two of the following:
24-bit LVDS LCD flat panel interface
VGA CRT interface
DisplayPort or HDMI (cannot be used simultaneously)
AudioALC892 Codec HD audio with stereo line-out, line-in & microphone
Watchdog timerProgrammable timeout from 0 to 255 seconds
Analog Inputs16 single-ended or 8 differential, user selectable
A/D Resolution16 bits
Input ranges±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V programmable
Max Sample Rate250KHz
Protection±35V on any analog input without damage
Nonlinearity±3LSB, no missing codes
On-board FIFO2048 samples, programmable threshold
A/D and D/A CalibrationAutocalibration with software support
Analog Outputs4, 16-bit resolution
Output ranges±5V, ±10V, 0-5V, 0-10V, 0-20mA, 4-20mA, 0-24mA programmable
Input impedance 10^13 ohms
Output current±5mA max per channel
Settling time10µS max to 0.012%
Relative accuracy±2 LSB
Nonlinearity±2 LSB, monotonic
ResetReset to zero-scale or mid-scale (jumper selectable)
Digital I/O lines22 programmable direction
Input voltageLogic 0: 0V min, 0.8V max
Logic 1: 2.0V min, 5.5V max
Input current1µA at 3.3V, -5µA at 0V
Output voltageLogic 0: 0.0V min, 0.55V max
Logic 1: 2.0V min, 3.3V max
Output currentLogic 0: 64mA max at 0.55V
Logic 1: 32mA max at 2V
Waveform generatorProgrammable
Pulse width modulators8 programmable
Counter/timers8 programmable
Expansion BusesPC/104-Plus (ISA + PCI) stackable I/O
PCIe MiniCard 1 socket
Power Input+5VDC +-5%
Power ConsumptionE3845 CPU: 10W
E3826 CPU: 7W
Form FactorPC/104-Plus
Dimensions4.5 x 4.0 in. (114 x 102 mm)
Environmental and physical specifications
Operating Temperature-40ºC to +85ºC (-40ºF to +185ºF)
Operating Humidity0-90% non-condensing
ShockMIL-STD-202G compatible
VibrationMIL-STD-202G compatible
RoHSCompliant
Model Description
ARS3845-4GA  Aries SBC, 1.91GHz E3845 CPU, 4GB DDR3 SDRAM, data acquisition
ARS3845-4GN  Aries SBC, 1.91GHz E3845 CPU, 4GB DDR3 SDRAM, no data acquisition
ARS3826-2GA  Aries SBC, 1.46GHz E3826 CPU, 2GB DDR3 SDRAM, data acquisition
ARS3826-2GN  Aries SBC, 1.46GHz E3826 CPU, 2GB DDR3 SDRAM, no data acquisition
DK-ARS-WE10-64  ARIES Dev Kit, ARS3845-4GA with WinEmb10, 64 bit BSP
DK-ARS-WE7  ARIES Dev Kit, ARS3845-4GA with WinEmb7 BSP
DK-ARS-LNX  ARIES Dev Kit, ARS3845-4GA with Linux BSP
SDK-ARS-WE7  ARIES Windows Embedded 7 Software Development Kit
SDK-ARS-LNX  Aries Linux 3.1 Software Development Kit
CK-ARS-03  Aries Cable Kit
FDMM-64G-XT  mSATA MLC Flashdisk, 64GB, extended temperature
FDMM-32G-XT  mSATA MLC Flashdisk, 32GB, extended temperature
FDMM-16G-XT  mSATA MLC Flashdisk, 16GB, extended temperature
FDMS-64G-XT  mSATA SLC Flashdisk, 64GB, extended temperature
FDMS-32G-XT  mSATA SLC Flashdisk, 32GB, extended temperature
FDMS-16G-XT  mSATA SLC Flashdisk, 16GB, extended temperature
FDMS-8G-XT  mSATA SLC Flashdisk, 8GB, extended temperature
