M-Max V75 chassis

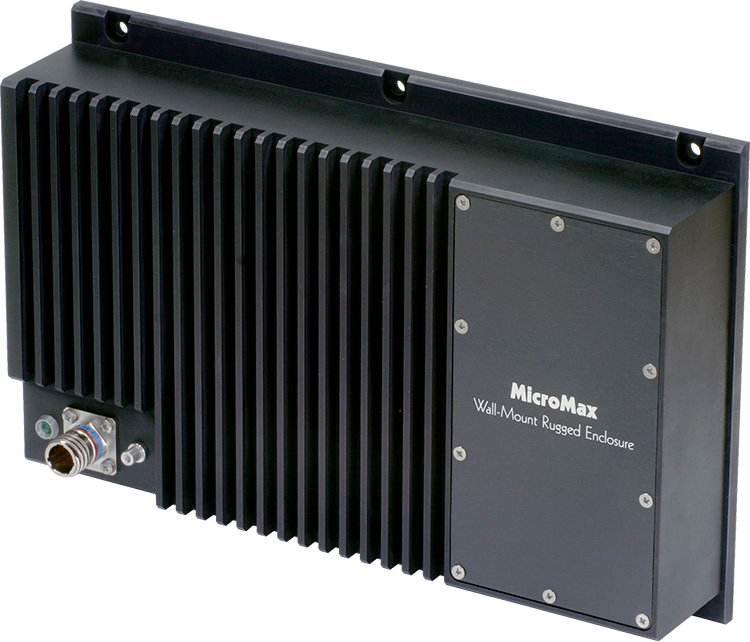

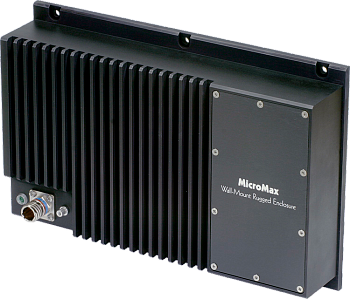

Rugged VITA 75-compliant Conduction-cooled Enclosure
  • Details
  • Specification
  • Dissipates up to 55 W of power using only passive cooling
  • Shock handling up to 40g, Vibration up to 2.5g
  • IP66 rated dust and moisture protection
  • Operating temperature from -40 to +65 °C

The M-Max V75 chassis, designed according to the VITA 75 footprint, is a fully sealed rugged enclosure with passive cooling, providing reliable operation in tough environments including transportation (ground, rail, air and marine), agriculture, mining and processing.

The machine-worked aluminum chassis is especially designed for the most challenging environments. Providing excellent shock and vibration protection, the completely fanless chassis uses natural convection and conduction cooling. Typical systems housed in this VITA 75-compliant enclosure deliver IP66 dust and moisture protection, withstand shocks up to 40g and vibration up to 2.5g.

The fully sealed enclosure houses up to two PC/104 or similar-sized boards. The configurable front panel can be outfitted with a variety of customer-defined connectors.

The M-Max V75 chassis is tested and guaranteed over temperature range of −40 to +65°C. The embedded power supply complies with MIL-STD-704F specification.

MicroMax, as a manufacturer of ruggedized industrial computers, takes a customized approach to each client. Our engineering group can design M-Max systems to fit customer-specific technical requirements.

Technical specifications
Material: Aluminum T6061
Heat dissipation: 55W
Cooling system: Natural convection and conduction cooling for inside modules;
Natural convection cooling for outside surfaces
Capacity: Up to two PC/104 or similar boards
Connectors: 1x D38999 (Power)
Power subsystem: Provides: +5 V @ 8 A, +12 V @ 5 A, +3.3 V @ 1 A
Power: +9 to +36 V DC (isolated) or
+18 to +75 V DC (isolated)
Complies with MIL-STD-704F
AC adapter ~100 to 240 V (optional)
Mechanical (W x H x L): 11.2 x 2.28 x 7.4 in (284.48 x 57.8 x 188 mm)
VITA 75 footprint (8 x 14 VU) (without end caps and connectors)
Weight (approx.): 2030 g / 4.48 lbs

Environmental and physical specifications for typical systems

Dust/Moisture: IP66
Operating Temperature: -40 to +60 °C @ 55W
Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
Vibration Operating acceleration amplitude up to 2.5g
Shock: Maximum peak shock acceleration up to 40g
