M-Max ATR-chassis

Rugged ATR-chassis
  • Details
  • Specification
  • IP66-rated dust and moisture protection
  • Shock handling up to 40g, vibration up to 2.5g
  • Dissipates up to 95 W of power, using only passive cooling
  • Operating Temperature: -40 to +60 °C @ 60W

The M-Max ATR-compliant chassis is a fully sealed rugged enclosure with passive cooling, providing extreme physical protection for high performance systems. The machine-worked aluminum chassis is especially designed for the most challenging environments.

The ATR-compliant enclosure excels in critical applications needing to operate under extreme temperatures, dust and humidity. Providing excellent shock and vibration protection, the completely fanless chassis uses natural convection and conduction cooling. Typical systems housed in this ATR-compliant enclosure deliver IP66 dust and moisture protection, withstand shocks up to 40g and vibration up to 2.5g.

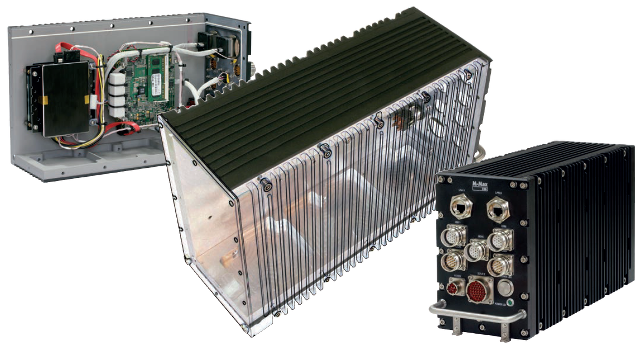

The fully sealed enclosure houses up to 8 PC/104 or similar-sized boards. The configurable front panel can be outfitted with variety of customer-defined connectors.

Technical specifications
Available versions: 1/2 ATR Short

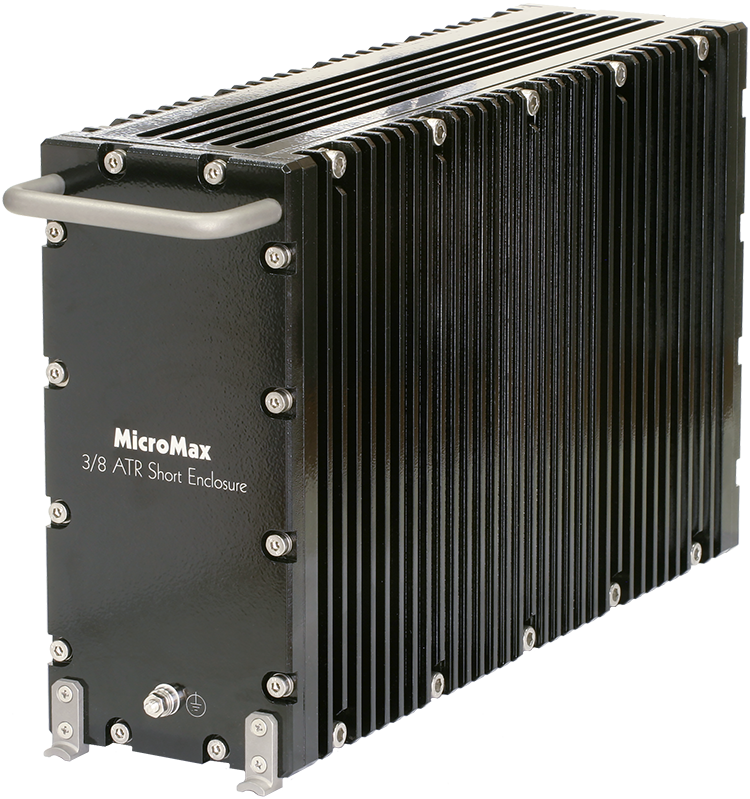

3/8 ATR Short
Material: Aluminum T6061
Heat dissipation: 95W (1/2 ATR Short)
90W (3/8 ATR Short)
Cooling system: Natural convection and conduction cooling for inside modules;
Natural convection cooling for outside surfaces
Mechanical (W x L x H): 4.88 x 7.74 x 13.97 in / 124 х 196.6 х 354.9 mm (1/2 ATR Short per ARINC 404A)
3.56 x 7.74 x 13.97 in / 90.4 х 196.6 х 354.9 mm (3/8 ATR Short per ARINC 404A)
Capacity: Up to 8 PC/104 or similar boards (1/2 ATR Short)
Up to 6 PC/104 or similar boards (3/8 ATR Short)
Weight: 9.81 lbs / 4.45 kg (1/2 ATR Short)
9.97 lbs / 4.52 kg (3/8 ATR Short)

Environmental and physical specifications for typical system

Dust/Moisture: IP66
Operating Temperature: -40 to +60 °C @ 60W
Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
Vibration: Operating acceleration amplitude up to 2.5g
Shock: Maximum peak shock acceleration up to 40g (15 ms)
