Artificial Intelligence (AI) technologies are being adopted globally by all industries to drive efficiency, improve productivity and reduce costs. The rail industry is no exception. Fueled by intelligence from AI-driven systems and applications, railway operations are becoming safer, smarter and more reliable, significantly enhancing passenger travel experience and freight logistics services. For rail transportation, AI can provide improvements including fast and convenient ticket-free check-in to accurate arrival-time predictions, personalized infotainment and onboard services, real-time track heath diagnostics, and rapid response in an emergency.
These AI-driven applications only function with proper data input that is collected by massive numbers of Internet of Things (IoT) devices installed in stations, on trains, and along tracks. A successful implementation of such rail applications requires a seamless integration of AI and IoT technologies. By leveraging more than 20 years of expertise in developing highly reliable and available embedded computing systems, ADLINK brings advanced AIoT (AI and IoT) solutions to rail transportation, enabling customers in developing a variety of applications that can deliver true value and performance. ADLINK is committed to helping customers gain competitive advantages by allowing them to focus their development efforts on differentiating their end applications.

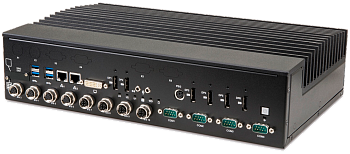

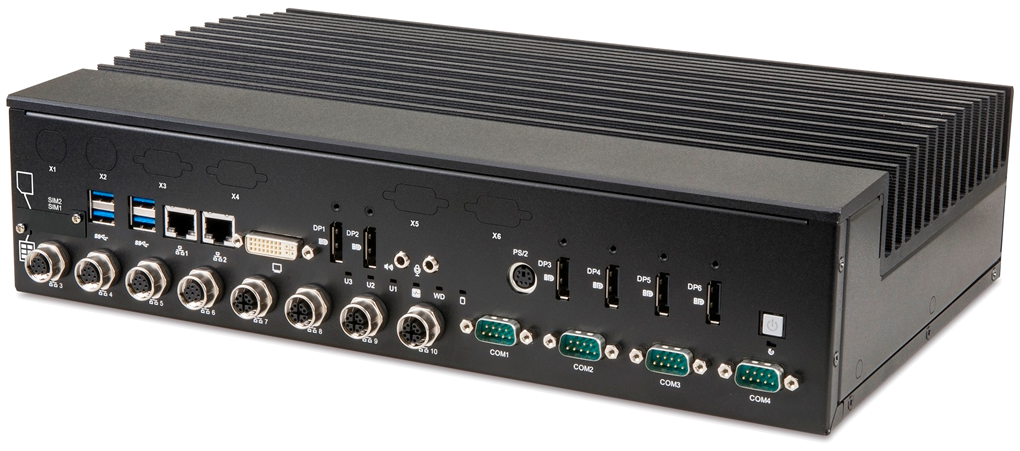

Powered by an Intel Core i7 processor and integrated NVIDIA Quadro MXM module, ADLINK’s EN50155 certified AVA-5500 AIoT Platform is not only ruggedized for both wayside and onboard deployment with its wide range DC input and isolated I/O design, but also provides an ideal edge solution for real-time video/graphics analysis applications that are vital to today’s increasingly complex railroad operations.
The target applications include but are not limited to:
ADLINK’s AVA-5500 is being tested and deployed commercially by leading rail system integrators worldwide. In one application, the intelligent platform is installed on special rail inspection trains to process captured images of key wayside equipment in real-time. With a sophisticated algorithm driven by parallel computing and deep learning, the application can effectively identify potential equipment faults at a train speed of 120km/h, and raise the alarm to notify maintenance crews. In another application, the AVA-5500 is used in a train station control office to analyze the real-time video stream received from the platform. The application is able to not only detect suspicious behaviors and trigger alerts, but also conduct post-event analysis.
To meet varying application requirements, the AVA-5500 is also available in variants featuring an additional two USB 2.0 via M12 connectors and two 2.5″ SATA 6Gb/s drive bays, as well as a version supporting +12VDC power input only.
ADLINK’s AVA-5500 can also be deployed for AI-enabled surveillance and video/graphics processing applications in a variety of adjacent markets including mil/aero, public safety, energy and industrial automation.
Technical specifications | |
Processor |
6th/7th Gen Intel Core i7 processors (formerly Skylake and Kaby Lake) Intel Core i7-6820EQ CPU, 2.8 GHz Intel Core i7-7820EQ CPU, 3.0 GHz |
Memory | Dual channel DDR4-2133 SDRAM with dual SODIMM sockets, up to 32GB |
BIOS | AMI UEFI |
Storage |
Up to 4x 2.5” SATA drive bays (two for AVA-5500 series, four for AVA-5510 series) 1x CFast slot, externally accessible 1x M.2 2280 (SATA) |
Graphics |
2x DisplayPort from Intel processor 4x DisplayPort with lockable design from GPU MXM (SKU dependent) 1x DVI-I from Intel processor |
Ethernet |
2x RJ-45 1000BASE-T Ethernet ports 4x M12 X-coded 1000BASE-T Ethernet ports with PoE Class 2 (7W), 1.5kV isolation 4x M12 A-coded 1000BASE-T Ethernet ports, 1.5kV isolation |
USB |
4x USB 3.0 Type A ports Additional 2x M12 USB ports in AVA-5510 series |
Serial Port |
4x DB-9 RS-232/422/485 ports (RS-422 by default) 2kVrms isolation |
Digital I/O (optional) |
4x isolated DI and 4x isolated DO via two DB-9 connectors, supported by add-on module (occupies one 2.5” drive space) DI: 0-24V input voltage with 1500VDC isolation DO: 3.3V-35VDC output voltage, 250mA/ch sink current, 1500VDC isolation |
Audio | Mic-in/ Line-out ports |
CAN/MVB | Supported by Mini PCIe card with two DB-9 outputs |
Wireless |
2x Mini PCIe card slots are available for cellular modem or WLAN modules Compliant to Mini PCIe card spec v1.2 (PCIe and USB 2.0) Each Mini PCIe slot supports one micro-SIM 4x RP-SMA antenna connector cutouts |
In-system Expansion I/O |
2x full size Mini PCI Express slots 1x Type A/B MXM slot on PCI Express x16 (P1000, P3000) 1x USB 2.0 wafer connector |
External I/O |
2x USIM slots 4x M12 GbE with PoE ports 4x M12 GbE ports 2x RJ-45 GbE ports 6x DisplayPorts 1x DVI-I port 4x USB 3.0 Type A ports 2x M12 USB 2.0 ports (in AVA-5510) 2x DB-9 connectors reserved for MVB or CAN Mini PCIe module 1x Mic-in port 1x Line-out port Four antenna cutouts reserved Reset button Power button |
LEDs | 1x diagonostics, 1x storage, 1x WDT, 3x user defined |
Battery | Coin cell CR2032 (change to rechargeable golden cap by request) |
Board Management |
ADLINK SEMA 3.0: Watch Dog Hardware monitor Runtime statistics Failsafe dual BIOS |
Power Supply |
One 4-pin S-coded M12 connector +24V/+36V/+72V/+110VDC nominal power input (16.8V to 137.5V, EN50155 compliant) |
Power Consumption |
149W on AVA-5500/6820/8G/P1000; 158W on AVA-5500/6820/8G/P3000 at 1. +24VDC in 2. CPU 100% loading 3. P1000 or P3000 100% loading |
Dimension (WxDxH) |
360mm x 225.1mm x 88.8mm (for AVA-5500) 360mm x 225.1mm x 105.4mm (for AVA-5510) |
Weight | 6.3 kg |
Mounting | Wall mount |
Operating System | Windows 8, Windows 10, Ubuntu 16.04 |
Environmental and physical specifications |
|
---|---|
Operating temperature |
Convection cooled Class OT1: -25°C to 55°C with P3000 MXM module (supported by condition) Class OT3: -25°C to 70°C with P1000 MXM module |
Storage temperature | -40°C to +85°C |
Humidity | EN 50125-1, compliance EN 60068-2-78: 2012 Edition 2.0, Clause 4.2 at 40°C |
Shock | EN50155 standard, method EN61373: 2010, Category 1 Class A & Class B |
Vibration | EN50155 standard, method EN61373: 2010, Category 1 Class B |
Safety |
EN 50153 EN50124-1 |
Fire Protection | EN 45545-2:2013+A1:2015 |
EMC |
EN 50121-3-2 EN50155 |
Model | Description |
AVA‑5500/6820/16G/P3000/DIO | Fan-less railway computer with Intel Core i7-6820EQ, 16GB DDR4 RAM, EGX-MXM-P3000 integrated, and 4x DIO board |
AVA-5500/6820/32G/P3000 | Fan-less railway computer with Intel Core i7-6820EQ, 32GB DDR4 RAM and EGX-MXM-P3000 integrated |
AVA-5500/7820/16G | Fanless railway computer with Intel Core i7-7820EQ, 16GB, DDR4 RAM and MXM slot |
AVA-5520/6820/32G/P5000/S256 | Fan-less railway computer with Intel Core i7-6820EQ, 32G DDR4, EGX-MXM-5000 integrated, SSD 256G, without PW-200 DC module |
AVA-5600TCT/6820/16G | 2U 19" rackmount Fanless railway computer with Intel Core i7-6820EQ, 16GB DDR4 and MXM, PC/104 module options, M12 DC cable included |
AVA-5500/6820/16G,CC | Fanless railway computer with Intel Core i7-6820EQ, 16GB, DDR4 RAM and MXM slot, Conformal Coating |
AVA-5500/6820/16G | Fanless railway computer with Intel Core i7-6820EQ, 16GB, DDR4 RAM and MXM slot |
AVA-5500/6820/32G | Fanless railway computer with Intel Core i7-6820EQ, 32GB, DDR4 RAM and MXM slot |
AVA-5500/6820/16G/P1000,CC | Fan-less railway computer with Intel Core i7-6820EQ, 16GB DDR4 RAM and EGX-MXM-P1000 integrated, Conformal Coating |
AVA-5500/6820/16G/P1000 | Fan-less railway computer with Intel Core i7-6820EQ, 16GB DDR4 RAM and EGX-MXM-P1000 integrated |
AVA-5500/6820/32G/P1000,CC | Fan-less railway computer with Intel Core i7-6820EQ, 32GB DDR4 RAM and EGX-MXM-P1000 integrated, Conformal Coating |
AVA-5500/6820/16G/P3000 | Fan-less railway computer with Intel Core i7-6820EQ, 16GB DDR4 RAM and EGX-MXM-P3000 integrated |
AVA-5500TCT/6820/16G/1050Ti | Fanless railway computer with Intel Core i7-6820EQ, 16GB DDR4 and GTX1050Ti MXM, M12 DC cable included |
AVA-5510/6820/32G/P3000,CC | Fanless railway computer with Intel Core i7-6820EQ and 32GB, DDR4 with P3000 MXM module and conformal coating |
AVA-5500/6820/16G/P3000/CAN,CC | Fanless railway computer with Intel Core i7-6820EQ, 16GB DDR4, Nividia P3000 MXM module and CAN bus module integrated, with conformal coating |
AVA-5500/6820/16G/P3000/CAN | Fanless railway computer with Intel Core i7-6820EQ, 16GB DDR4, Nividia P3000 MXM module and CAN bus module integrated |
AVA-5520/6820/16G/P3000 | Fan-less railway computer with Intel Core i7-6820EQ, 16G DDR4, P3000 MXM without PW-200 DC module |
AVA-5520/7820/32G/P5000/S256 | Fan-less railway computer with Intel Core i7-7820EQ, 32G DDR4, EGX-MXM-5000 integrated, SSD 256G, without PW-200 DC module |
AVA-5520/7820/32G/P3000 | Fan-less railway computer with Intel Core i7-7820EQ, 32G DDR4, EGX-MXM-3000 integrated, without PW-200 DC module |
Starter cable kit for AVA-5500 | Starter cable kit for AVA-5500 |
AVA-5500 mPCIe CAN Bus Kit | AVA-5500 mPCIe CAN Bus Kit |
AVA-5500 mPCIe Cellular Kit-EU | AVA-5500 mPCIe Cellular Kit-EU |
500.4W, Power Supply, Enclosed, 1U | Dimension(L x W x H) : 230 X 127 X 40.5mm, Input Voltage: 100-264VAC, Output Voltage: 12Vdc, Output Current: 41.7A, Frequency: 47-63Hz, Efficiency: 88% Typical @ 230VAC and Full load, Operating Temperature: -30-50°C |
(PHB)240W, Adapter | Dimension(L x W x H) : 204 X 87.6 X 41.5mm, Input Voltage: 100-240VAC, Output Voltage: 12Vdc, Output Current: 20A, Frequency: 50-60Hz, Efficiency: DOE VI, CoC Ver5 Tier2, Operating Temperature: 0-40°C |
AVA-5500 mPCIe Cellular Kit-US | AVA-5500 mPCIe Cellular Kit-US |
AVA-5520 AC-DC adapter kit | PIS-5520 AC-DC adapter kit FSP270-RHAN3 adapter and M12(S) to 8P MF EXT cable |
AVA-5520 AC-DC power supply kit | PIS-5520 AC-DC power supply kit RSP-500-12 enclosed power supply and M12(S) to DC power cable |
AVA-5500 mPCIe Card WiFi/BT Kit | AVA-5500 mPCIe Card WiFi/BT Kit |
