M-Max 800 EP2/FL

Flexible high performance platform M-Max 800 EP2/FL
  • Details
  • Specification
  • Intel Core i7 2.8 GHz
  • Shock handling up to 40g, Vibration up to 6g
  • IP66 rated dust and moisture protection
  • Operating temperature from -40 to +65 °C

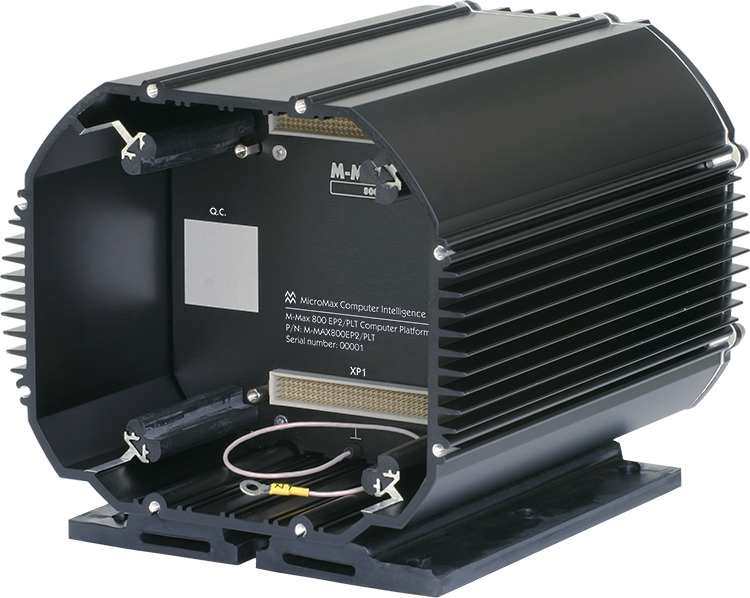

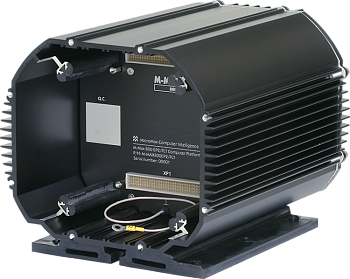

The flexible version of the high performance computer platform, M-Max 800 EP2/FL is based on successful deployment of M-Max 800 EP2/PLT. It is designed for rapid deployment of a complete customized system having more expansion I/O boards than M-Max 800 EP2/PLT.

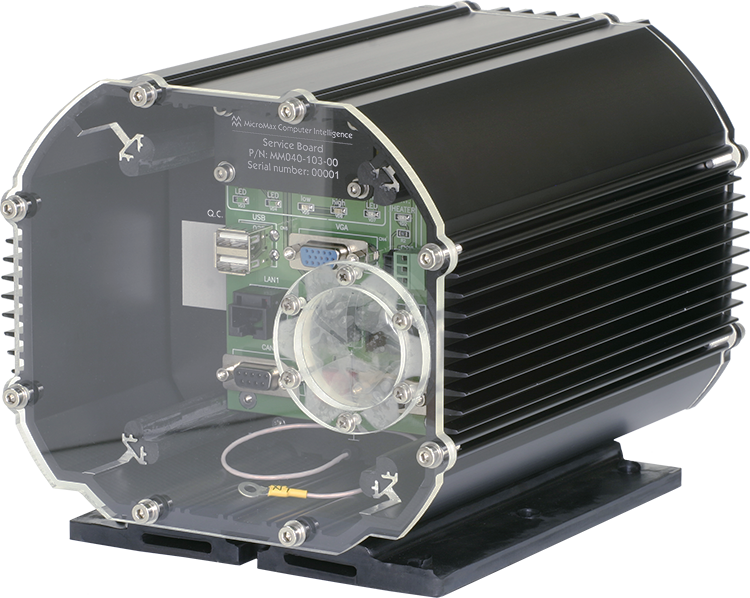

This platform can house up to 4 PCI-104 boards. The platform features Intel Dual Core i7 2.8 GHz CPU equipped with Gigabit Ethernet, 2x USB 2.0 and VGA interfaces. All the interfaces are accessible through a 120-pin connector or a service board having connectors for all installed interfaces and indicator options (optional). Special transparent front panel with a membrane window allows access to the connectors for visual monitoring of system operation during chamber testing.

The highlights of this computer and the most M-Max systems are: excellent shock and vibration resistance, ability to operate under extreme temperatures (-40°C to +65°C) and high dust and humidity (IP66 Rated). Data storage options include a variety of industrial SSDs with RAID functionality.
  • Show more
Technical specifications
CPU:Intel Core i7-3517UE (2.8 GHz, 4 MB L3 cache)
Chipset:Mobile Intel QM67 Express
RAM:2 GB DDR3 1600 MHz (soldered)
Expandable to 4 GB at the time of order
Data storage:SSD 8GB; Optional 2x SSD 1TB each as hardware RAID0/1
Video:Intel HD 4000 integrated controller,
hardware: MPEG2 coding,
JPEG & MPEG decoding
VGA supports analog displays with resolution up to 2048 x 1536 @ 75 Hz
Connectors (base platform):1x PCI-104
1x 120-pin I/O connector
Connectors:2x USB Type A
1x DB-15HS (Display)
1x 3-pin (Power)
1x RJ-45 (Ethernet)
LAN:1x 10/100/1000 Base-T
USB:2x USB 2.0
Power:+9 to +40 V DC (isolated)
AC adapter ~100 to 240 V (optional)
Special features:Watchdog timer
Power Consumption:25 W
Indication:Power input, Power ON, Diagnostic
Enclosure:Aluminum enclosure
Passive cooling system (no fans)
Mechanical (W x H x L):180 x 165 x 230 mm

Environmental and physical specifications

Operating Temperature:-40 to +65 °C, Complies with MIL-STD-810G (High temp. method 501.5, A1; Low temp. method 502.5, C1, Expandable to C2/C3)
Humidity:Operating: 5 to 95 % at +25 °C, non-condensing
VibrationOperating acceleration amplitude up to 6g (5-500 Hz)
Complies with MIL-STD-810G (Method 514.6 for Ground vehicles and Aircraft)
Shock:Maximum peak shock acceleration up to 40g (15 ms) Complies with MIL-STD-810G (Method 516.6 for Ground equipment and Aircraft)
  • Show more
