MVP-6100
Value Family 9th Generation Intel Xeon/Core i7/i5/i3 & 8th Gen Celeron Processor-Based Expandable Computer
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Intel Core/Xeon/Celeron processors
- Dual SODIMMs for up to 32GB DDR4 non-ECC/ECC memory
- Rich I/O and storage
- Operating temperature: -20°C to 60°C (max.)

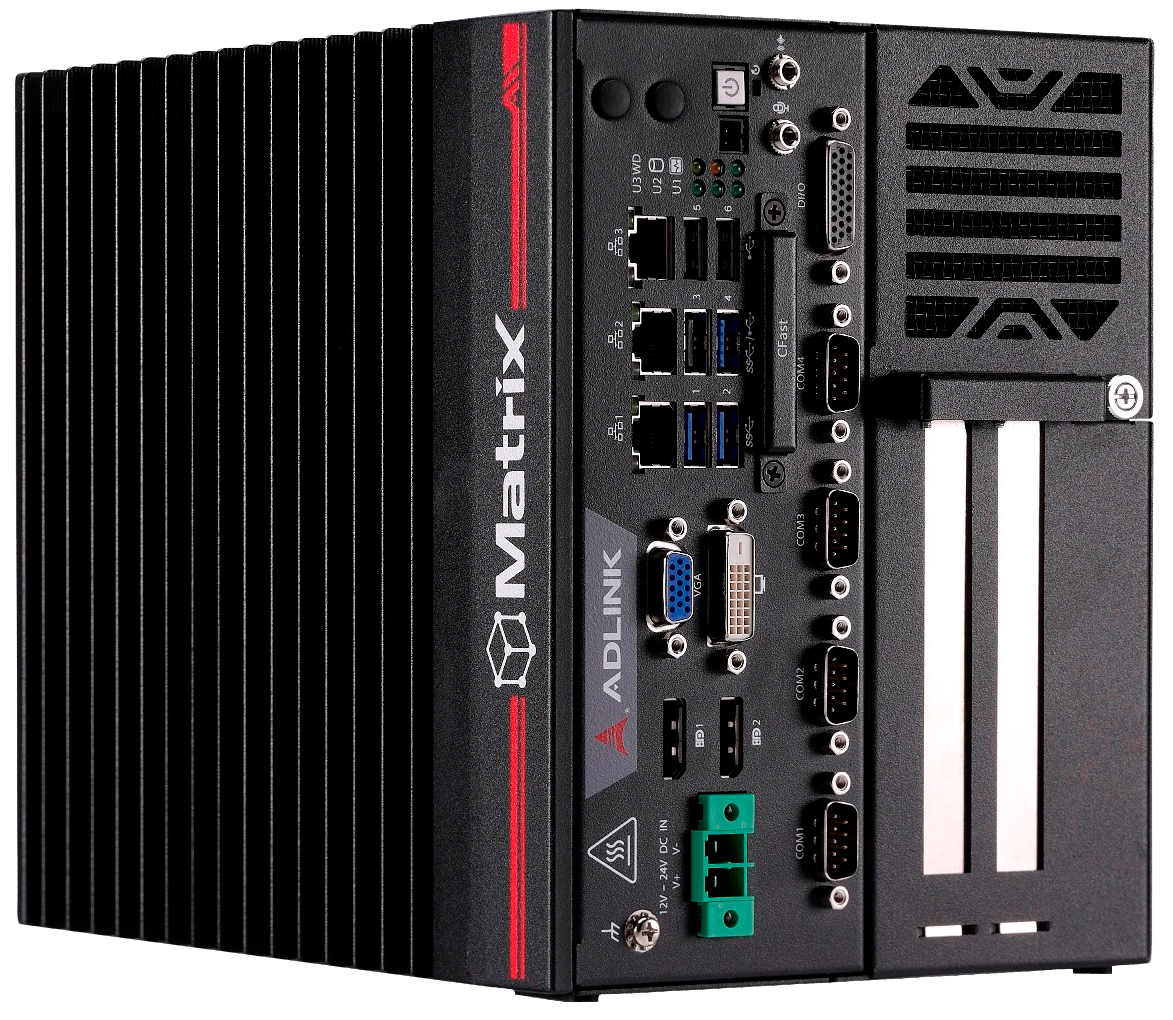

ADLINK’s MVP-6100 Series of value line fanless embedded computing platforms, incorporating Intel Core/Xeon/Celeron processors, provides one PCIe x16 and one PCI slot, one mini-PCIe slot and single-side access for I/O ports, optimizing easy maintenance in industrial automation environments. The series retains the robust design of all ADLINK MXC/MXE lines, at a new extremely cost-effective price point.
The MVP-6100 series supports DDR4 memory for more powerful computing and the Intel HD Graphics 630 speeds graphics performance. Along with a versatile I/O array and flexible expansion capacity, the MVP-6100 Series fully satisfies all the needs of industrial automation (IA) with the performance demanded by vision inspection, motion control, and surveillance applications.
Fanless construction not only overcomes contaminant and noise challenges presented by harsh IA environments, the elimination of problematic structural elements that negatively affect MTBF greatly increases lifecycle expectations for the platform.
| Technical specifications | |
|
System |
|
|---|---|
| Processor | Intel Xeon E-2278GE, 3.3 GHz/4.7 GHz, 8 cores, 80W TDP (MVP-612X-1E/MVP-614X-3E) Intel Core i7-9700E, 2.6 GHz/4.4 GHz, 8 cores, 65W TDP (MVP-612A-1E/MVP-614A-3E) Intel Core i7-9700TE, 1.8 GHz/3.8 GHz, 8 cores, 35W TDP (MVP-6121-1E/MVP-6141-3E) Intel Core i5-9500TE, 2.2 GHz/3.6 GHz, 6 cores, 35W TDP (MVP-6122-1E/MVP-6142-3E) Intel Core i3-9100TE, 2.2 GHz/3.2 GHz, 4 cores, 35W TDP (MVP-6123-1E/MVP-6143-3E) Intel Celeron G4900T, 2.9 GHz, 2 cores, 35W TDP (MVP-6124-1E/MVP-6144-3E) |
| Chipset |
MVP-6120 series: H310 (C246 for MVP-612X) MVP-6140 series: C246 |
| Memory |
4GB DDR4 non-ECC 2400 MHz, dual SODIMMs, up to 32GB (Optional: 4/8/16/32GB ECC, only for Intel Xeon/Core i3/Celeron w/ C246) |
|
I/O Interface |
|
| Display | 2x DP++ 1.2, DVI-D, VGA (dual independent displays w/ H310, 3 independent displays w/ C246) |
| Ethernet |
3x Intel GbE: 2x i211AT + i219 (Support Intel AMT/vPro w/ C246) |
| Serial Ports |
COM1/2: RS-232/422/485, COM3/4: RS-232 (Optional COM5/6: RS-232, shared w/ DI/O) |
| USB | 3x USB 3.1 Gen 1 + 3x USB 2.0, 1x internal USB 2.0 dongle (2x USB 3.1 up to Gen 2 w/ C246) |
| Audio | Line-out, Mic-in (Optional: speaker-out) |
| Mini PCIe | 1x Full size (USB 2.0 + PCIe) |
| M.2 | 1x socket 2, key B+M or B, 2280/3042 (USB3.1 + SATA III + PCIe x1. Up to PCIe x2 w/ C246) |
| USIM | 2 |
| DI/O | 8-CH DI and 8-CH DO |
| I2C | 2 (3.3V/5V) |
| TPM | TPM2.0 |
| Expansion Slots |
MVP-6120 series: PCIe x16 + PCI (total up to 150W) MVP-6140 series: PCIe x16 + 2 PCIe x4 + PCI (total up to 150W with 12V in; total up to 250W with 24V in) |
|
Storage Device |
|
| 2.5" SATA |
2x internal (RAID 0/1/5/10 support w/ C246) (Optional: additional 2x internal, w/ C246) |
| CFast | 1 Type II |
|
Mechanical |
|
| Dimension |
MVP-6120 series: 165 (W) x 240 (D) x 210 (H) mm (6.5" x 9.45" x 8.27") MVP-6140 series: 206 (W) x 240 (D) x 210 (H) mm (8.11" x 9.45" x 8.27") |
| Weight |
MVP-6120 series: 4.8 kg (10.6 lbs) MVP-6140 series: 5.1 kg (11.2 lbs) |
| Mounting | Wall mount |
| Fan | Optional |
|
Power Supply |
|
| DC Input | 12-24V (± 10% tolerance) |
| AC Input | Optional: 220W/280W AC/DC adapter |
|
Environmental and physical specifications |
|
| Operating Temperature |
Standard: (w/ air flow 0.6 m/s) 0°C to +50°C 0°C to +40°C for MVP-610X Extended: (w/ air flow 0.6 m/s & ind. storage) -20°C to +60°C -20°C to +40°C for MVP-610X -20°C to +50°C for MVP-610A |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) (excl. storage) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Vibration |
Operating: 5 Grms, random, 5-500 Hz, 3 axes (w/2.5" SSD/CFast, 3 Grms w/ fan) Operating: 0.5 Grms, random, 5-500 Hz, 3 axes (w/ HDD) |
| Shock | Operating: 50 G, half sine 11ms duration (w/ 2.5" SSD/CFast) |
| ESD | Contact +/-4KV, Air +/-8KV |
| EMC | EN61000-6-4/-2, CE & FCC Class A |
| Safety | UL/cUL, CB, CCC |
| Model | Description |
| MVP‑612X‑1E/M8G | Xeon E-2278GE, C246, PCIex16+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP‑612A‑1E/M8G | Core i7-9700E, H310, PCIex16+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP-6121-1E/M8G | Core i7-9700TE, H310, PCIex16+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP-6122-1E/M8G | Core i5-9500TE, H310, PCIex16+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP-6123-1E/M8G | Core i3-9100TE, H310, PCIex16+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP‑6124‑1E/M8G | Celeron G4900T, H310, PCIex16+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP‑614X‑3E/M8G | Xeon E-2278GE, C246, PCIex16+2xPCIex4+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP‑614A‑3E/M8G | Core i7-9700E, C246, PCIex16+2xPCIex4+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP-6141-3E/M8G | Core i7-9700TE, C246, PCIex16+2xPCIex4+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP-6142-3E/M8G | Core i5-9500TE, C246, PCIex16+2xPCIex4+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP-6143-3E/M8G | Core i3-9100TE, C246, PCIex16+2xPCIex4+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
| MVP-6144-3E/M8G | Celeron G4900T, C246, PCIex16+2xPCIex4+PCI slots, 2xDP, DVI, VGA, 3xGbE, 4xCOM, 3xUSB2, 3xUSB3, USB2 dongle, 8DI/8DO, line-out/mic-in, mPCIe, 2xUSIM, TPM2.0, M.2, CFast, 2x2.5" SATA, 1pcs DDR4 8GB |
