MXC-6600
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 9th Gen Intel Xeon, Core i7/i3 and 8th Gen Intel Core i5
- DDR4 2666MHz, dual SODIMMs, 4GB up to 32GB in total (optional ECC)
- Rich I/O and storage
- Operating temperature: -20°C to +70°C (max.)

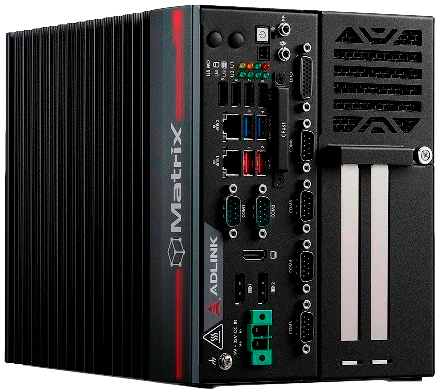

The MXC-6600 Series provides powerful, fanless, expandable embedded computing using the new 9th Gen Intel Xeon, Core i7/i3 and 8th Gen Intel Core i5 processors with improved computing performance.
The MXC-6600 continues the exceptional fanless design from the existing Matrix C series and offers a rich I/O experience with dual DisplayPorts, and an HDMI port supporting three independent displays, two USB3.1 Gen2 ports, two USB 3.1 Gen1, six USB 2.0 and two GbE LAN ports with adapter teaming support. The built-in 16-channel DI/O enables general industrial control, while PCI & PCI express (Gen3) expansion slots accept a variety of PCI, PCIe x8, and PCIe x16 add-on cards for platform development operations.
Compared to other industrial PCs, the MXC-6600 Series is more compact and reliable with superior dependability in harsh environments where severe temperature variation and vibration may occur. The MXC‑6600 Series provides an optional hot-pluggable fan module to dissipate heat from the system when high power consumption PCI/PCIe cards are installed.
Additional function boards can be customized according to customer I/O needs. The Matrix MXC-6600 Series provides a more robust mechanical design, easy installation, and supports a greater variety of I/O options.
| Technical specifications | |
|
System |
|
|---|---|
| Processor |
Intel Xeon E-2276ME, 6C, 2.8/4.5 GHz, 45W (MXC-662X / MXC-664X) Intel Core i7-9850HE, 6C, 2.7/4.4 GHz, 45W (MXC-6621 / MXC-6641) Intel Core i5-8400H, 4C, 2.5/4.2 GHz, 45W (MXC-6622 / MXC-6642) Intel Core i3-9100HL, 4C, 1.6/2.9 GHz, 25W (MXC-6623 / MXC-6643) |
| Chipset | Mobile Intel CM246 |
| Memory |
DDR4 2666MHz, dual SODIMMs, 4GB up to 32GB in total Optional: DDR4 ECC 2666MHz (Xeon and i3 support ECC) |
|
I/O Interface |
|
| Display | 2x DP++ and 1x HDMI |
| Ethernet |
2x Intel GbE (1x i211AT, 1x i219) iAMT support |
| Serial Ports | COM1/2: RS-232/422/485, COM3/4/5/6: RS-232 |
| USB | 2x USB 3.1 Gen 2 + 2x USB 3.1 Gen 1 + 4x USB 2.0, 1x internal USB 2.0 dongle |
| Audio | Line-out, Mic-in (Optional: speaker-out) |
| Mini PCIe | 1x Full size (USB 2.0 + PCIe) |
| M.2 | 1x socket 2, key B+M or B, 2280/3042: USB 3.1 Gen 1, SATA 6 Gb/s and PCIe x2 |
| USIM | 2 (1 for Mini PCIe and 1 for M.2) |
| DI/O | 8-ch DI and 8-ch DO |
| I2C | 2 (3.3V & 5V) |
| TPM 2.0 | Supported |
| Expansion Slots |
MXC-6620 series : PCIe x16 + PCIe x4 (Total up to 150W) MXC-6640 series : PCIe x16 + 2 PCIe x4 + PCI (Total up to 150W with 12V in; total up to 250W with 24V in) |
|
Power Supply |
|
| DC Input | 9 to 32V (± 10% tolerance) |
| AC Input | Optional: 220W or 280W AC/DC adapter |
|
Storage Device |
|
| 2.5" SATA | 2x internal (supports RAID 0, 1, 5, 10) Optional: additional 2x internal |
| CFast | 1x Type II |
|
Mechanical |
|
| Dimension |
165 (W) x 240 (D) x 210 (H) mm (6.5" x 9.45" x 8.27") (MXC-6620 series) 206 (W) x 240 (D) x 210 (H) mm (8.11" x 9.45" x 8.27") (MXC-6640 series) |
| Weight |
4.6 kg (10.2 lbs) (MXC-6620 series) 4.9 kg (10.8 lbs) (MXC-6640 series) |
| Mounting | Wall mount |
|
Environmental and physical specifications |
|
| Operating Temperature |
Standard: 0°C to +50°C (32˚F to 122˚F) w/ airflow Extended temperature (w/ ind. storage, airflow): -20°C to +70°C (-4˚F to 158˚F) (only support single SODIMM) -20°C to +60°C (-4˚F to 140˚F) (w/ dual SODIMMs) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) (excluding storage) |
| Humidity | ~95% @ 40°C (104°F) (non-condensing) |
| Vibration |
Operating: 5 Grms, 5-500 Hz, 3 axes (w/ SSD/CFast) Operating: 0.5 Grms, 5-500 Hz, 3 axes (w/ HDD) |
| Shock | Operating: 100 Grms, half sine 11ms duration (w/ SSD/CFast) |
| ESD | Contact ±8KV, Air ±15KV |
| EMC | EN61000-6-4/-2, CE & FCC Class B with validated AC/DC adapter |
| Safety | UL/cUL, CB |
| Model | Description |
| MXC‑662X-2E | Intel Xeon E-2276ME 45W, 4GB RAM, 2 expansion slots |
| MXC‑6621-2E | Intel Core i7-9850HE 45W, 4GB RAM, 2 expansion slots |
| MXC‑6622-2E | Intel Core i5-8400H 45W, 4GB RAM, 2 expansion slots |
| MXC‑6623-2E | Intel Core i5-8400H 45W, 4GB RAM, 2 expansion slots |
| MXC‑664X-3E | Intel Xeon E-2276ME 45W, 4GB RAM, 4 expansion slots |
| MXC‑6641-3E | Intel Core i7-9850HE 45W, 4GB RAM, 4 expansion slots |
| MXC‑6642-3E | Intel Core i5-8400H 45W, 4GB RAM, 4 expansion slots |
| MXC‑6643-3E | Intel Core i3-9100HL 45W, 4GB RAM, 4 expansion slots |
