MXE-210
Intel Atom Processor E3900 Family-Based Ultra Compact Embedded Platform
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Intel Atom x7-E3950/x5-E3930 processors
- 1x DDR3L 1600MHz SODIMM 2 GB (up to 8GB)
- eSIM support(by project) (Optional)
- Operating temperature: -40°C to 85°C (-40°F to 185°F) (max.)

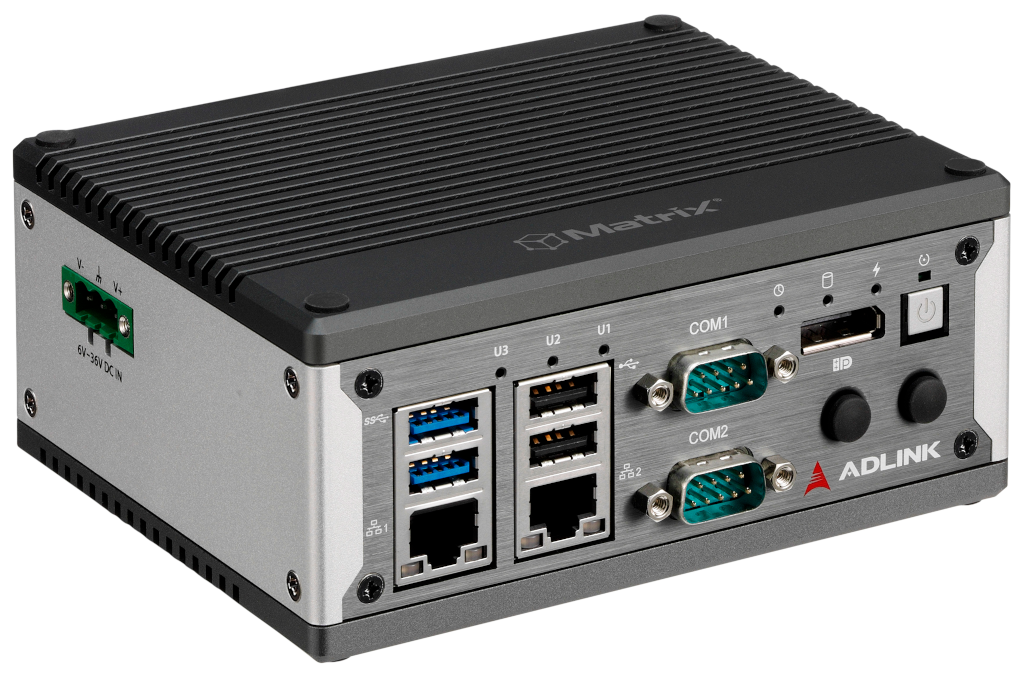

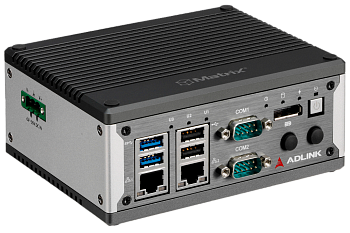

ADLINK’s new Matrix MXE-210 series of ultra compact embedded platforms, based on the Intel Atom x5‑E3930/x7‑E3950 Processor, delivers optimum I/O design for maximum connectivity.
With two GbE LAN ports, two COM ports, two USB 2.0 and two USB 3.0 host ports, and dual mPCIe slots and USIM socket support communication with connections via Wi-Fi, BT, 3G, LoRa(SX1276), and 4G LTE, the MXE‑210 series enables seamless interconnection, ensuring interoperability between systems.
Matrix’s proven rugged construction assures operation in harsh environments with operating shock tolerance up to 100 G and extended operating temperatures of -40°C to +85°C available.
The MXE-210 series presents an intelligent, robust embedded system supporting wide application development and easy service deployment, for outstanding performance in Intelligent Transportation, Facility Management, Industrial Automation, and Internet of Things (IoT) applications.
| Technical specifications | |
|
System |
|
|---|---|
| Processor |
Intel Atom x7-E3950 (quad-core), 1.6 GHz / 2.0 GHz (MXE-211) Intel Atom x5-E3930 (dual-core), 1.3 GHz / 1.8 GHz (MXE-212) |
| Memory | 1x DDR3L 1600MHz SODIMM 2 GB (up to 8GB) |
|
I/O Interface |
|
| Video | 1x DisplayPort 1.2 (Support DP++) |
| Ethernet | 2x Intel I210IT |
| Serial Ports | 2x RS-232/422/485 |
| DIO | 1.5kV isolated 8x DI + 8x DO (Optional, shared location w/ 2.5" SATA) |
| USB | 2x USB 2.0 + 2x USB 3.0 |
| Audio | Mic-in, Line-out (Optional) |
|
Expansion |
|
| Mini PCIe | 2 x full-size |
| USIM | 1 |
| eSIM | 1 (by request) |
|
Manageability |
|
| WDT | Watch Dog Timer support by SEMA |
| SEMA | SEMA 3.5 support with BMC |
|
Power Supply |
|
| DC Input | 6-36 VDC |
| AC Input | Optional 40/90W AC-DC adaptor |
|
Storage Device |
|
| mSATA | 1x full-size |
| 2.5" SATA | 1 (only for MXE-210-S) |
| Micro SD | 1 |
|
Mechanical |
|
| Dimension | 140 (W) x 110 (D) x 58 (H) mm (5.5" x 4.3" x 2.3") |
| Weight | 0.95 Kg (2.06 lbs) |
| Mounting | DIN rail (optional: wall mount) |
|
Other |
|
| Device-Level Security | TPM2.0, Intel Boot Guard, UEFI Secure Boot |
|
Environmental and physical specifications |
|
| Operating Temperature |
Standard: 0°C to +50°C (32˚F to +122˚F) Extended: -20°C to +70°C (-4˚F to +158˚F) w/ ind. SSD Wide (MXE-212): -40°C to +85°C (-40˚F to +185˚F) w/ ind. SSD and ETTS performed, RF/Function mPCIe are excluded |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | approx. 95% @ 40°C (Non-condensing) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes w/ SSD |
| Shock | Operating: 100 G, half sine 11 ms duration w/ SSD |
| ESD | Contact +/-4 KV, Air +/-8 KV |
| EMC | CE and FCC Class B (EN61000-6-4/-2), compliance with EN50121 |
| Safety | UL, CB, CCC |
| Model | Description |
| MXE-211/M4G | E3950 by Apollo Lake SoC, DDR3L 4GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-211/M8G | E3950 by Apollo Lake SoC, DDR3L 8GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-211-S/M4G | E3950 by Apollo Lake SoC, DDR3L 4GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, 1x SATA storage kit |
| MXE-211-ET/M2G | E3950 by Apollo Lake SoC, DDR3L 2GB SODIMM (-20 to +70°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-211-ET/M8G | E3950 by Apollo Lake SoC, DDR3L 8GB SODIMM (-20 to +70°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-211/M2G | E3950 by Apollo Lake SoC, DDR3L 2GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-211-ET/M4G | E3950 by Apollo Lake SoC, DDR3L 4GB SODIMM (-20 to +70°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-211-S/M2G | E3950 by Apollo Lake SoC, DDR3L 2GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, 1x SATA storage kit |
| MXE-211-S/M8G | E3950 by Apollo Lake SoC, DDR3L 8GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, 1x SATA storage kit |
| MXE-212/M2G | E3930 by Apollo Lake SoC, DDR3L 2GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-212/M4G | E3930 by Apollo Lake SoC, DDR3L 4GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-212/M8G | E3930 by Apollo Lake SoC, DDR3L 8GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-212D/M4G | E3930 by Apollo Lake SoC, DDR3L 4GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, isol. 8-ch DI + 8-ch DO board |
| MXE-212-ET/M2G | E3930 by Apollo Lake SoC, DDR3L 2GB SODIMM (-20 to +70°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-212-ET/M4G | E3930 by Apollo Lake SoC, DDR3L 4GB SODIMM (-20 to +70°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-212-ET/M8G | E3930 by Apollo Lake SoC, DDR3L 8GB SODIMM (-20 to +70°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA |
| MXE-212-S/M2G | E3930 by Apollo Lake SoC, DDR3L 2GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, 1x SATA storage kit |
| MXE-212-S/M4G | E3930 by Apollo Lake SoC, DDR3L 4GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, 1x SATA storage kit |
| MXE-212-S/M8G | E3930 by Apollo Lake SoC, DDR3L 8GB SODIMM, 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, 1x SATA storage kit |
| MXE‑212‑WT/M2G/ETT | E3930 by Apollo Lake SoC, DDR3L 2GB SODIMM (-40 to +85°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, ETT -40 to +85°C |
| MXE‑212‑WT/M4G/ETT | E3930 by Apollo Lake SoC, DDR3L 4GB SODIMM(-40 to +85°C), 1x DP, 2x GbE, 2x RS-232/422/485, 2x USB2.0, 2x USB3.0, 2x mPCIe, 1x USIM, 1x mSATA, ETT -40 to +85°C |
