MXE-5600
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 9th Gen Intel Xeon, Core i7/i3 and 8th Gen Intel Core i5 processors
- Dual SODIMMs for up to 32GB DDR4 non-ECC/ ECC memory
- Rich I/O and storage
- Operating temperature: -20°C to +70°C (max.)

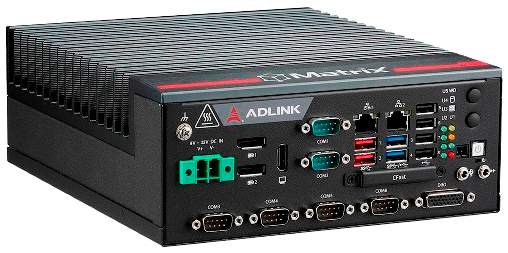

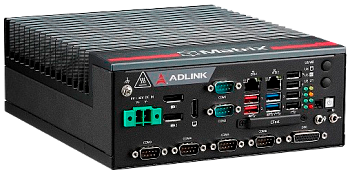

ADLINK’s new Matrix MXE-5600 Series of fanless computers feature 9th Gen Intel Xeon, Core i7/i3 and 8th Gen Intel Core i5 processors, delivering outstanding performance with robust construction.
The MXE-5600 series accommodates rich I/O capabilities in a compact system size, with two DisplayPorts, one HDMI, two GbE by Intel Network Interface Controllers (NIC), four each of USB 2.0 and USB 3.1, eight DI/O, and two BIOS-configurable COM ports for RS-232/422/485.
With dual 2.5″ SATA drive bays and one CFast port, a wider variety of storage options is available. One Mini PCIe slot, one B-keyed M.2 slot and two USIM sockets empower the MXE-5600 Series as a communications hub for a variety of wireless connections, such as BT/WiFi and LTE.
Leveraging proprietary mechanical engineering, the MXE-5600 Series continues to offer all the popular features of the Matrix E series, including wide operating temperature ranges, and 5 Grms vibration resistance.
Combining superior processor performance, wireless capability, and rich, scalable I/O in a compact and robust package, the ADLINK MXE-5600 Series is an ideal choice for a wide range of applications supporting intelligent transportation, invehicle multimedia, surveillance, and factory automation applications.
| Technical specifications | |
|
System |
|
|---|---|
| Processor |
Intel Xeon E-2276ME, 2.8 GHz / 4.5 GHz, 45W, 6C (MXE-560X) Intel Core i7-9850HE, 2.7 GHz / 4.4 GHz, 45W, 6C (MXE-5601) Intel Core i5-8400H, 2.5 GHz / 4.2 GHz, 45W, 4C (MXE-5602) Intel Core i3-9100HL, 1.6 GHz / 2.9 GHz, 25W, 4C (MXE-5603) |
| Chipset | Mobile Intel CM246 |
| Memory |
4GB DDR4 2400MHz, dual SODIMMs, up to 32GB Optional: 8, 16, 32GB DDR4 ECC 2400MHz (Xeon® and i3 support ECC) |
|
I/O Interface |
|
| Display | 2x DP++ and 1x HDMI |
| Ethernet |
2x Intel GbE: 1x i211AT + 1x i219 iAMT support |
| Serial Ports |
COM1/2: RS-232/422/485, COM3/4/5/6: RS-232 |
| USB | 2x USB 3.1 Gen 2 + 2x USB 3.1 Gen 1 + 4x USB 2.0, 1x internal USB 2.0 dongle |
| Audio | Line-out, Mic-in (Optional: speaker-out) |
| Mini PCIe | 1x Full size (USB 2.0 + PCIe) |
| M.2 | 1x socket 2, key B+M or B, 2280/3042: USB 3.1 Gen 1, SATA 6 Gb/s and PCIe x2 |
| USIM | 2 (1 for Mini PCIe and 1 for M.2) |
| DIO | 8-CH DI and 8-CH DO |
| I2C | 2 (3.3V & 5V) |
| TPM 2.0 | Supported |
|
Storage Device |
|
| 2.5" SATA | 2x internal (supports RAID 0, 1) |
| CFast | 1 Type II |
|
Mechanical |
|
| Dimension | 210 (W) x 240 (D) x 86 (H) mm (8.27" x 9.45" x 3.39") |
| Weight | 3.6 kg (8 lb) |
| Mounting | Wall mount |
|
Power Supply |
|
| DC Input | 9 to 32V (± 10% tolerance) |
| AC Input | Optional: 160W AC/DC adapter |
|
Environmental and physical specifications |
|
| Operating Temperature |
Standard: 0°C to 50°C (32˚F to 122˚F) w/ airflow Extended temperature (w/ ind. storage, airflow): -20°C to 70°C (-4˚F to 158˚F) (only support single SODIMM) -20°C to 60°C (-4˚F to 140˚F) (w/ dual SODIMMs) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) (excl. storage) |
| Humidity | ~95% @ 40°C (104°F) (non-condensing) |
| Vibration |
Operating: 5 Grms, random, 5-500 Hz, 3 axes (w/2.5" SSD/CFast, 3 Grms w/ fan) Operating: 0.5 Grms, random, 5-500 Hz, 3 axes (w/ HDD) |
| Shock | Operating: 100 G, half sine 11ms duration (w/ 2.5" SSD/CFast) |
| ESD | Contact ±8KV, Air ±15KV |
| EMC | EN61000-6-4/-2, CE & FCC Class B with validated AC/DC adapter |
| Safety | UL/cUL, CB |
| Model | Description |
| MXE‑560X/M4G | Intel Xeon E-2276ME 45W, CM246, 4GB RAM |
| MXE‑5601/M4G | Intel Core i7-9850HE 45W, CM246, 4GB RAM |
| MXE‑5602/M4G | Intel Core i5-8400H 45W, CM246, 4GB RAM |
| MXE‑5603/M4G | Intel Core i3-9100HL 25W, CM246, 4GB RAM |
