SP2-AL
Intel Atom Processor-based Fanless Open Frame Panel PC
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Display size: 7" / 10.1" / 15.6” / 21.5”
- Viewing angle: 89° (85° for SP2-07WP-AL)
- IP rating: IP65 for front
- Operating temperature: -20°C to 60°C (max.)
Smart Panels — Open-Frame Panel PCs
With flexible configuration with a high level of modularization, ADLINK Smart Panels help system integrators, integrated solution providers, and brand vendors deliver cutting-edge functions unique to individual applications. Leveraging ADLINK’s unique Function Module (FM) design, these panels accelerate prototyping according to the requirements of the application while saving time, money, and effort. ADLINK’s Smart Panels are an ideal fit for transportation, retail, hospitality, industrial automation, healthcare, gaming, and other industries.

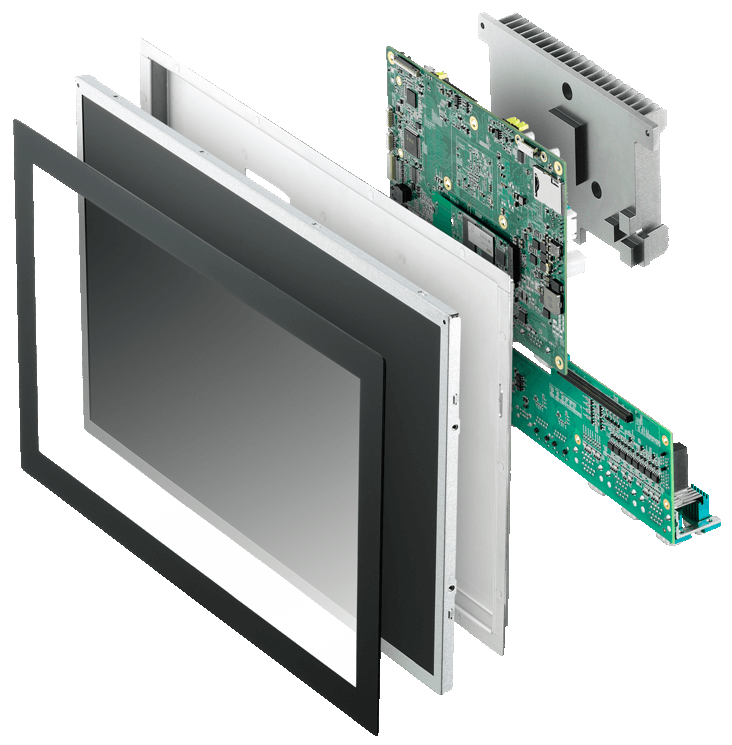

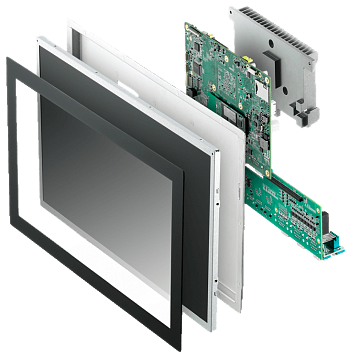

Flexible configuration with advanced modularization
ADLINK Smart Panels can be easily tailored to application needs through customization of the computing performance, touch panel type, display size, and I/O interface. The Smart Panel’s function modules support application-specific functions, and this modular architecture fast-tracks development, verification, and validation, resulting in significant savings in time, money, and resources.
Endless possibilities with unique function modules
With function modules, ADLINK’s Smart Panels can be configured with custom functions and interfaces to seamlessly meet the needs of any vertical application. Connected by a board-to-board connector, function modules offer guaranteed compatibility with ADLINK Smart
Panels, which decreases R&D overhead and costs.
Long-term reliability and durability
ADLINK Smart Panels is robust for use in harsh operating environments. The wide temperature and power input ranges allow the Smart Panel to withstand poorly ventilated conditions, transient power spikes, and voltage fluctuations, while the IP65-rated front panel can deter water and dust ingress. Designed with long-term usability in mind, these Smart Panels offer clients peace of mind, alleviating worries related to system reliability after deployment or long-term supply availability.
| Technical specifications | |
|
System |
|
|---|---|
| Processor |
Intel Atom x7-E3950 1.6/2.0GHz (Turbo), 12W (4C/1866) Intel Atom x5-E3930 1.3/1.8GHz (Turbo), 6W (2C/1866) |
| Memory | 1x SODIMM socket, DDR3L 1600MHz (Up to 8GB) |
| Storage |
1x M.2 SATA 6 Gbps port, M key 2280 and 1x 2.5” SSD/HDD SATA 6 Gbps port (Optional) |
|
Display and Touch |
|
| Size |
7" (SP2-07WP-AL) 10.1" (SP2-10WP-AL) 15.6" (SP2-15WP-AL) 21.5" (SP2-21WP-AL) |
| Resolution |
1024x600 (SP2-07WP-AL) 1280 x 800 (SP2-10WP-AL) 1920 x 1080 (SP2-15WP-AL) 1920 x 1080 (SP2-21WP-AL) |
| Contrast Ratio |
600:1 (SP2-07WP-AL) 800:1 (SP2-10WP-AL) 1000:1 (SP2-15WP-AL) 1000:1 (SP2-21WP-AL) |
| Brightness (Nits) |
600 cd/m2 (typ) (SP2-07WP-AL) 400 cd/m2 (typ) (SP2-10WP-AL) 420 cd/m2 (typ) (SP2-15WP-AL) 400 cd/m2 (typ) (SP2-21WP-AL) |
| Backlight Life (Hrs) | 50,000 |
| Viewing Angle (U/D/R/L) |
89/89/89/89 (85/85/85/85 for SP2-07WP-AL) |
| Touch Point |
10 points (5 points for SP2-07WP-AL) |
| Touch Structure | Glass/Glass |
| Surface Hardness | 7H |
| Surface Treatment | AS coating |
|
External I/O |
|
| Ethernet | 2x GbE (Intel I225), RJ-45, WOL, 1 Gb/s |
| Serial Port | 2x RS-232/422/485 programmable, auto flow |
| USB Port |
1x USB 2.0, Type A, OCP, 1000mA 1x USB 3.0, Type A, OCP, 1600mA |
| DisplayPort | 1x DP, DP++, supports resolutions up to 4096x2160@60Hz |
|
Internal I/O with Wire to Board Connectors |
|
| USB Port | 1x USB 2.0 client |
| I2C | 2x for I2C client |
| Audio |
1x for 2x stereo speaker (2 watt) 1x Mic-in and Line-out |
| Keys |
1x for 32 physical keys (BOM optional), 1x supports LCD backlight up/down and volume up/down (BOM optional) |
| GPIO | 1x supports 8-pin GPI/O |
| mPCIe | 1x mPCIe slot (Wi-Fi/BT/4G) |
| SIM | 1x SIM slot for 4G/5G communication |
|
Power with Wire to Board Connectors |
|
| Power Input |
AT/ATX (default: AT mode) 12V ±5% / 9-36V, both with OVP/UVP protection |
| Power Connector | 1x 4-pin power connector |
| Power/Fail Reset | 1x wafer, support system reset & power button and power LED |
| Backup Battery | 1x wafer for UPS kit to backup data when AC shuts down (Optional) |
|
Software |
|
| SEMA | SEMA 4.0 |
| WDT | Watch Dog Timer supported |
| Operating System |
Windows 10 IoT Enterprise x64 bit Linux Ubuntu 20.04 LTS |
|
Mechanical |
|
| Construction | SGCC |
| Dimension (W x L x D) |
249.66 x 168.3 x 64.4 ± 2mm (SP2-07WP-AL) 249.66 x 168.3 x 64.4 ± 2mm (SP2-10WP-AL) 383.15 x 232.79 x 65.1 ± 2mm (SP2-15WP-AL) 517.46 x 309.19 x 67.6 ± 2mm (SP2-21WP-AL) |
| Weight |
2.06 ± 0.2kg (SP2-07WP-AL) 2.06 ± 0.2kg (SP2-10WP-AL) 3.02 ± 0.2kg (SP2-15WP-AL) 4.85 ± 0.2kg (SP2-21WP-AL) |
| Mounting kit (optional accessories) |
1) Panel Mounting 2) VESA mounting, support by a rear cover |
|
Environmental and physical specifications |
|
| Operating Temperature |
-20°C to 60°C (0°C to 60°C for SP2-21WP-AL) |
| Storage Temperature |
-20°C to 70°C (-20°C to 60°C for SP2-21WP-AL) |
| Humidity | 10% to 95% |
| Vibration | OP 1 Grms, 5-500Hz w/ SSD, (IEC60068-2-64), X, Y, Z axes, 60 min/axis |
| Shock | OP 20G peak acceleration, 11 ms (IEC60068-2-64), ±X, ±Y, ±Z, 3 shocks/asix |
| IP Rating | IP65 for front |
| ESD | Air: ±15kV, Contact: ±8kV |
| EMC/Safety Compliance |
EMI: IEC/EN 61000-3-2, IEC/EN 61000-3-3, EN 61000-6-4, EN 55032 EMS: EN 55035, EN 61000-6-2, EMC: CE, FCC Class B, IEC 60601-1-2:2014/EN60601-1-2:2015, UNECE R10, EN 50121-3-2 Safety: Compliant with 60601-1/61010-1/62368-1 *SP-AL has passed pre-compliance testing of EMI, EMS, EMC, and Safety. |
| Model | Description |
| SP‑07WP‑AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN, DC: 12V |
| SP-10WP-AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN, DC: 12V |
| SP-10WP-AL3950, 4GB, 9-36V | Intel Apollo Lake E3950, storage: 32GB M.2, DC: 9-36V |
| SP-10WR-AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN, DC: 12V |
| SP-12WP-AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN, DC: 12V |
| SP-15WP-AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN, DC: 12V |
| SP-15WP-AL3930, 2GB, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, DC: 12V |
| SP-18WP-AL3930, 2GB, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, DC: 12V |
| SP-21WP-AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2DC: 12V, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN |
| SP-10WR-AL3930, 2GB, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, DC: 12V |
| SP-12WR-AL3950, 2GB, 9-36V | Intel Apollo Lake E3950, storage: 32GB M.2, DC: 9-36V |
| SP-15WR-AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN, DC: 12V |
| SP-18WR-AL3930, 2GB, w/ IO, 12V | Intel Apollo Lake E3930, storage: 32GB M.2, I/O: 2x COM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN, DC: 12V |
| SP-FM board | 2x USB 3.0, 2x USB 2.0, 2x RS-232/422/485 (Box header), 2x RS-232, 2kv isolation for each port (Box header), 1x DP, 1x HSSPI, 1x mPCIe |
| SP-AL3950 Starter kit_10.1_P_36V | SP-AL3950 Starter kit 10.1" PCAP, 9-36V |
| SP-AL3950 Starter kit_15.6_P_36V | SP-AL3950 Starter kit 15.6" PCAP, 9-36V |
|
Smart Panel Accessories |
|
|---|---|
| Power Accessories | |
| AC-DC ADAPTER 60W,100~240VAC | Input: 100~240VAC, output: 12VDC/5A, dimension: (H)31.5mm x (W)62mm x(D)110mm, frequency: 47~63Hz, efficiency(typ.): 115Vac >88%, 230Vac >89%, operating temperature: -20~40°C |
| AC-DC ADAPTER 84W | Input: 100~240VAC, output: 12VDC/7A, frequency: 47~63Hz, dimension: (H)159mm x (W)58mm x(D)32.3mm, efficiency(typ.): 115Vac >88%, operating temperature: -20~40°C |
| Wire Harness 2x2(4.2mm) to TB 1x2P(5.08mm) | Wire: UL1007, 18AWG, L=200±10mm, P1:DINKLE_2EHDP-02P/2ESDVM-02P, male/female, pitch: 5.08mm, P2:JWT_C4202H0 2x2P(Pitch:4.2mm) |
| 160W MEANWELL,GST160A24-AD,24V,6.67A | Input: 85~264VAC,160W, output: 24VDC/6.67A, frequency: 47~63Hz, efficiency(typ.): 93%, operating temperature: -30~+70°C, UL/TUV/BSMI//PSE/CE/FCC/CB/CCC/DOE Level 6 |
| AC-DC ADAPTER 60W,100~240VAC, Power Cord | 31-62156-0000-A0 + 30-21346-0000-A0, input: 100~240VAC, output: 12VDC/5A, dimension: (H)31.5mm x (W)62mm x(D)110mm, frequency: 47~63Hz, efficiency(typ.): 115Vac >88%, 230Vac >89%, operating temperature: -20~40°C |
| AC-DC ADAPTER 84W, Power Cord, FSP,12V/ 7A,9NA0840702 | 31-62157-0000-A0 + 30-21346-0000-A0, input: 100~240VAC, output: 12VDC/7A, frequency: 47~63Hz, dimension: (H)159mm x (W)58mm x(D)32.3mm, efficiency(Typ.): 115Vac >88%, operating temperature: -20~40°C |
| 160W MEANWELL,GST160A24-AD,24V,6.67A | 31-62156-0000-A0 + 30-21346-0000-A0, input: 85~264VAC,160W, output: 24VDC/6.67A, frequency: 47~63Hz, efficiency(Typ.): 93%, operating temperature: -30~+70°C, UL/TUV/BSMI//PSE/CE/FCC/CB/CCC/DOE Level 6 |
| STCII VESA Mounting Kit | VESA 100 x 100Screw kit |
| Cables | |
| USB cable | CAMERA CABLE L=300mm |
| I2C cable | A1251 I2C1&I2C2 CABLE L=300mm |
| Keypad | keypad + cable *2 |
| LED | LEDs CABLE L=300mm |
| Power & Reset | POWER and RESET CABLE L=300mm |
| Audio cable | AUDIO CABLE L=300mm |
| Speaker cable | SPEAKER CABLE L=300mm |
| GPIO cable | A1252 GPIO CONN L=300mm |
| USB cable | USB 2.0, wafer to USB dongle |
| SATA cable | 2.5" SATA DATA & POWER CABLE |
| Components | |
| Camera | Web Camera module 5.0M pixel |
| Speaker | SPEAKER 2W/8Ω 550Hz 94dB |
| Mic | MIC, 3V/2.2KΩ, 500uA, -40dB |
| 3G/4G LTE Module Kits | |
| FANGTEC WIFI/BT KIT | WLAN 802.11ac 2T2R+BT4.0 Half Mini Card, 2x IPEX to SMA cable, 2x WIFI/BT antenna, IEEE 802.11 a/b/g/n/ac, operating temperature: -20 to +85°C |
| Sierra HL7588 4G KIT(US) | Peak download rate: 150 Mbps, peak upload rate: 50Mbps, operating temperature: -40 to +85°C |
| SIM7100A 4G/LTE+GPS KIT(WT) | SIMCOM7100A LTE full-size mini PCIe card, w/o SIM slot, w/o voice function, USB 2.0, 3x IPEX to SMA cable, 2x 4G antenna, GPS antenna, operating temperature: -40 to +85°C |
| Others | |
| P8TO24 | PCIe x8-to-two-x4 adapter card |
| SP-AL Keypad test board | SP-AL Keypad test board |
