Digi-Shock G/GT

Impact and Temperature Recorder
  • Details
  • Specification
  • Order information
  • ±25g or ±100g on the X, Y, and Z axis lines
  • Battery Life: 6 months
  • Flash memory capable of more than 1 million events. Retain data in event of power loss.
  • Plastic case. Operating Temperature: -40°F to 140°F

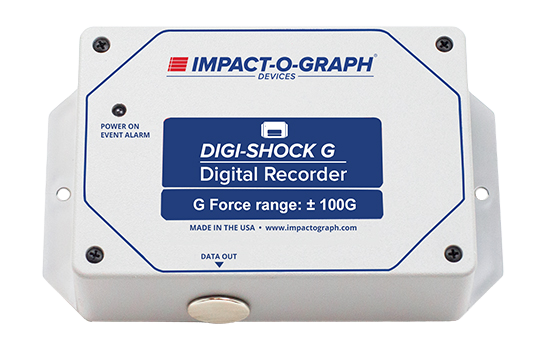

The Digi-Shock G is a reusable digital shock recorder that monitors impacts up to 25g or 100g.*

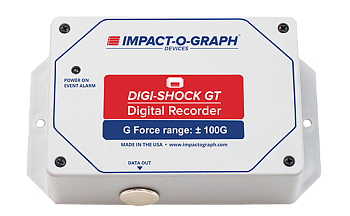

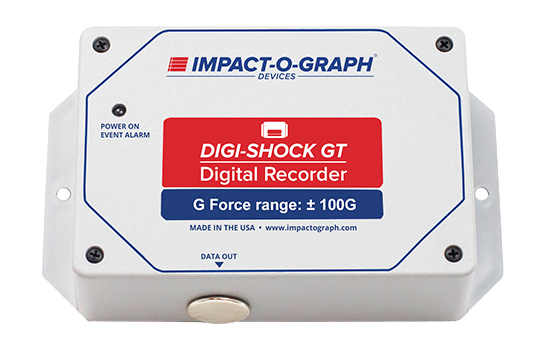

The Digi-Shock GT is a reusable digital shock and temperature recorder that monitors impacts up to 25g or 100g* and records temperature events.

mission control software (included) is easy-to-use and allows for quick and simple set-up of mission parameters. A mission summary provides the start and end date of the mission, highest and lowest temperature (only Digi-Shock GT), with the largest impacts on each axis during a journey.

An LED visual indication displays when user defined alarm parameters are exceeded at any time, advising users that the
monitored product may have been damaged and should be inspected immediately.

Features

  • Fully reusable long-life device
  • Records X, Y and Z axes and temperature
  • User-defined alarm levels
  • LED alarm and power lights
  • Simple Windows-based software for quick and easy set up and evaluation
  • Software not required to retrieve encrypted data file at destination
  • 25g model has higher data resolution
  • Impact Duration (25g model only)
  • Mission data can be e-mailed or downloaded directly into the software for evaluation
  • Serialized identification for security
  • Complete data analysis of the transportation time, with acceleration values on all axes and temperature (only Digi-Shock GT)
  • Zoom feature for specific time slots evaluation
  • Data export and print capabilities
Mission Software
  • Mission graphs provide a detailed report of each mission. This enables customers to view every single event during a journey.
  • Mission Summary provides the start and end date of the mission, plus the largest impacts on each axis during a journey.
  • An encrypted mission file can be downloaded and emailed without the software installed. Enables user to view the mission file (requires software) immediately without waiting for the device to be returned.
  • Mission Control software language in English, German, Spanish, Chinese and Portuguese.
  • Optional Parameters:
    Set start and stop for date and time of mission
    Set alarm levels for each axis individually
    Set Alarm Levels for both high and low temperatures (only Digi-Shock GT)
    Set g level threshold for storing data (i.e. set at 3g to record 3g or higher events)
    Set delta level for temperature data storage (only Digi-Shock GT)
*Device can be ordered with g force level up to 25g or up to 100g. The 25g provides higher data resolution.

Technical specifications
Power: A single C-Cell Lithium Primary 3.6v or USB cable. Automatic battery disconnect when USB cable is plugged in. Protection Circuit to prevent device damage if batteries are installed backwards
Battery Life: 6 months life (Lithium Ion Battery)
Memory: Retain data in event of power loss. Flash memory capable of more than 1 million events
Accelerometer: ±25g or ±100g on the X, Y, and Z axis lines. Samples 250 times per second
Temperature: Read 1/minute (Only Digi-Shock GT)
Connectivity: Standard A-B USB cable for connection to a PC computer. No special cable required to retrieve data. Encrypted data file can be emailed directly back to sender for review
Status: High Efficiency LED provides device status in real time
Dimensions: 5” x 3.5” x 1.5” plastic case
Weight: 8 oz with batteries installed
Optional: Metal mounting plate,
replacement lithium battery,

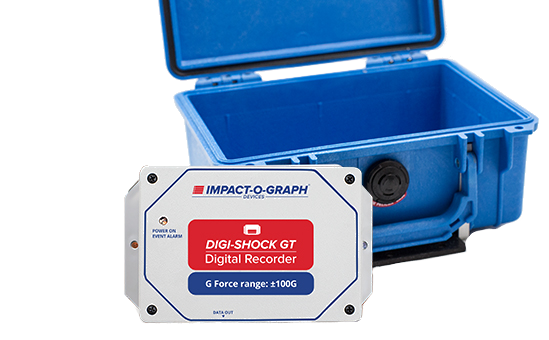

waterproof pelican case and
magnetic mount plate

Environmental and physical specifications

Operating Temperature: -40°F to 140°F (battery operating range).
Certification: TUV, CE & CB
Model Description
1600-100G Digi-Shock G Impact & Temperature Recorder, 100g
1600-25G Digi-Shock G Impact & Temperature Recorder, 25g
1600-100GT Digi-Shock GT Impact & Temperature Recorder, 100g
1600-25GT Digi-Shock GT Impact & Temperature Recorder, 25g
