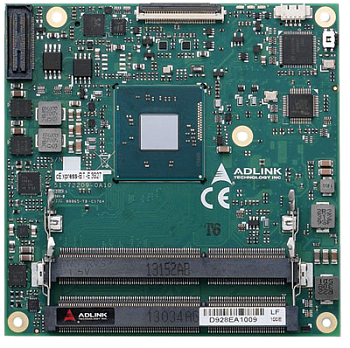

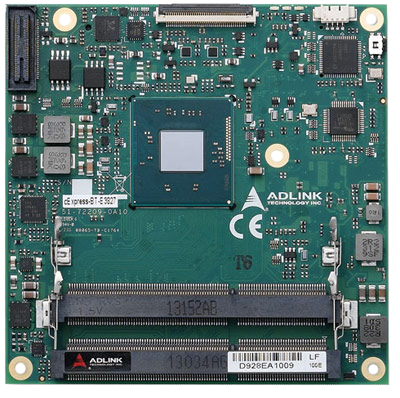

cExpress-BT

COM Express Compact Size Type 6 Module with Intel Atom or Intel Celeron Processor SoC (formerly codename: Bay Trail)
  • Details
  • Specification
  • Order information
  • Single, dual, quad-core Intel Atom E3800 series or Celeron Processor SoC
  • Up to 8GB Dual Channel DDR3L at 1333MHz
  • VGA and two DDI channels (optional LVDS)
  • Extreme Rugged operating temperature: -40°C to +85°C

The cExpress-BT is a COM ExpressR COM.0 R2.1 Type 6 module supporting the Intel Atom processor E3800 Series and Intel Celeron N2900/J1900 processor SoC (codename: Bay Trail). The cExpress-BT is specifically designed for customers who need high-level processing and graphics performance with low power consumption in a long product life solution.

The Intel Atom processor E3800 and Intel Celeron N2900/J1900 processor support non-ECC type DDR3L dual-channel memory at 1066/1333 MHz to provide excellent overall performance.

Integrated Intel Gen7 HD Graphics includes features such as OpenGL 3.1, DirectX 11, OpenCL 1.1 and support for H.264, MPEG2, VC1, VP8 hardware decode. Graphics outputs include VGA, DDI ports supporting HDMI/DVI/DisplayPort and optional dual-channel 18/24-bit LVDS.

The cExpress-BT is specifically designed for customers with high performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time.

The cExpress-BT has dual stacked SODIMM sockets for up to 8 GB non-ECC type DDR3L memory. In addition, an onboard miniSD card slot and onboard eMCC memory (optional, 8GB to 64GB) are supported. The cExpress-BT features a single Gigabit Ethernet port, USB 3.0 ports and USB 2.0 ports, and SATA 3 Gb/s ports. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS, supporting embedded features such as remote console, CMOS backup, hardware monitor, and watchdog timer.

Technical specifications

Core System

CPU Single, dual, quad-core Intel Atom or Celeron Processor

Atom E3845 1.91 GHz 542/792 (Turbo) 10W (4C/1333)
Atom E3827 1.75 GHz 542/792 (Turbo) 8W (2C/1333)
Atom E3826 1.46 GHz 533/667 (Turbo) 7W (2C/1066)
Atom E3825 1.33 GHz 533 (No Turbo) 6W (2C/1066)
Atom E3815 1.46 GHz 400 (No Turbo) 5W (1C/1066)
Atom E3805 1.33 GHz (No GFX) 3W (2C/1066)
Celeron N2930 1.83/2.16 (Burst) GHz, 313/854 (Turbo) 7.5W (4C/1333)
Celeron J1900 2.0/2.42 (Burst) GHz, 688/854 (Turbo) 10W (4C/1333)

Supports: Single, dual or quad Out-of-Order Execution (OOE) processor cores, Intel VT-x, Intel SSE4.1 and SSE4.2, Intel 64 architecture, IA 32-bit, PCLMULQDQ Instruction DRNG, Intel Thermal Monitor (TM1 & TM2)

Notes: Availability of features may vary between processor SKUs.
Memory Dual channel non-ECC 1333/1066 MHz DDR3L memory up to 8GB in dual stacked SODIMM sockets
Embedded BIOS AMI EFI with CMOS backup in 8MB SPI BIOS
Cache Primary 32 KB, 8-way L1 instruction cache and 24 KB, 6-way L1 write-back data cache
2MB for E3845, N2930 and J1900
1MB for E3827, E3826, E3825 and E3805
512K for E3815
Expansion Busses 3 PCI Express x1 Gen2 (AB): Ianes 0/1/2; build option PCIe x4 (lose GbE), LPC bus, SMBus (system), I2C (user)
SEMA Board Controller Supports: Voltage/Current monitoring, Power sequence debug support, AT/ATX mode control, Logistics and Forensic information, Flat Panel Control, General Purpose I2C, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control
Debug Headers 40-pin multipurpose flat cable connector. Use in combination with DB-40 debug module providing BIOS POST code LED, BMC access, SPI BIOS flashing, Power test points, Debug LEDs
26-pin XDP header for ICE debug of CPU/chipset

Video

GPU Feature Support 7th generation Intel graphics core architecture with four execution units supporting two independent displays
3D graphics hardware acceleration
Supports DirectX 11, OCL 1.1, OGL ES Halt/2.0/1.1, OGL 3.2
Video decode hardware acceleration including support for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats
Video encode hardware acceleration including support for H.264, MPEG2 and MVC formats
Digital Display Interface DDI1 supporting DisplayPort/HDMI/DVI (build option dual channel 18/24-bit LVDS support)
DDI2 supporting DisplayPort/HDMI/DVI
VGA Analog VGA supporting resolutions of up to 2560 x 1600 x 24bpp @60

Audio

Chipset Intel HD Audio integrated in SoC
Audio Codec Located on carrier Express-BASE6

Ethernet

Intel MAC/PHY Intel i210LM (MAC/PHY) Ethernet controller
Interface 10/100/1000 GbE connection

I/O Interfaces and storage

USB 1x USB 3.0 (USB 0), 6x USB 1.1/2.0 (USB 1/2/3/4/5/6, ports 3-6 from USB hub)
SATA Two SATA 3 Gb/s ports
Serial 2 UART ports COM 0/1 (COM 0 support console redirection)
eMMC Build option soldered on module bootable eMMC flash storage 8 to 32 GB
SDIO On module mini SD card socket, eMMC feature may vary between OS
GPIO 4 GPO and 4 GPI
Super I/O On carrier if needed (standard support for W83627DHG-P)

TPM

Chipset Atmel AT97SC3204 (build option)
Type TPM 1.2

Power

Standard Input ATX = 12V±5% / 5Vsb ±5% or AT = 12V±5%
Wide Input ATX = 5~20 V / 5Vsb ±5% or AT = 5 ~20V
Management ACPI 4.0 compliant, Smart Battery support
Power States C0, C1, C1E, C4, C6, S0, S3, S4, S5 (Wake on USB S3 for port 0~7/S4 for port 0~3, WOL S3/S4/S5
ECO mode Wake on USB S3/S4, WOL S3/S4/S5

Other

Form Factor PICMG COM.0: Rev 2.1 Type 6
Dimension Compact size: 95 mm x 95 mm
Operating Systems Standard Support: Windows 7/8 32/64-bit, Linux 32/64-bit
Extended Support (BSP): WES7/8, Linux, VxWorks 32/64-bit WEC7 32-bit

Environmental and physical specifications

Operating temperature Standard: 0°C to 60°C
Extreme Rugged: -40°C to 85°C (build option, Atom E38xx series only)
Humidity 5-90% RH operating, non-condensing
5-95% RH storage (and operating with conformal coating)
Shock and Vibration IEC 60068-2-64 and IEC-60068-2-27
MIL-STD-202F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D
HALT Thermal Stress, Vibration Stress, Thermal Shock and Combined Test
Model Description
cExpress-BT-E3845 Compact COM Express Type 6 Module with Intel Atom E3845 at 1.91 GHz
cExpress-BT-E3827 Compact COM Express Type 6 Module with Intel® Atom E3827 at 1.75 GHz
cExpress-BT-E3826 Compact COM Express Type 6 Module with Intel Atom E3826 at 1.46 GHz
cExpress-BT-E3825 Compact COM Express Type 6 Module with Intel Atom E3825 at 1.33 GHz
cExpress‑BT‑E3815 Compact COM Express Type 6 Module with Intel Atom E3815 at 1.46 GHz
cExpress‑BT‑E3805 Compact COM Express Type 6 Module with Intel Atom E3805 at 1.33 GHz
cExpress‑BT‑N2930 Compact COM Express Type 6 Module with Intel Celeron N2930 at 1.83 GHz
cExpress‑BT‑J1900 Compact COM Express Type 6 Module with Intel Celeron J1900 at 2.00 GHz
cExpress-BT-E3845 LVDS Compact COM Express Type 6 module with Intel Atom E3845 at 1.91 GHz support LVDS
cExpress-BT-E3827 LVDS Compact COM Express Type 6 module with Intel® Atom® E3827 at 1.75 GHz support LVDS
cExpress-BT-E3826 LVDS Compact COM Express Type 6 module with Intel® Atom® E3826 at 1.46 GHz support LVDS
cExpress-BT-E3825 LVDS Compact COM Express Type 6 module with Intel Atom E3825 support LVDS
cExpress‑BT‑E3815 LVDS Compact COM Express Type 6 module with Intel Atom E3815 at 1.46 GHz support LVDS
HTS-cBT-B Heatspreader for cExpress-BT with threaded standoffs for bottom mounting
HTS-cBT-BT Heatspreader for cExpress-BT with through hole standoffs for top mounting
THS-cBT-B Low profile heatsink for cExpress-BT with threaded standoffs for bottom mounting
THS-cBT-BT Low profile heatsink for cExpress-BT with through hole standoffs for top mounting
THSH-cBT-B High profile heatsink for cExpress-BT with threaded standoffs for bottom mounting
THSF-cBT-B High profile heatsink with Fan for cExpress-BT with threaded standoffs for bottom mounting (-40°C to + 85°C operation
