M-Max VT

Rugged VersaTainer-based Conduction-Cooled Systems Family
  • Details
  • Specification
  • IP66-rated dust and moisture protection
  • Shock handling up to 40g, vibration up to 6g
  • Power consumption 10-65 W
  • Operating temperature: -40 to +70 °C
  • Compatible M-Max® platforms: PR7 Platform, AR Platform

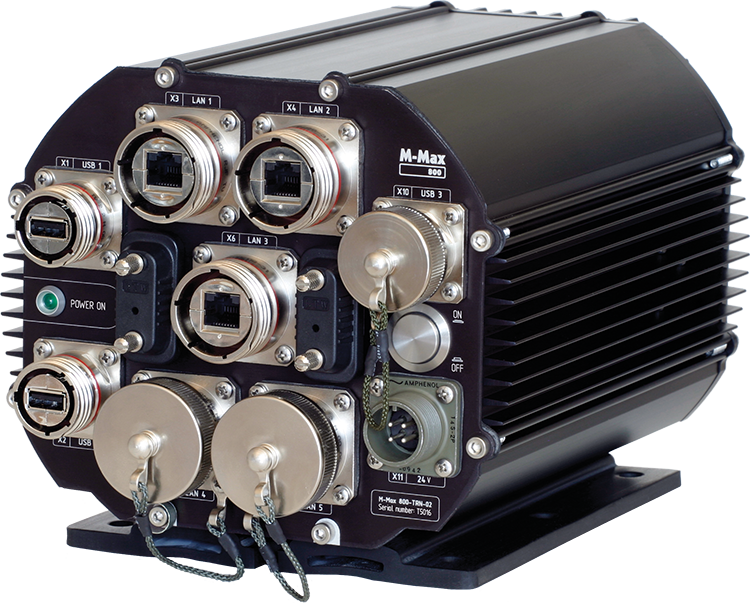

The M-Max® VT is a rugged EBX and PC/104 system designed mostly for on-board applications. It is constructed of .125″ aluminum and is ready to be used in harsh environments.

It features a dual system of shock and vibration protection comprised of internal rubber corner rails which absorb high-frequency vibrations, while a thick rubber pad between the enclosure and the host platform absorbs low-frequency G-forces. The rubber pad may be removed for other mounting solutions. The M-Max® VT cross section measures 7.10″ wide by 5.70″ high (not including mounting pad). The system is available in standard lengths from 4″ to 12″ and custom lengths up to 48″.

The M-Max® VT can be used in the harshest environments in the mining, transportation, military, and aerospace industries. The system and its standard accessories are RoHS compliant.

The M-Max® VT system is compatible with the following M-Max® platforms: PR7 Platform, AR Platform.

Technical specifications (depending on the chosen platform)
Compatible M-Max® platforms: PR7 Platform
AR Platform
CPU options: Atom E3826 1.46 GHz 2 Cores / 2 Threads
Atom E3845 1.91 GHz 4 Cores / 4 Threads
i3-6102E 1.9 GHz 2 Cores / 4 Threads
i3-6100E 2.7 GHz 2 Cores / 4 Threads
i5-6442EQ 1.9–2.7 GHz 4 Cores / 4 Threads, i7-6822EQ 2.0–2.8 GHz 4 Cores / 8 Threads
i5-6442EQ 1.9–2.7 GHz 4 Cores / 4 Threads
i7-6822EQ 2.0–2.8 GHz 4 Cores / 8 Threads
RAM: 2 to 32 GB
GPU options: HD 7th Gen. 533 MHz
HD 7th Gen. 533–667 / 542–792 MHz
HD 530 0.35–0.95 GHz
HD 530 0.35–1.0 GHz
SSD options: mSATA2 + SATA2 8 GB
2x mSATA3 + SATA3 8 GB
Embedded SATA2 + 2x SATA3 8 / 32 GB (soldered)
Video options: VGA
VGA + HDMI / DP
DP + HDMI
2x HDMI / DP / DVI
Audio options: 2x IN + 6x OUT + 2x Mic + SPDIF
2x IN + 2x OUT + 1x Mic
2x HP + 2x Mic
GbE: 2
USB 2.0: 2/4
USB 3.x: 1/4
RS-232/485: 2
2(lim.)
2+2(lim.)
4(lim.)
DIO: 8/16 (except EP4 Platform)
Connectors: Circular MIL-DTL-38999 connectors and Rugged Commercial connectors. All connectors are IP67
Power consumption: 10-65 W
Available enclosure versions: 4”
6”
8”
10”
12”
Custom length up to 48”
Material: Anodized aluminum enclosure with rubber isolating shock mount and internal stack vibration mount
0.125" thick aluminum side walls with heat dissipating fins
Cooling system: Natural convection and conduction cooling for inside modules;
Natural convection cooling for outside surfaces
Dimensions (W x H x L): 7.1" x 5.7" x 4-48"
Enclosure weight: From 2.78 lbs (4”) to 7.01 lbs (12”)
(1.2 kg to 3.2 kg)

Environmental and physical specifications for typical system

Dust/Moisture: IP65-IP66
Operating temperature: -40 to +70°C depending on the chosen platform
Humidity: Operating: 5 to 95 % at +25°C, non-condensing
Vibration: Operating acceleration amplitude up to 6g (3–500 Hz)
Shock: Maximum peak shock acceleration up to 40g
