M-Max HR 3U
Vendor:MicroMax Computer Intelligence
- Details
- Specification
- IP66-rated dust and moisture protection
- Shock handling up to 40g, vibration up to 2.5g
- Power consumption: 10-90 W
- Operating temperature: -40 to +70 °C
- Compatible M-Max® platforms: GX Platform, PR7 Platform, AR Platform, DT Platform, EP4 Platform, CU Platform

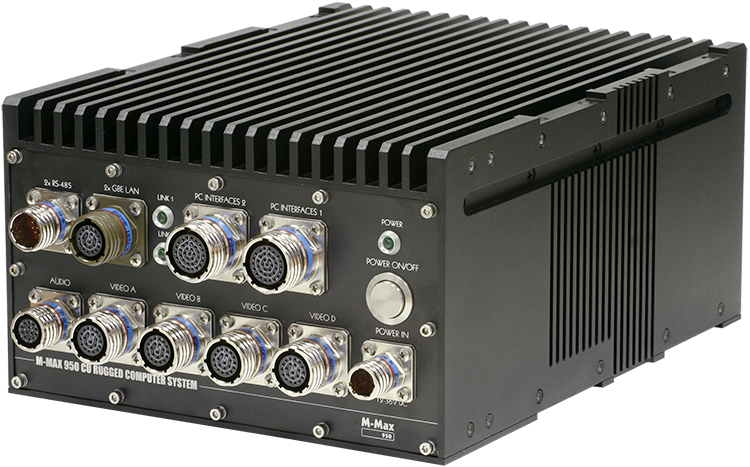

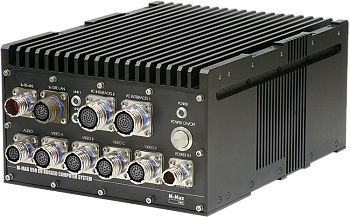

The M-Max® HR 3U rugged industrial system provides reliable operation in tough environments.
The fully-ruggedized 19/2"-type aluminum chassis is fanless and uses natural convection and conduction cooling to comply with MIL-STD-810 standards. Versatile mechanical design of the enclosure allows to combine several systems into one assembly side by side or by stacking, mount them on a flat surface or into a 19″ rack using appropriate mounting parts. COTS technology components allow configuring the system to comply with a wide variety of airborne, marine and ground vehicle applications.
The M-Max® HR 3U system is compatible with the following M-Max® platforms: GX Platform, PR7 Platform, AR Platform, DT Platform, EP4 Platform, CU Platform.
| Technical specifications (depending on the chosen platform) | |
| Compatible M-Max® platforms: |
GX Platform PR7 Platform AR Platform DT Platform EP4 Platform CU Platform |
| CPU options: |
Celeron N3160 1.6–2.24 GHz 4 Cores / 4 Threads Atom E3826 1.46 GHz 2 Cores / 2 Threads Atom E3845 1.91 GHz 4 Cores / 4 Threads i3-6102E 1.9 GHz 2 Cores / 4 Threads i3-6100E 2.7 GHz 2 Cores / 4 Threads i5-6442EQ 1.9–2.7 GHz 4 Cores / 4 Threads, i7-6822EQ 2.0–2.8 GHz 4 Cores / 8 Threads i5-6442EQ 1.9–2.7 GHz 4 Cores / 4 Threads i7-6600U 2.6-3.4 GHz 2 Cores / 4 Threads i7-6822EQ 2.0–2.8 GHz 4 Cores / 8 Threads Xeon E3-1505L V5 2.0 GHz–2.8 GHz 4 Cores / 8 Threads |
| RAM: | 2 to 32 GB |
| GPU options: |
HD 7th Gen. 533 MHz HD 7th Gen. 533–667 / 542–792 MHz HD 520 0.3–1.0 GHz HD 530 0.35–0.95 GHz HD 530 0.35–1.0 GHz GeForce GTX 1050Ti 1.392 GHz |
| SSD options: |
mSATA2 + SATA2 8 GB mSATA3 + 2x SATA3 8 GB 2x mSATA3 + SATA3 8 GB Embedded SATA2 + 2x SATA3 8 / 32 GB (soldered) |
| Video options: |
VGA VGA + HDMI VGA + HDMI / DP DP + HDMI 2x HDMI / DP / DVI 6x HDMI / DP / DVI |
| Audio options: |
2x IN + 6x OUT + 2x Mic + SPDIF 2x IN + 2x OUT + 1x Mic 2x HP + 2x Mic |
| GbE: | 2 |
| USB 2.0: | 2/4 |
| USB 3.x: | 1/4 |
| RS-232/485: |
2 2(lim.) 2+2(lim.) 4(lim.) |
| DIO: | 8/16 (except EP4 Platform) |
| Connectors: | Circular MIL-DTL-38999 connectors and Rugged Commercial connectors. All connectors are IP67 |
| Power consumption: | 10-90 W |
| Material: | Aluminum |
| Heat dissipation: | 90 W |
| Cooling system: |
Natural convection and conduction cooling for inside modules; Natural convection cooling for outside surfaces |
| Dimensions (W x H x L): | 8.66 x5.19 x 11.02 in (220 х 132 х 280 mm) |
| Enclosure weight (approx.): | 9.92 lbs / 4.5 kg |
|
Environmental and physical specifications for typical system |
|
|---|---|
| Dust/Moisture: | IP66 |
| Operating temperature: | -40 to +70°C depending on the chosen platform |
| Humidity: | Operating: 5 to 95 % at +25°C, non-condensing |
| Vibration: | Operating acceleration amplitude up to 2.5g (3–500 Hz) |
| Shock: | Maximum peak shock acceleration up to 40g |
