M-Max VI

Rugged VITA 75-Compliant Conduction-Cooled Systems Family
  • Details
  • Specification
  • IP66-rated dust and moisture protection
  • Shock handling up to 40g, vibration up to 2.5g
  • Power consumption: 11-65 W
  • Operating temperature: -40 to +70 °C
  • Compatible M-Max® platforms: PR7 Platform, EP4 Platform

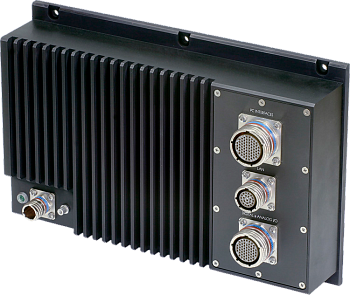

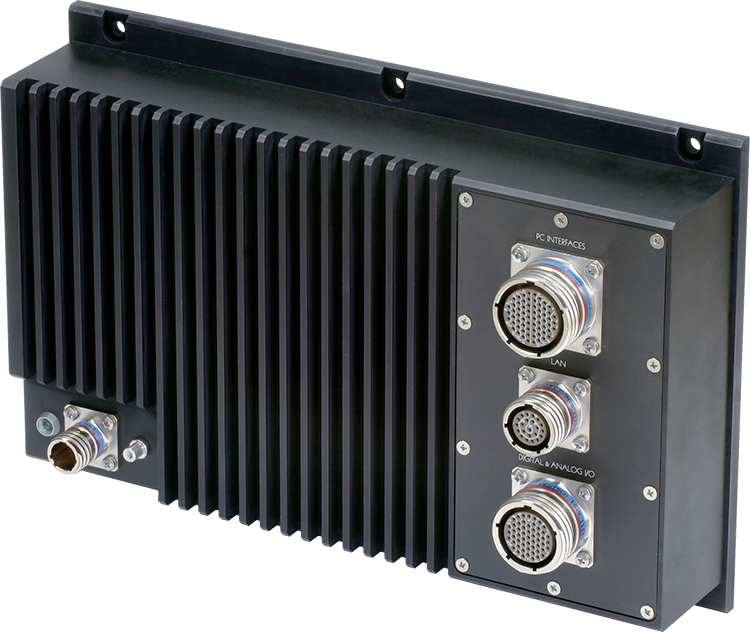

The M-Max® VI system, designed according to the VITA 75 footprint, is a fully sealed rugged system with passive cooling, providing reliable operation in tough environments including transportation (ground, rail, air and marine), agriculture, mining and processing. Its machine-worked aluminum chassis is especially designed for the most challenging environments.

Providing excellent shock and vibration protection, the completely fanless M-Max® VI uses natural convection and conduction cooling and is able to deliver IP66 dust and moisture protection, withstand shocks up to 40g and vibration up to 2.5g.

The system has two enclosure options to better suit your space requirements — full and short version. The VITA 75-compliant M-Max® VI system is tested and guaranteed over temperature range of -40 to +70°C. The embedded power supply (in full version) complies with MIL-STD-704F specification.

The M-Max® VI system is compatible with the following M-Max® platforms: PR7 Platform, EP4 Platform (Quad Core i5-6442EQ only).

Technical specifications (depending on the chosen platform)
Compatible M-Max® platforms:PR7 Platform
EP4 Platform (Quad Core i5-6442EQ only)
CPU options: Atom E3826 1.46 GHz 2 Cores / 2 Threads
Atom E3845 1.91 GHz 4 Cores / 4 Threads
i5-6442EQ 1.9–2.7 GHz 4 Cores / 4 Threads
i7-6822EQ 2.0–2.8 GHz 4 Cores / 8 Threads
RAM: 2 to 32 GB
GPU options: HD 7th Gen. 533–667 / 542–792 MHz
HD 530 0.35–1.0 GHz
SSD options: mSATA2 + SATA2 8 GB
2x mSATA3 + SATA3 8 GB
Video options: VGA + HDMI / DP
2x HDMI / DP / DVI
Audio options: 2x IN + 2x OUT + 1x Mic
2x HP + 2x Mic
GbE: 2
USB 2.0: -/2
USB 3.x: 1/4
RS-232/485: 2(lim.)/4(lim.)
DIO: 16 (PR7 Platform only)
Connectors: Circular MIL-DTL-38999 connectors and Rugged Commercial connectors. All connectors are IP67
Power consumption: 11-65 W
Available enclosure versions:M-Max V75 chassis
M-Max V75 Short chassis
Material:Aluminum
Cooling system:Natural convection and conduction cooling for inside modules;
Natural convection cooling for outside surfaces
Power subsystem (full version):Provides: +5 V @ 8 A, +12 V @ 5 A, +3.3 V @ 1 A
Power (full version):+10 to +36 V DC (isolated) or
+18 to +75 V DC (isolated)
Complies with MIL-STD-704F
AC adapter ~100 to 240 V (optional)
Dimensions (W x H x L):11.2 x 2.28 x 7.4 in (284.48 x 57.8 x 188 mm) (full version) 8 x 1.5 x 7.4 in (203.2 x 38 x 188 mm) (short version)
VITA 75 footprint (without end caps and connectors)
Enclosure weight (approx.):2030 g / 4.48 lbs (full version)
1430 g / 3.15 lbs (short version)

Environmental and physical specifications for typical system

Dust/Moisture:IP66
Operating temperature:-40 to +70°C depending on the chosen platform
Humidity:Operating: 5 to 95 % at +25°C, non-condensing
Vibration:Operating acceleration amplitude up to 2.5g (3–500 Hz)
Shock:Maximum peak shock acceleration up to 40g
