M-Max PD 2

Rugged Pandora-based Conduction-Cooled Systems Family
  • Details
  • Specification
  • IP66-rated dust and moisture protection
  • Shock handling up to 40g, vibration up to 2.5g
  • Power consumption is 3 W
  • Operating temperature: -40 to +70 °C
  • Compatible M-Max® platform: LP Platform

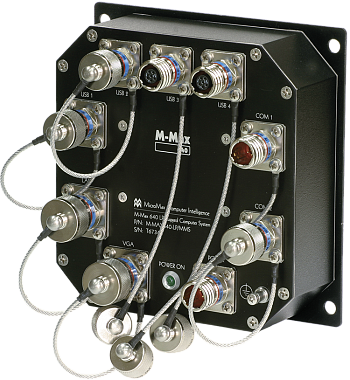

The M-Max® PD 2 is a compact lightweight rugged system in which the number of internal cables is reduced to the minimum. The use of this approach considerably speeds up the assembly process and improves reliability and ruggedness because most or all internal cables can be eliminated.

The entire stack doesn’t require any special corner mounts or guides and is bolted directly to the front plate of the case, forming a rugged, easily-handled assembly.

One end cap of the M-Max® PD 2 system serves as a base plate for the PC/104 stack with the panel I/O board on the top of the stack. Once the stack is complete, it is inserted into the enclosure and bolted into place directly to both the top and the bottom of the enclosure via convenient mounting holes for extra rigidity.

The M-Max® PD 2 system is compatible with the LP Platform.

Technical specifications
Compatible M-Max® platform: LP Platform
CPU: ARM i.MX6 800 MHz 4 Cores / 4 Threads
RAM: 2 GB (soldered)
GPU: Vivante GC2000
SSD (min): mSATA 4 GB (soldered)
Video: VGA + HDMI
Audio: 2x IN + 2x OUT + 1x Mic
GbE: 1
USB 2.0: 4
RS-232: 2 (lim.)
RS-232/485: 2
DIO: 8
Connectors: Circular MIL-DTL-38999 connectors and Rugged Commercial connectors. All connectors are IP67
Power consumption: 3 W
Available enclosure versions: 1.7”
Custom versions on request
Material: Aluminum
Cooling system: Natural convection and conduction cooling for inside modules;
Natural convection cooling for outside surfaces
Dimensions (W x H x L): 5.87 x 6.1 x 2.28 in (149 х 155 х 58 mm)
Weight (approx.): 1.76 lbs (0.8 kg) (average, for typical system)

Environmental and physical specifications for typical system

Dust/Moisture: IP66
Operating temperature: -40 to +70°C
Humidity: Operating: 5 to 95 % at +25°C, non-condensing
Vibration: Operating acceleration amplitude up to 2.5g (3–500 Hz)
Shock: Maximum peak shock acceleration up to 40g
