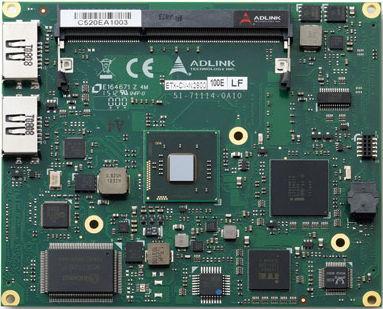

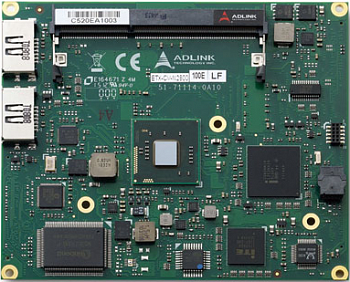

ETX-CV
ETX Module
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
* NA
Discontinued product
Please contact us for availability or replacement options
Please contact us for availability or replacement options
- Dual core Intel® Atom™ Processor D2550/ N2x00
- Up to 4GB Single Channel DDR3 SDRAM at 1066MHz
- Dimension 95 mm x 114 mm
- Extreme Rugged™ operating temperature: -40°C to +85°C (optional)
The ETX-CV is an ETX v3.02 compliant module specially designed to facilitate speedy development of semi custom designs. ETX is an open standard that targets the market for embedded OEM projects. An ETX core combined with a custom made carrier board represents a value solution that allows OEM customers to get to the market fast. The new ETX v3.02 specification adds SATA support to ETX in the form of two connectors on the module itself, leaving the ETX board-to-board interface 100% compatible with baseboards designed under the earlier ETX v2.xx specification.
The ETX-CV is positioned as an entry level ETX module for generic systems but also for systems requiring a full set of graphics features. The module comes with integrated support for high VGA up to 1920×1200 resolution (WUXGA), single/dual channel 18/24-bit LVDS and onboard DisplayPort connector.
The ETX-CV conforms to the latest ETX® 3.02 specification and provides two additional onboard SATA connectors while maintaining full backward compatibility with earlier ETX® standards.
Operating system support includes Windows XP, Windows XP Embedded, Windows 7, WinCE,and Linux. Primary focus is for applications in Medical Diagnostics and Imaging, Gaming, Industrial Automation, Test and Measurement, POS, and Industrial Control.
The dual-core Intel® Atom™ Processor N2000 and D2000 Series on the ETX-CV replaces the previous generation Intel® Atom™ processors N4xx/N5xx. Although much smaller in size, Intel® Atom™ processors share the same architecture as Intel® Core™2 Duo processors and additionally support Intel® Hyper-Threading Technology, allowing more than one code thread to be executed at the same time on a single core. The ETX-CV’s thermal design and powerful CPU core allow it to provide the same or even better performance than earlier generation modules at a more modest power consumption.
The ETX-CV supports up to 4 GB of DDR3 memory on a single SODIMM, incorporates an Intel 10/100BASE-T Ethernet controller, and provides dual channel IDE, two channels SATA, four USB 2.0 ports, two serial ports, one parallel port shared with floppy, one PS/2 keyboard/mouse interface and HD audio.
The ETX-CV fully supports PCI and legacy ISA based on high speed PCI/ISA bridge and is equipped with an AMI Aptio BIOS supporting embedded features such as Remote Console, CMOS backup for battery-less operation, CPU and System Monitoring and Watchdog Timer.
The ETX-CV is positioned as an entry level ETX module for generic systems but also for systems requiring a full set of graphics features. The module comes with integrated support for high VGA up to 1920×1200 resolution (WUXGA), single/dual channel 18/24-bit LVDS and onboard DisplayPort connector.
The ETX-CV conforms to the latest ETX® 3.02 specification and provides two additional onboard SATA connectors while maintaining full backward compatibility with earlier ETX® standards.
Operating system support includes Windows XP, Windows XP Embedded, Windows 7, WinCE,and Linux. Primary focus is for applications in Medical Diagnostics and Imaging, Gaming, Industrial Automation, Test and Measurement, POS, and Industrial Control.
The dual-core Intel® Atom™ Processor N2000 and D2000 Series on the ETX-CV replaces the previous generation Intel® Atom™ processors N4xx/N5xx. Although much smaller in size, Intel® Atom™ processors share the same architecture as Intel® Core™2 Duo processors and additionally support Intel® Hyper-Threading Technology, allowing more than one code thread to be executed at the same time on a single core. The ETX-CV’s thermal design and powerful CPU core allow it to provide the same or even better performance than earlier generation modules at a more modest power consumption.
The ETX-CV supports up to 4 GB of DDR3 memory on a single SODIMM, incorporates an Intel 10/100BASE-T Ethernet controller, and provides dual channel IDE, two channels SATA, four USB 2.0 ports, two serial ports, one parallel port shared with floppy, one PS/2 keyboard/mouse interface and HD audio.
The ETX-CV fully supports PCI and legacy ISA based on high speed PCI/ISA bridge and is equipped with an AMI Aptio BIOS supporting embedded features such as Remote Console, CMOS backup for battery-less operation, CPU and System Monitoring and Watchdog Timer.
| Technical specifications | |
|
Core System | |
|---|---|
| CPU | Dual-core Intel® Atom™ Processor N2600 1.66GHz (1MB L2 cache, 3.5W)
Dual-core Intel® Atom™ Processor N2800 1.83GHz (1MB L2 cache, 6.5W) Dual-core Intel® Atom™ Processor D2550 1.86GHz (1MB L2 cache, 10W) |
| Memory | Single SODIMM socket supporting non-ECC DDR3 at 800/1066 MHz on N2800 and D2550 (max. 4 GB), at 800 MHz on N2600 (max. 2GB) |
| Chipset | Intel® NM10 |
| BIOS | AMI APTIO UEFI in 16 Mbit SPI flash |
| Hardware Monitor | Supply voltages and CPU temperature |
| Watchdog Timer | Programmable timer range to generate RESET |
| Expansion Busses | PCI 32-bit: PCI ver 2.3 at 33MHz, support 4 bus masters
ISA 16-bit (through PCI/ISA bridge), no DMA support SMBus (system), I2C (user) |
|
Video | |
| GPU Core | Integrated in CPU, supports dual independent displays |
| VGA Interface | Analog VGA support by 400 MHz RAMDAC, resolutions up to 1920 x 1200 (WUXGA) |
| LVDS Interface | Single or dual-channel x 18/24 bpp |
| DisplayPort | Connector on the module |
|
Audio | |
| Chipset | Integrated on Intel® NM10 |
| Audio Codec | Realtek ALC 262 HDA compatible |
|
Ethernet | |
| Chipset | Realtek RTL8111 |
| Interface | 10/100 Mbps Ethernet |
|
I/O Interfaces | |
| IDE (PATA) | Dual channel IDE with UDMA 33 |
| SATA | Two channels SATA 3 Gb/s with connectors on module |
| USB | Supports up to four ports USB 2.0 |
|
Super I/O | |
| Chipset | W83627DHG-PT |
| Serial | Two high speed RS-232C ports (COM1/COM2) |
| IrDA | Supports SIR IrDA 1.1 compliant |
| Parallel | SPP, EPP and ECP mode (pin out share with FDD) |
| FDD | One drive (pin out shared with LPT) |
| Keyboard & Mouse | One PS/2 keyboard and one PS/2 mouse |
|
TPM (optional) | |
| Chipset | Atmel AT97SC3204 |
| Type | TPM 1.2 |
|
Power | |
| Input Power | AT mode (5V only) and ATX mode (5V and 5 Vsb) |
| Power States | Supports S0, S1, S3, S4, S5 |
| Power Consumption | 8W with N2600 and 4GB memory typical |
|
Mechanical | |
| Form Factor | ETX® Rev 3.02 |
| Dimension | 95 mm x 114 mm |
|
Operating Systems | |
| Standard Support | Windows XPe / Windows 7, Linux |
| Extended Support(BSP) | Embedded XP/2009, WinCE 7.0, Linux 2.6.x BSP, VxWorks 6.x (on request), AIDI I2C Library for Windows and Linux |
|
Environmental and physical specifications | |
| Operating Temperature | Standard: 0°C to +60°C
Extreme Rugged™: -40°C to +85°C (optional) |
| Storage Temperature | -55°C to +85°C |
| Humidity | 90% at +60°C |
| Shock | 15G peak-to-peak, 11ms duration, non-operation15G peak-to-peak, 11ms duration, non-operation |
| Vibration | Non-operation:1.88Grms, 5-500Hz, each axis |
| Operation | 0.5Grms, 5-500Hz, each axis |
| Certification | CE, FCC, HALT |
| Model | Description |
| ETX-CV-N2600 | ETX® Module with low power Dual Core Intel® Atom™ Processor N2600 1.66GHz with NM10 Chipset |
| ETX-CV-N2800 | ETX® Module with low power Dual Core Intel® Atom™ Processor N2800 1.83GHz with NM10 Chipset |
| ETX-CV-D2550 | ETX® Module with Dual Core Intel® Atom™ Processor D2550 1.86GHz with NM10 Chipset |
| Accessory | |
| THS-CV-BT | Low Profile Heatsink for ETX-CV with through-hole standoffs for top mounting |
| HTS-CV-B | Heatspreader for ETX-CV with threaded standoffs for bottom mounting |
| HTS-CV-BT | Heatspreader for ETX-CV with through-hole standoffs for top mounting |
| THSF-CV-B | High Performance Heatsink with Fan for ETX-CV with threaded standoffs |
