COM Express® Compact Size Type 2 Module with Intel® Atom™ Processor
  • Details
  • Specification
  • Order information
  • Dual-core Intel® Atom™ Processor with Intel NM10 Express Chipset
  • Up to 4 GB DDR3 SDRAM at 800/1066 MHz
  • Three free PCIe x1 lanes
  • Operating Temperature Standard: 0°C to +60°C

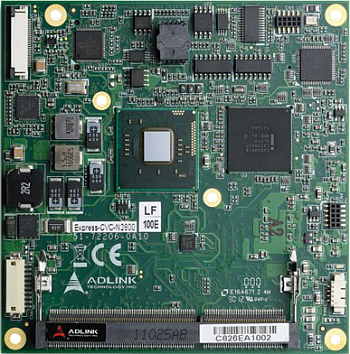

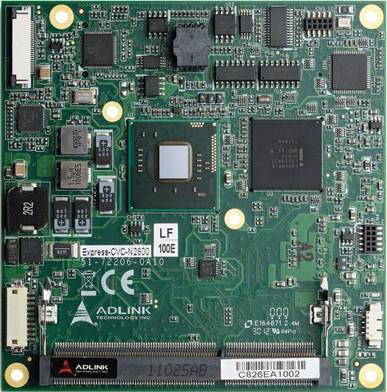

The Express-CVC is a low power, low cost, COM Express Type 2, COM.0 R2.1 module in Compact form factor that is specially designed to facilitate speedy development of semi custom designs. The COM Express standard embodies the convergence of the latest technology standards based on serial differential signaling such as PCI Express, USB 2.0, SATA and LVDS implemented on a compact size Computer on Module. Signals are brought out through two 220-pin board-to-board connectors that permit data transmission rates of up to 5GHz.

Mounting holes connect the module with a custom-made, application specific carrier boards which provide protection from shock and vibration.

The Express-CVCis positioned as an entry level COM Express module for systems that require a small footprint with dual core computing power and DDR3 memory. It is ideal for applications that require Floating Point CPU performance with average graphics support and moderate power consumption levels, such as Robotics, Industrial control and Data Communications. The module supports three different types of a 32nm process Intel® Atom™ processors : Intel® Atom™ N2600 processor with only 3.5W TDP (1M Cache, 1.6 GHz); the Intel® Atom™ N2800 processor (1M Cache, 1.86 GHz) with 6.5W TDP; and the Intel® Atom™ D2700 processor (1M Cache, 2.13 GHz) with 10W TDP.

The Intel® Atom™ processor integrates a graphics processing unit (GPU) has twice the performance as earlier generation Atom GPU and provides CRT and single channel LVDS. The Intel® Atom™ processors all support daul cores and Hyper-Threading Technology with 2-threads per core allowing the Express-CVC to provide excellent performance for multi-tasking or multi OS applications.

The Intel® NM10 PCH allows connection of up to three additional PCI Express x1 ports, while supporting the LAN controller on the 4th port. The module comes with a single onboard Gigabit Ethernet port and one SATA ports. It has legacy support for a single parallel IDE channel, 32-bit PCI and LPC.

The Express-CVC comes equipped with AMI UEFI BIOS supporting embedded features such as: Remote Console, CMOS backup in 16Mbit SPI BIOS, CPU and System Monitoring and Watchdog Timer.

The ADLINK Express-CVC computer-on-module with built-in SEMA Cloud functionality is ready-made for Internet of Things (IoT) applications. The Express-CVC is able to connect legacy industrial devices and other IoT systems to the cloud, extract raw data from these devices, determine which data to save locally and which to send to the cloud for further analysis. The results these analyses can provide valuable information for policy decision making and generate innovative business opportunities.

Technical specifications

Core System

CPU N2600: Dual-core Intel® Atom™ processor 1.66 GHz at 3.5 W
N2800: Dual-core Intel® Atom™ processor 1.86 GHz at 6.5 W
D2550: Dual-core Intel® Atom™ processor 1.86 GHz at 10 W
Memory Single SODIMM socket supports up to 4 GB of non-ECC 800/1066 MHz DDR3 memory (N2600 supports max. 2 GB)
Chipset Intel® NM10 Platform Controller Hub
L2 Cache 1 MB
Hardware Monitor Supply voltages and CPU temperature
Debug Interface XDP SFF-26 extension for ICE debug
Embedded Features Board Info & Statistics, ACPI 3.0, Smart Battery Management support, Watchdog with programmable timer ranges
Expansion Busses 4 PCI Express x1: 0/1/2 are free, 3 is occupied by GbE
32-bit PCI: PCI rev. 2.3 at 33MHz, supporting 4 bus masters
LPC bus, SMBus (system), I2C (user)
SEMA BMC Voltage and Current Monitoring, Flat Panel Control, I2C bus 100/200/400, Failsafe Dual BIOS, Module Logistics, Runtime information, User Flash Area, Power Control, and ECO mode support


GPU Core Integrated PowerVR SGX 545 graphics core and render core frequency at 640 MHz (D2550 & N2800) and 400 MHz (N2600)
Integrated Video Intel® Dynamic Video Memory Technology 4.0 support
Feature Support DirectX 9 compliant Pixel Shader v2.0
400 MHz render clock frequency
Intel® Clear Video Technology
MPEG2 Hardware Acceleration, ProcAmp
VGA Interface Analog RGB display, resolution up to 2048x1536@ 60 Hz
LVDS Interface Single/Dual channel 18/24-bit LVDS


Chipset Integrated in Intel® NM10 Platform Controller Hub
Audio Codec On carrier (ALC886)


Chipset Intel® i210 Gigabit Ethernet Controller
Interface 10/100/1000 Mbps Ethernet

I/O Interfaces

Chipset Intel® NM10 Platform Controller Hub
USB Supports up to eight ports USB 2.0
SATA One ports SATA 3 Gb/s (optional 2ports without PATA support)
IDE (PATA) SATA to PATA bridge on SATA channel 1, Master only
Super I/O BIOS support for legacy free or legacy with two types of Super I/O (Winbond W83627HG and W83627DHG-PT)

TPM (optional)

Chipset Atmel AT97SC3204T
Type TPM 1.2


Input Power 5~20V only (AT mode)5~20V and 5 Vsb +/- 5% (ATX mode)
Power States Supports S0, S1, S3, S4, S5
Power Consumption 9W with N2600 and 4GB memory typical
Smart Battery Support Yes


Form Factor Compact size: 95 mm x 95 mm
Compatibility COM Express® Type 2, COM.0 R2.1
Compact form factor 95 mm x 95 mm
Operating Systems Standard Support: Windows XP(e), Windows 7, Linux
Extended Support (BSP): Windows XPe, WES 7 support package, Linux 3.2.x BSP, VxWorks 6.x BSP, AIDI Library for Windows and Linux

Environmental and physical specifications

Operating Temperature Standard: 0°C to +60°C
Storage Temperature -20°C to +80°C
Humidity 90% at +60°C
Shock 15G peak-to-peak, 11ms duration, non-operation
Vibration Non-operating: 1.88 Grms, 5-500 Hz, each axis
Operating: 0.5 Grms, 5-500 Hz, each axis
Certification CE, FCC, HALT
Model Description
Express-CVC-N2600 COM Express® Compact Size Type 2 Module, Express-CVC with Dual Core Intel® Atom™ Processor N2600 1.66Gz
Express-CVC-N2800 COM Express® Compact Size Type 2 Module, Express-CVC with Dual Core Intel® Atom™ Processor N2800 1.83Gz
Express-CVC-D2550 COM Express® Compact Size Type 2 Module, Express-CVC with Dual Core Intel® Atom™ Processor D2550 1.86Gz
HTS-CVC-B Heatspreader for Express-CVC with threaded standoffs
THS-CVC-B Low Profile Heatsink for Express-CVC with threaded standoffs
THSF-CVC-B Heatsink with Fan for Express-CVC with threaded standoffs
HTS-CVC-BT Heatspreader for Express-CVC with through hole for top mounting
THS-CVC-BT Low profile heatsink for Express-CVC with through hole for top mounting
