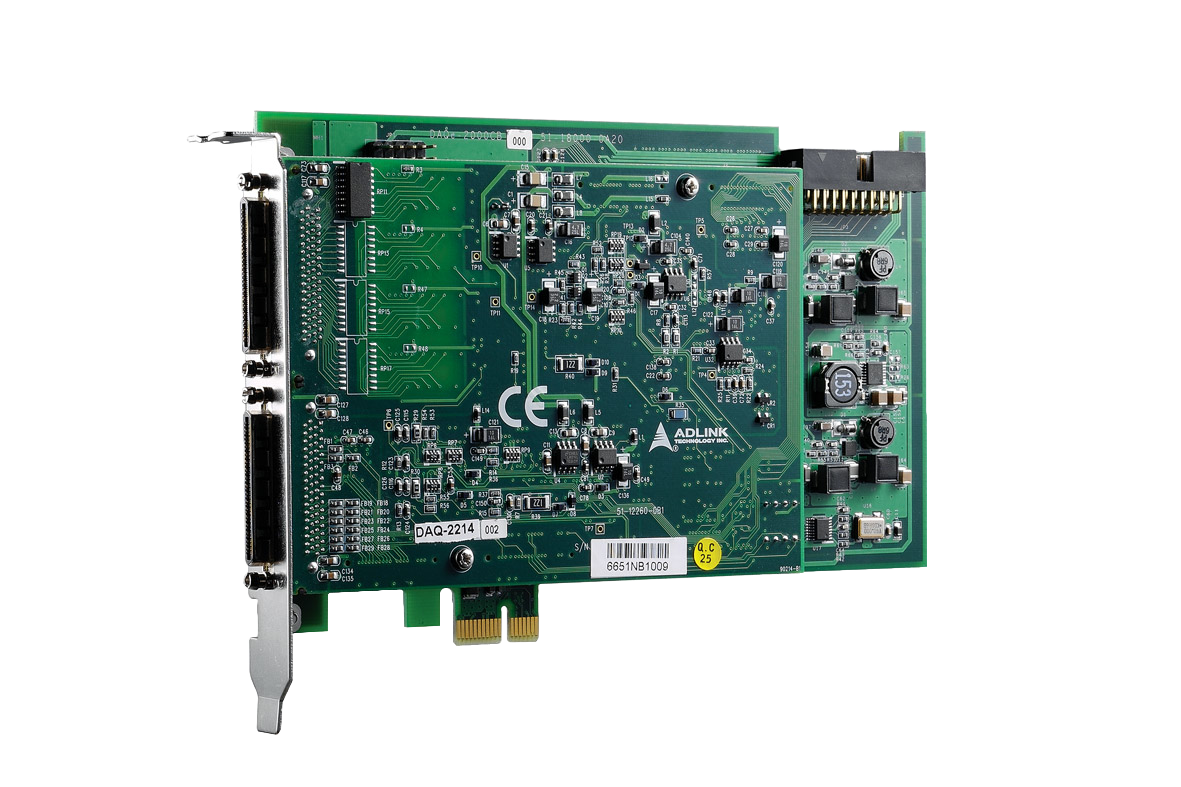

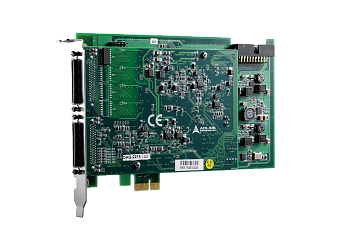

ADLINK DAQe-2213/2214 can sample up to 16 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 8 AI channels in order to achieve maximum noise elimination.
Technical specifications | |
Analog Input |
|
---|---|
Resolution | 16 Bit, no missing codes |
Number of channels | 16 single-ended or 8 differential (software selectable per channel) |
Channel gain queue size | 512 |
Maximum update rate | 250 kS/s |
Programmable gain | 1, 2, 4, 8 |
Bipolar input ranges | ±10 V, ±5 V, ±2.5 V, ±1.25 V |
Unipolar input ranges | 0-10 V, 0-5 V, 0-2.5 V, 0-1.25 V |
Offset error | ±1 mV |
Gain error | ±0.06% of FSR |
Input Coupling | DC |
Overvoltage protection | Power on: Continuous ±30 V, Power off: Continuous ±15 V |
Input Impedance | 1 GΩ/100 pF |
Trigger sources | Software, external digital/analog trigger, SSI bus |
Trigger modes | Pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger |
FIFO buffer size | 1 k samples |
Data transfers | Polling, scatter-gather DMA |
Analog Output (DAQ/DAQe-2214) |
|
Resolution | 12 Bit |
Number of channels | 2 voltage outputs |
Output ranges | 0-10 V, ±10 V, 0-AOEXTREF, ±AOEXTREF |
Maximum update rate | 1 μs |
Slew rate | 20 V/μs |
Settling time | 3 μs to ±0.5 LSB accuracy |
Offset error | ±2 mV |
Gain error | ±0.04% of max. output |
Driving capacity | ±5 mA |
Stabililty | Any passive load, up to 1500 pF |
Trigger sources | Software, external digital/analog trigger, SSI bus |
Trigger modes | Post-trigger, delay-trigger, and repeated trigger |
FIFO buffer size | 1 k samples |
Data transfers | Programmed I/O, scatter-gather DMA |
Digital I/O |
|
Number of channels | 24-CH 8255 programmable input/output |
Compatibility | 5 V/TTL |
Data transfers | Programmed I/O |
General-Purpose Timer/Counter |
|
Resolution | 16 Bit |
Number of channels | 2 |
Compatibility | 5 V/TTL |
Base clock available | 40 MHz, external clock up to 10 MHz |
General Specifications |
|
Auto Calibration | Yes (+5 V, ±2 ppm/˚C) |
Dimensions |
175 mm x 107 mm (not including connectors) (DAQ-2213/2214) 168 mm x 107 mm (not including connectors) (DAQe-2213/2214) |
Connector | 68-pin VHDCI-type female |
Power requirements |
+5 V 1.2 A typical (DAQ-2213) +3.3 V 0.84 A, +12 V 0.604 A typical (DAQe-2213) +5 V 1.2 A typical (DAQ-2214) +3.3 V 0.77 A, +12 V 0.572 A typical (DAQe-2214) |
Environmental and physical specifications |
|
Operating temperature | 0˚C to 55˚C (32˚F to 131˚F ) |
Storage temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
Humidity | 5 to 95%, non-condensing |
Model | Description |
DAQe‑2213 | Low-Cost 16-CH 16-Bit 250 kS/s Multi-Function DAQ PCI Express Card without Analog Outputs |
DAQe‑2214 | Low-Cost 16-CH 16-Bit 250 kS/s Multi-Function DAQ PCI Express Card |
Accessory | |
DIN-68S-01 | Termination board with one 68-pin SCSI-II connector with DIN socket |
ACL‑10568‑1 | 68-pin SCSI-VHDCI cable (mating with AMP-787082-7), 1M |
ACL-SSI-4 | SSI Bus cable for four devices |
