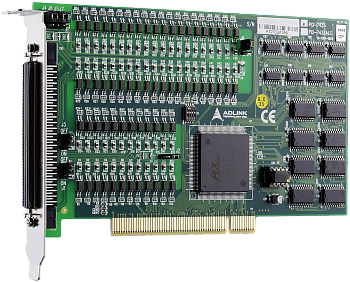

PCI-7432/7433/7434

64-CH Isolated Digital I/O PCI Cards
  • Details
  • Specification
  • Order information
  • Supports a 32-bit 5 V PCI bus
  • 2500 VRMS optical isolation
  • Sink current up to 500 mA on each isolated output
  • Operating temperature: 0°C to +60°C

ADLINK’s cPCI/PCI-743X series cards are 64-CH high-density digital input and/or output cards that provide a robust 2,500 V isolation protection and are suitable for most industrial applications.

The wide input range of the cPCI/PCI-7432 and cPCI/PCI-7433 makes it easy to sense the status of external devices. There are several options for PCI-743X series, such as normal version with input range from 0 to 24 V, as well as HIR version with high input range from 0 to 50 V. The PCI- 7433ALC is specifically designed for AC power test system.

The cPCI/PCI-7432 and cPCI/PCI-7434 feature a wide output range from 5 to 35 V, suitable for relay driving and industrial automation applications. The cPCI/PCI-7432 and cPCI/PCI-7433 also provide two interrupt sources on digital input channels, which are easily configurable.

Technical specifications

Isolated Digital Input

Number of channels 32 (PCI-7432/7432HIR, cPCI-7432)
64 (PCI-7433/7433HIR, cPCI-7433)
Maximum input range 24 V, non-polarity (PCI-7432/7433, cPCI-7432/7433)
Digital logic levels 0 V to 24 V, non-polarity
Input high voltage: 5 V to 24 V
Input low voltage: 0 V to 1.5 V
Input resistance 2.4 kΩ @ 0.5 W (PCI-7432, cPCI-7432, cPCI-7433)
2.4 kΩ @ 1 W (PCI-7433)
4.7 kΩ @ 0.5 W (PCI-7432HIR)
4.7 kΩ @ 1 W (PCI-7433HIR)
Isolation voltage 2500 VRMS: PCI-7432/7432HIR/7433/7433HIR
5000 VRMS: cPCI-7432/7433
Interrupt sources Digital input channel 0 & 1
Data transfers Programmed I/O

Isolated Digital Output

Number of channels 32 (PCI-7432/7432HIR, cPCI-7432)
64 (PCI-7433/7433HIR, cPCI-7433)
Output type Open collector Darlington transistor
Sink current 500 mA for single channel @ 100% duty cycle
500 mA for all channels @ 20% duty cycle
(PCI-7432/7432HIR/7434, cPCI-7434)
Source current 500 mA for single channel @ 100% duty cycle
260 mA for all channels @ 10% duty
(cPCI-7434P)
Power dissipation Max. 2.25 W per chip (8 DO channels)
(PCI-7432/7432HIR/7434, cPCI-7432/7434)
Max. 1.47 W per chip (8 DO channels)
(cPCI-7434P)
Supply voltage 5-35 V
Isolation voltage 2500 VRMS
Data transfers Programmed I/O

General Specifications

I/O connector 100-pin SCSI-II female
Power requirements PCI-7432/7432HIR, cPCI-7432: +5 V, 530 mA typical
PCI-7433/7433HIR, cPCI-7433: +5 V, 500 mA typical
PCI-7434, cPCI-7434P: +5 V, 560 mA typical
Dimensions (not including connectors) 156 mm x 106 mm (6.08" x 4.13") (PCI-7432 & PCI-7432HIR)
175 mm x 107 mm (6.82" x 4.17") (PCI-7433, PCI-7433HIR)
156 mm x 106 mm (6.08" x 4.13") (PCI-7434)
156 mm x 106 mm (6.08" x 4.13") (PCI-7434P)
160 mm x 100 mm (6.24" x 3.9") (cPCI-7432/7433/7434)

Environmental and physical specifications

Operating temperature 0˚C to 60˚C (32˚F to 140˚F)
Storage temperature -20˚C to 80˚C (-4˚F to 176˚F)
Humidity 5% to 95%, non-condensing
Model Description
PCI‑7432 32-CH Isolated DI & 32-CH Isolated DO Card. RoHS-compliant
PCI‑7432HIR 32-CH Isolated DI & 32-CH Isolated DO Card with high input range (input resistor=4.7k Ohm)
PCI‑7433 64-CH Isolated DI Card, RoHS-compliant
PCI‑7433HIR 64-CH Isolated DI Card with high input range (input resistor=4.7k Ohm)
PCI‑7434 64-CH Isolated DO Card, RoHS-compliant
Accessory
DIN‑100S‑01 Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included.)
ACL‑102100‑1 100-pin SCSI-II cable (mating with AMP-787082-9), 1 M
