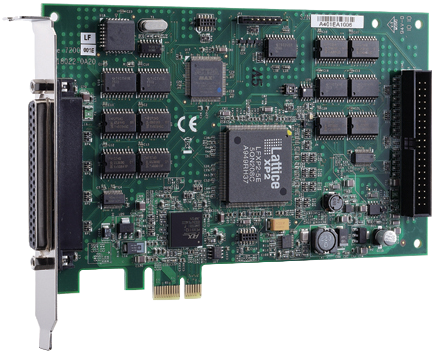

PCIe-7200
32-CH DI & 32-CH DO 12 MB/s High-Speed Card
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 32-CH TTL digital inputs and 32-CH TTL digital outputs
- Up to 12 MB/s transfer rate
- x1 lane PCI Express interface
- Operating temperature: 0°C to +60°C
ADLINK’s PCI/PCIe-7200 are high-speed digital I/O cards consisting of 32 digital input channels, and 32 digital output channels. High-performance designs and the state-of-the-art technology make these cards suitable for high-speed data transfer and pattern generation applications.
The PCI/PCIe-7200 performs high-speed data transfers using bus-mastering DMA via 32-bit PCI bus architecture. The maximum data transfer rates can be up to 12 MB per second. Several digital I/O transfer modes are supported, such as direct programmed I/O control, timer pacer control, external clock mode and handshaking mode. They are very suitable for interfacing high-speed peripherals with your computer system.
| Technical specifications | |
|
Digital I/O |
|
|---|---|
| Channels |
32-CH digital inputs 32-CH digital outputs |
| Compatibility | 5 V/TTL |
| Data transfer rate |
12 MB/s with external 3 MHz clock, handshaking or external strobe 8 MB/s with internal 2 MHz timer pacer |
| Digital logic levels |
Input high voltage: 2-5.25 V Input low voltage: 0-0.8 V Output high voltage: 2.7 V minimum Output low voltage: 0.5 V maximum |
| Output driving capacity | Source current: 3.0 mA Sink current: 24 mA |
| Data transfers | Programmed I/O, interrupt, bus-mastering DMA |
| Programmable Counter |
Base clock: 4 MHz Timer 0: DI clock source Timer 1: DO clock source Timer 2: Base clock source of timer 0 & 1 |
| Interrupt | Sources: EO_ACK, EI_REQ, Timer 0, Timer 1 or Timer 2 |
| I/O connector |
PCI/PCIe-7200: -37-pin D-sub female -40-pin Header |
| Power requirements |
12 V @ 200 mA 3.3 V @ 500 mA |
| Dimensions (not including connectors) | 148 mm x 102 mm |
|
Environmental and physical specifications |
|
| Operating temperature | 0˚C to 60˚C |
| Storage temperature | -20˚C to 80˚C |
| Humidity | 5% to 95%, non-condensing |
| Model | Description |
| PCIe‑7200 | 12 MB/s High Speed 32-CH DI & 32-CH DO PCI Express Card |
| Accessory | |
| DIN-37D-01 | Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting (Cables are not included) |
| ACLD-9137-01 | General-Purpose Terminal Board with One 37-pin D-sub Male Connector |
| ACLD-9137F-01 | General-Purpose Terminal Board with One 37-pin D-sub Female Connector |
| ACL‑10137‑1MM | 37-pin D-sub male/male cable, 1M |
| ACL-10137-1MF | 37-pin D-sub male/female cable, 1M |
