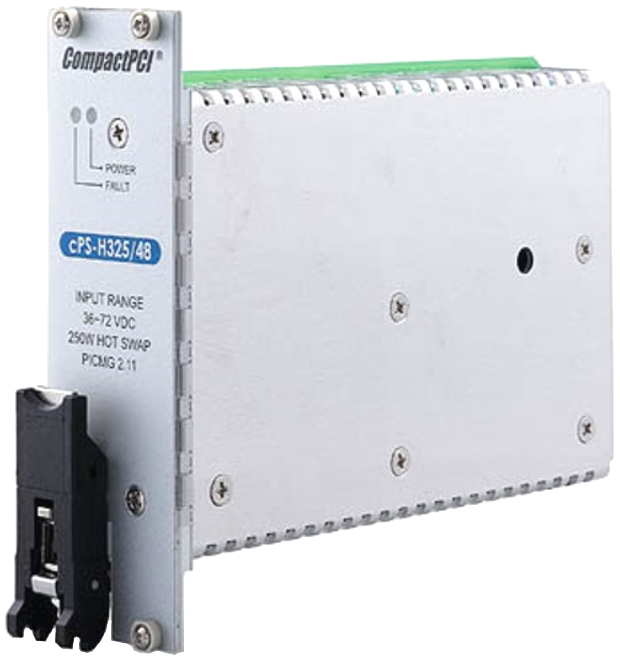

PICMG 2.11 47-Pin Hot-Swap Redundant 3U CompactPCI 8HP Power Module with 36-72 VDC Input
  • Details
  • Specification
  • Order information
  • Input Voltage: 36-72 VDC
  • 250 W DC output
  • Hot swappable
  • Operating temperature: -40°C to +70 °C

PICMG 47-pin hot-swap redundant 3U CompactPCI 8HP 250 W power module with 36-72 VDC Input. Operating temperature: −40°C to +70 °C.

Technical specifications
PICMG Standards PICMG 2.11 CompactPCI Power Interface compliant
Form Factor 3U cPCI (100 x 160mm), 2-slot (8HP) wide
Input Voltage 36-72 VDC
Input Current typ. 20A @ 48 VDC
Output Voltage/Current 5V Typ. 25.0A, Max. 33.0A
3.3V: Typ. 18.0A, Max. 33.0A
+12V: Typ. 5.0A, Max. 6A
-12V: Typ. 0.5A, Max. 1.5A

0.5 A @ +5 V Minimum Load

Max. load is the continuous operating load of each rail individually. The max. load of each rail cannot be drawn from all outputs simultaneously.
Output Wattage Typical 250W continuous
Line Regulation Typical 0.1%
Load Regulation Typical ± 1-2%
Ripple 50 mV @ +5 V and 3.3 V outputs
120 mV @ +12 V and -12 V outputs
Hold-up Time 5 ms after power fail signal
Efficiency Typical 78-79%
Output Voltage Sense Available at 5V, 3.3V, and +12V outputs and current sharing
N+1 Redundancy: Equipped with internal OR-ing diodes at all outputs for N+1 redundancy operation
Remote ON/OFF: Available at [INH#] & [EN#]
Power Failure Signal Available at [FAL#] pin
Power Degradation Signal Available at [DEG#] pin
Protections Over Temperature Protection (OTP): +70˚C
Over Current Protection (OCP): installed at each rail
Over Load Protection (OLP): typical 120% max. load, fully protected against output overload or short circuit
Over Voltage Protection (OVP): built-in at all outputs
Status LED [POWER] means valid input voltage
[FAULT] means a critical fault
Earth leakage <0.5 mA @ 230 VAC <0.5 mA @ 48 VDC <0.5 mA @ 24 VDC

Environmental and physical specifications

Operating temperature -40°C to +70°C at full load with at least 600LFM air flow Derates linearly to 60% at +70°C for H325/24 (A warm-up time 3 minutes is required after cold start at temperatures from -40°C to +0°C).

-40°C to +75°C at full load with specified air flow Derates linearly to 60% at +75°C for H325/110 (A warm-up time 10 minutes is required after cold start at temperatures from 0°C to -40°C)
Storage temperature -40°C to +85°C
Cooling requirement Min. 20 CFM is required for typical full power rating
Humidity 5% to 95%, non-condensing
Shock 15 G peak-to-peak, 11 ms duration, non-operation
Vibration Non-operation: 1.88 Grms, 5-500 Hz, each axis
Certifications IEC950, EN 55022, FCC Class A, IEC60950 Class I
Model Description
cPS‑H325/48 PICMG 2.11 47-pin hot-swap redundant 3U CompactPCI 8HP 250 W power module with 36-72VDC Input
