MM-PSF

Isolated PC/104 Power Supplies
  • Details
  • Specification
  • Order information
  • Power input: 10V to 36V DC (isolated)
  • Power output: 12V, 5V and 3.3V DC
  • Galvanic isolation: 500V DC
  • Operating temperature: -40 to +85 °C

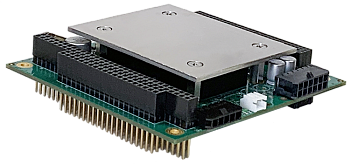

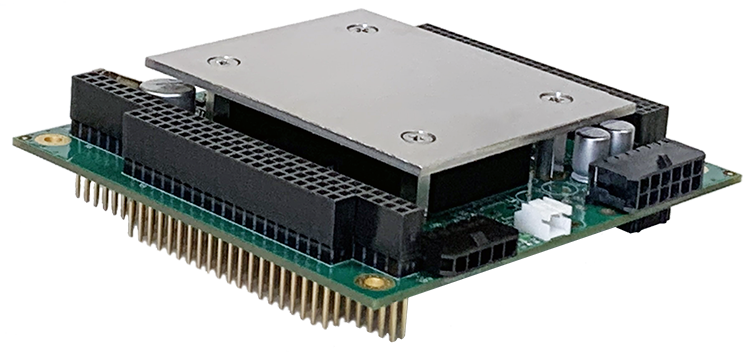

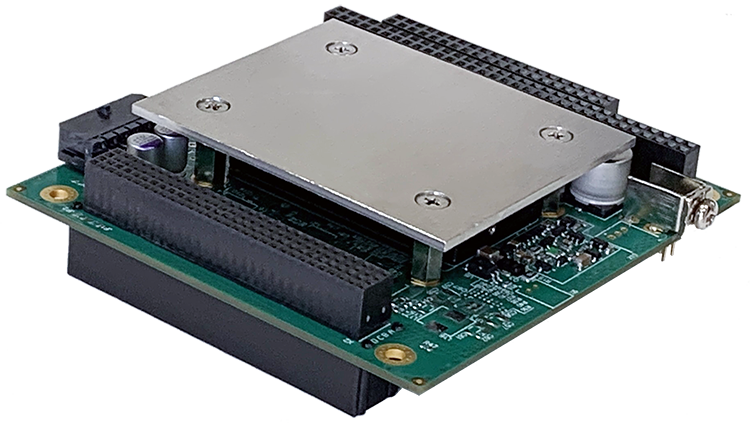

The MM-PSF is an embedded isolated power supply by MicroMax Computer Intelligence, designed specifically for РС/104 systems.

It provides a РС/104 system with 12V, 5V and 3.3V DC output voltages. The combined power of the device is up to 60W.

The power supply features reverse polarity protection and transient voltage surge suppression. The MM-PSF has advanced electromagnetic compatibility (MIL-STD-461F compliant).

The output power is supplied to latching connectors, as well as to system buses PCI-104 and PC/104. The device features short circuit protection with no time limit. As soon as the connection is recovered, the MM-PSF restores power supply automatically.

The MM-PSF is designed in compliance with vehicle standards MIL-STD-1275D and MIL-STD-704F.

Technical specifications
Power Input 10V to 36V DC (isolated)
Power Output 12V DC (5A), 5V DC (12 A) and 3.3V DC (7 A)
Maximum power load Up to 60W
Efficiency 83%
Secondary converter: 90%
Galvanic isolation 500 V DC
Line regulation 5В: ±1%
3В: ±2%
Switching frequency 250kHz, PWM
Secondary converter: 2MHz
External control “On” - input voltage at “Ctrl” from 1V regarding “-Vin” or open input;
“Off” - input voltage at “Ctrl” from 0 to 0.5V regarding “-Vin”
Output voltage regulation No
Current overload protection 150% of maximum current
Input/output insulation resistance 1 GOhm @ 500V DC
Short circuit protection No time limit, automatic power restore

Environmental and physical specifications

Operating temperature -40°C to +85°C (-40°F to +185°F)
Thermal protection/shutdown
+105°С (+221°F)
Storage temperature
-55°C to +125°C (-67°F to +257°F)
Model Description
MM-PSF60I-24-12 MM-PSF power supply, 60W, 12V DC @ 5A
MM-PSF60I-24-35 MM-PSF power supply, 60W, 5V DC @ 12A and 3.3V DC @ 7A
MM‑PSF60I‑24‑512 MM-PSF power supply, 60W, 12V DC @ 5A and 5V DC @ 5A
MM-PSF40I-24-5 MM-PSF power supply, 40W, 5V DC @ 8A
