Power Factor Correction module
Info only Vendor:
Info only
  • Details
  • Specification
  • Input voltage range: 85-264Vrms
  • 390VDC output voltage
  • 350W output power
  • High efficiency: >95% (230Vrms)

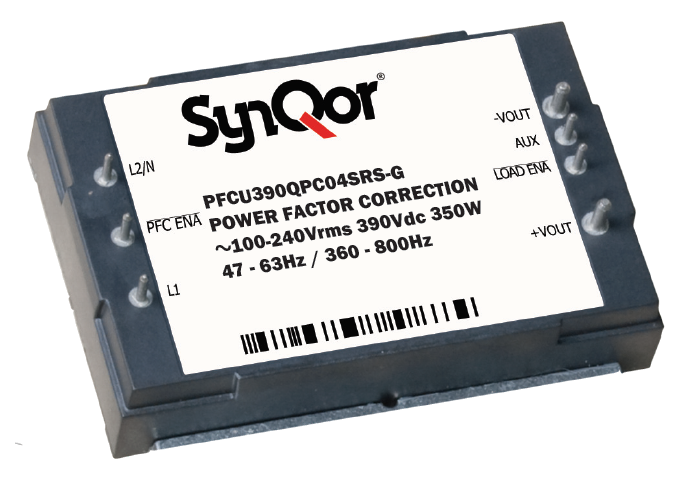

The PFCQor® Power Factor Correction module is an essential building block of an AC‑DC power supply. Used in conjunction with a holdup capacitor, SynQor’s DC‑DC converters and SynQor’s AC line filter, the PFCQor will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. The module is supplied completely encased to provide protection from the harsh environments seen in many industrial and transportation environments.

Technical specifications
Operational features Input voltage range: 85-264Vrms
Universal input frequency range: 47 - 63Hz / 360 - 800Hz
350W output power
≥0.99 Power Factor
High efficiency: >95% (230Vrms)
Internal inrush current limit
Auxiliary 10V bias supply
Mechanical features Industry standard quarter-brick pin-out
Size: 1.54” x 2.39” x 0.50” (39.0 x 60.6 x 12.7 mm)
Total weight: 3.07 oz. (87 g)
Flanged baseplate version available
Safety features Input/Output to baseplate isolation 2150Vdc
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
CE Marked
Control features PFC Enable
Load Enable (also: Power Out Good signal)
Protection features Input current limit and auto-recovery short circuit protection
Auto-recovery input under/over-voltage protection
Auto-recovery output over-voltage protection
Auto-recovery thermal shutdown
Compliance features (With SynQor AC Line Filter)
EN55011 and EN55022, FCC PART 15
