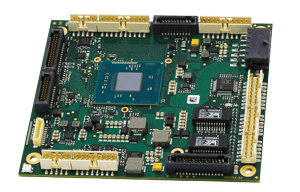

Intel Atom Dual/Quadcore 4th Generation SoC/Bay Trail PCIe/104 Form Factor SBC
  • Details
  • Specification
  • Order information
  • Intel E3800 Series SoC Processors; DC/Quad
  • Up to 8 GB DDR3L-1333
  • Dimensions: 90 mm x 96 mm
  • Extended operating temperature: -40°C to +85°C

The ADLE3800PC is based on Intel’s first System-on-Chip (SoC) E3800 Atom product family which is built using Intel’s 22nm 3D Tri-gate process. It offers vastly superior compute performance and energy efficiency including Intel’s E3800 7th generation graphics engine for stunning graphics performance. Improved power management capabilities result in standby power measured in milliwatts with days of standby time.

The ADLE3800PC is ideal for rugged, extended temperature intelligent systems with stringent size, weight, and power (SWAP) requirements. It has a wide thermal junction temperature (Tj) ranging from −40°C to +85°C.

Its graphics engine is capable of decoding 10 or more streams of 1080p video, has integrated hardware acceleration for video decode of H.264, MVC, VPG8, VC1/WMV9 and others standards. It also supports DirectX 11, Open GL 4.0, full HD video playback, dual display support and a maximum resolution of 2560×1600 @ 60Hz.

It’s particularly suited for extreme environments such as industrial control and automation, in-vehicle communication and infotainment systems for commercial transportation fleets. It’s superior graphics and low power also make it ideal for rugged mobile computing, portable medical devices, and mobile autonomous systems for civil, commercial and defense applications.

Technical specifications
Processors Intel E3800 Series SoC Processors; DC/Quad
TDP 8W to 10W
Memory Up to 8 GB DDR3L-1333; 1.35V SoDIMM204 Socket
SATA 2x SATA 3 Gb/s; Shared with mSATA Socket
LAN 2x 10/100/1000 Mbit Ethernet LAN Port; Intel i210
RS232 2x RS232 COM Ports
USB 8x USB 2.0 Total:
4x USB 2.0 Pin Connector
2x PCIe Connector
1x Mini PCIe Socket
1x USB 3.0 (Backward Compatible to USB 2.0)
Video Onboard VGA/DVI, DisplayPort/HDMI
Audio 7.1 HD Audio with SPDIF In/Out
GPIO Discrete 16bit GPIO Port; PCA9535BS, No Interrupt
Expansion Type 2 Downward-Stacking PCIe/104 V2.01 with 2x Gen2 PCIe x1 Lanes; LPC, SMBus, 2x USB 2.0
PCI Express Mini Card 1.2 Socket; Compatible with Mini PCIe or mSATA Modules
Operating systems Windows 7, Windows 8, Windows 10, Linux Compatible
Dimensions 90 mm x 96 mm, PCIe/104 Form Factor
Microsoft Azure Microsoft Azure Certified
Input power 5VDC, 5VS
(12VDC for PCIe/104 Connector)

Environmental and physical specifications

Operating Temperature -40°C to +85°C (optional)
Model Description
ADLE3800PC-E3845 Intel E3845; QC, 1.91 GHz, 2MB, 10W TDP
ADLE3800PC-E3827 Intel E3827; DC, 1.75 GHz, 1MB, 8W TDP
4GB DDR3L-1600 DDR3L-1600MHz 4GB Standard Temperature
8GB DDR3L-1600 DDR3L-1600MHz 8GB Standard Temperature
4GB DDR3L-1600-EX DDR3L-1600MHz 4GB Extended Temperature
8GB DDR3L-1600-EX DDR3L-1600MHz 8GB Extended Temperature
ADL-ET Extended Temperature Screening (-40°C to +85°C)
UNDERFILL BGA underfill req’d for <1nm BGA solderballs w/ Ext Temp
COATING Conformal Coating
UNDERFILL/BONDING/COATING Underfilling, Bonding, and Conformal Coating
ADLE3800PC-SP0600 0.600” Heat Spreader
ADLE3800PC-SP1000 1.000” Heat Spreader
ADLE3800PC-LP Low Profile Passive Heatsink
ADLE3800PC-FANSINK 2" x 2" Fansink
ADLE3800PC-CK Standard Cable Kit for ADLE3800PC
