Intel E3800 Series Edge-Connect SBC
  • Details
  • Specification
  • Order information
  • Low power Atom processor (8W TDP)
  • 4GB soldered DRAM (DDR3-1333 MHz)
  • Small Size (75mm x 75mm)
  • Extended operating temperature: -40°C to +85°C

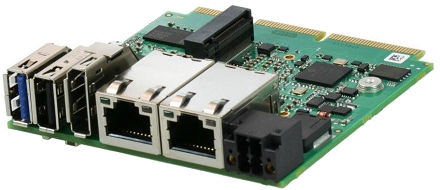

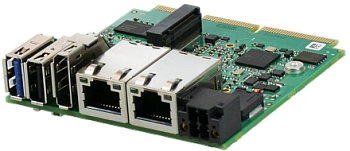

Measuring just 75mm x 75mm, the ADLE3800SEC is an embedded SBC specially optimized for Size, Weight, and Power (SWAP) applications. Based on the E3800 series Intel Atom™ SoC, this tiny board delivers maximum performance in the smallest possible size. It features a quad-core processor with up to 2MB onboard cache, and an integrated Intel HD Graphics engine with support for DirectX 11, Open GL 4.0, and full HD video playback.

About Edge-Connect Architecture

Via the backside board-edge connector, additional I/O can easily be made accessible using standard and customer-specific breakout boards. Provides easy expansion and helps reduce cabling, integration time and system size all while increasing quality and overall MTBF.

Connecting to sensors, cameras and storage is easy with a full range of onboard I/O: 2x Gigabit LAN, 1x USB 3.0, 1x USB 2.0, 2x PCie, and SATA. The Intel HD Graphics engine supports video output in either HDMI or Display Port format. An onboard M.2 socket allows users to install the fastest Solid State storage solutions on the market. Extended Temperature Ratings and hard-mounted Edge-Connect design make the ADLE3800SEC ideal for rugged embedded applications.

Technical specifications
Processors E3845 - quad core Atom, 1.91GHz, 2MB cache
E3827 - dual core Atom, 1.75GHz, 1MB cache
Memory Up to 4GB DDR3-1333MHz (soldered onboard)
Graphics Display Port (2560x1600)
Storage 1x M.2 Socket (Key B, 2242); 1x SATA 2.0 (6GB/s)
I/O 2x GBLAN, 2x USB, 1x Display Port, 2xPCIe, 2x USB, 1x SATA, SM-Bus, 1x Display Port
Operating System Windows 7, 8, 10 & Linux
Input Voltage 20 - 30VDC
Galvanic Isolation = 1500Vrms
Dimensions 75mm x 75mm

Environmental and physical specifications

Operating Temperature -40°C to +85°C (optional)
Model Description
ADLE3800SEC-E3845 Intel E3845 Atom Processor; Quad Core, 1.91 GHz, 2MB Cache, 10W TDP
ADLE3800SEC-E3827 Intel E3827 Atom Processor; Dual Core, 1.75GHz, 1MB Cache, 8W TDP
ADL-ET Extended Temperature Screening (–40°C to +85°C)
UNDERFILL BGA underfill req’d for –40C operation
COATING Conformal Coating
UNDERFILL/BONDING/COATING Underfilling, Bonding, and Conformal Coating
ADLE3800SEC-Spreader Low-Profile Heat Spreader
