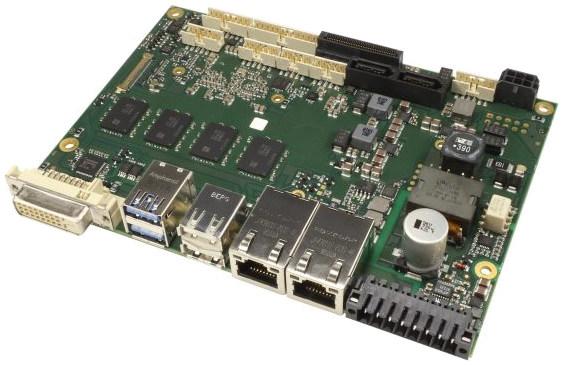

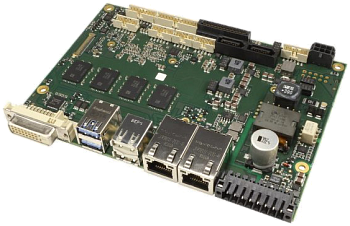

The ADLE3900HD 3.5″ SBC is based on the Intel E3900‑Series SoC Atom. These processors are rated for Tj = −40°C to 110°C making them ideal for a variety of industrial applications such secure networking, IIoT gateway or other industrial use scenarios.
The ADLE3900HD makes use of Intel’s long-term embedded roadmap and has a planned 15 year availability. This allows for long-life customer applications such as IIoT intelligent control for ICS/SCADA, intelligent machinery, traffic engineering and others.
Applications
Industrial IoT Edge devices, Cyberthreat Security devices, ICS / SCADA devices, Rugged industrial systems, Traffic engineering, Security video surveillance, Small Scale robotics, remote datalogging and man-wearable computing.
Technical specifications | |
Processors |
Formerly Codenamed Apollo Lake E3950 - QC, 1.6-2.0 GHz, 2MB, 12W TDP E3930 - DC, 1.3-1.8 GHz, 2MB, 6.5W TDP |
Memory | 8GB LPDDR4 (soldered onboard) |
Display |
1x DVI-D 1x I-PEX Connector for HDMI or DP |
Storage | 2x SATA III connectors |
Security | Firmware TPM 2.0 |
I/O (Front Connectors) |
2x LAN (Intel i210 controller) 2x USB 3.0, 2x USB2.0 |
Onboard I/O Connectors |
1x LAN (Intel i210 controller); 1x RS232; 8bit GPIO; 3x USB 2.0; I-PEX USB3.0; System (Battery, SMBus, Keyboard, Activity LEDs) |
Expansion | 2x40p connector with 1x PCIe X1 lane |
Operating System | Windows and Linux |
Input Power |
20 - 30VDC Galvanic Isolation = 1500Vrms |
Dimensions | 102mm x 147mm |
Environmental and physical specifications |
|
---|---|
Operating Temperature |
-20°C to +70°C (standard) -40°C to +85°C (optional) |
Model | Description |
ADLE3900HD-E3950 | Intel E3950 Atom; Quad Core, 1.6-2.0 GHz, 2MB, 12W TDP |
ADLE3900HD-E3930 | Intel E3930 Atom; Dual Core, 1.3-1.8 GHz, 2MB, 6.5W TDP |
ADLE3900HD-SPDR | Low-Profile Heat Spreader |
Coating, Underfill & Bonding | Conformal Coating of CPU board, Underfill of BGA components and Bonding of high mass components |
ADL-ET | Extended Temperature Screening (-40°C to 85°C) |
ADLEPC-PWR | AC/DC 24VDC Wall Power Adapter |
ADL35-HDMI | I-PEX to HDMI Cable |
ADL35-USB3 | I-PEX to USB3.0 Cable |
ADL35-DVID | I-PEX to HDMI Cable |
M.2 PCIe Modules | Industrial M.2 modules for 802.11, CAN, Serial COM, and many other functions available |
M.2 2242 SATA Modules | Standard and Industrial M.2 SATA modules available |
