ADLQ170HDS
Vendor:ADL Embedded Solutions
- Details
- Specification
- Order information
- 6th Generation Intel Core i3 / i7
- Up to 32GB DDR4-2133
- MTBF > 250,000 hours
- Extended operating temperature: -40°C to +85°C

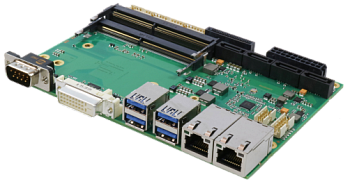

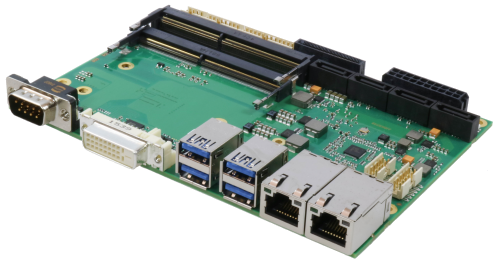

The ADLQ170HDS is the latest in ADL’s line of high‑performance 3.5″ Intel® Core™ single board computers (SBC). It makes use of 6th generation Intel Core Skylake processors and Intel’s Q170 chipset to provide a robust set of features including 32 GB DDR4 DRAM, 4x SATA 6Gb/s, 4x USB 3.0 and much more.
This makes it ideal for a variety of system-critical industrial applications where these high-performance features are an absolute necessity, but no less critical are less tangible features like high MTBF, long-life availability, hardware and firmware revision control, obsolescence management, technical, engineering and design support.
Applications
Intelligent PC controller for factory automation machinery and equipment, High-Speed Industrial Storage, Very-High/Ultra-High USB 3.0 Vision Processor, Industrial Data Aggregation and Storage, Industrial IoT Gateways and Controllers, Secure Networking Devices, Mobile Telephony, Traffic Engineering, Transportation, Wind Turbine Datalogging and Collision Avoidance, Drone Payload Computing, Oil and Gas IPC and Unmanned Autonomous Systems.
| Technical specifications | |
| Processors | 6th Generation Intel Core Processors. Dual and Quad Core variants. Socket LGA1151 |
| Chipset | Intel Q170 |
| Hardware Monitoring |
Via BIOS-API:CPU and Board Temperature; Board Voltages; Watchdog; Fan Speed; GPIO Control; Boot History Linux and Windows BIOS-API Drivers Avalable. Linux kernel 3.0+ Required. |
| Memory | 2x SODIMM260 1.2V DDR4, Max. 32 GB |
| Graphic controller | CPU Integrated |
| Video BIOS | Intel Extreme BIOS |
| Memory | Max 512MB DVMT |
| DVI | DVI/HDMI 1.4 |
| DVI/HDMI/DisplayPort |
1/1/1 2 Connectors: 1x DVI/HDMI; 1xIPEX DVI/HDMI/DP |
| LCD Resolution |
HDMI 1.4: 2560x1600 @ 60Hz; 4096x2160 @ 24Hz DisplayPort: 4096x2304 @ 60Hz DVI: 1920x1200 @ 60Hz |
| BIOS | AMI Aptio 128 Mbit SPI-Flash |
| BIOS Power Management | APM/ACPI |
| BIOS Speedstep/ATM | Speedstep supported Adjustable Fixed Frequency Available |
| BIOS Powerstates | S0/S1/(S3)/S4/S5 |
| Security | Firmware TPM 2.0 (fTPM) via Intel PTT |
| LAN1 | 10/100/1000 Intel Q170/i219 Phy PXE Boot and WOL (Wake-On-LAN) |
| LAN2 | 10/100/1000 Intel i210 |
| SATA | 4x SATA 6Gb/s |
| SATA RAID | 0/1/5/10 |
| USB 2.0 |
11x (6x Onboard + 5x USB 3.0) USB 3.0 is Backward Compatible to USB 2.0 |
| USB 3.0 | 5x (4x Front Side; 1x IPEX Connector) |
| COM 1 | RS232 (RSD/TXD/TRS/CTS) |
| Operating System | Windows and Linux Compatible with Full Driver Support |
| Watchdog | Yes |
| GPIO | 8 bit |
| Input Power | 3.3V, 5V, 5VS (12V for FAN) |
| MTBF | > 250,000 hours |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature |
-20°C to +70°C (standard) -40°C to +85°C (optional) |
| Model | Description |
| ADLQ170HDS-6700TE | 6th Generation Intel® Core™ i7 2.4GHz 4C, 8MB |
| ADLQ170HDS-6100TE | 6th Generation Intel® Core™ i3 2.7GHz 2C, 3MB |
| DDR4-2133-8GB | DDR4-2133 MHz 8GB Standard Temperature |
| DDR4-2133-16GB | DDR4-2133 MHz 16GB Standard Temperature |
| DDR4-2133-8GB-EX | DDR4-2133 MHz 8GB Extended Temperature |
| DDR4-2133-16GB-EX | DDR4-2133 MHz 16GB Extended Temperature |
| ADLQ170HDS-SPREADER | 0.400” Copper / Aluminum Heat Spreader |
| Coating, Underfill & Bonding | Conformal Coating of CPU board, Underfill of BGA components and Bonding of high mass components |
| ADL-ET | Extended Temperature Screening (-40°C to 85°C) |
