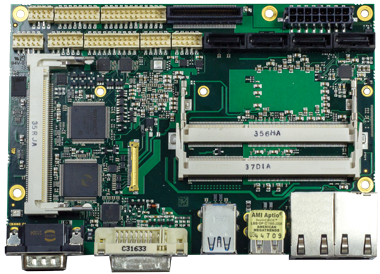

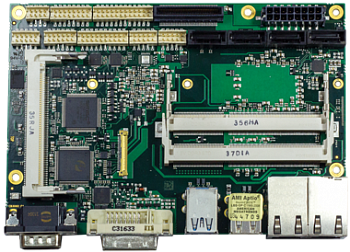

ADLQM87HD
Vendor:ADL Embedded Solutions
- Details
- Specification
- Order information
- Intel Core Quad i7-4700EQ; DC i5-4400E
- Up to 16GB DDR3L-1600
- Dimensions: 4" x 5.8" (102mm x 147mm)
- Extended operating temperature: -40°C to +85°C
The ADLQM87HD features Intel’s 4th generation Intel Core processors with Intel’s latest HD Graphics 4600 engine with support for DirectX11.1, OpenGL 4.0, and OpenCL 1.2. The new Haswell Architecture built on Intel’s low-power 22nm tri-gate process incorporates a new AVX2 instruction set, more instructions per cycle, deeper idle states, more execution units, higher cache bandwidth, and smarter power management with the end result being a significant performance increase with much lower power than the previous Sandy Bridge architecture.
The ADLQM87HD is ideal for mobile and embedded applications where high processor performance with low battery or power usage is critical. It brings unparalleled performance to applications such as radar and sonar processing, image signal processing, tactical command and control, surveillance and reconnaissance, medical imaging and lab analysis, and industrial automation.
In addition to the wide range of applications in which the ADLQM87HD can excel, it also supports a broad set of features. The ADLQM87HD introduces TPM 1.2 and USB 3.0 functionality into ADLES’ 3.5″ SBC product line for the first time . Onboard connectors support both DVI/VGA as well as HDMI/DP. The ADLQM87HD also has 3x RS232 COM ports, 4x SATA 6Gb/s with RAID 0, 1, 5 and 10 support. It also includes 8x USB2.0, 3x USB 3.0, two bootable Gigabit Ethernet LAN ports, HDA 7.1, and a 2×40-pin PCIE expansion connector with four PCIe x1 lanes or one PCIe x4 lane for additional breakout or mezzanine board functionality.
ADL Embedded Solutions offers highly effective active and passive thermal solutions designed for this product. Contact us for more information.
| Technical specifications | |
| Processors | 4th Generation Intel Core Quad/DC i5 / i7 |
| Chipset | PCH Lynx Point QM87 Chipset |
| Memory | Up to 16GB DDR3L-1600; 2x SO-DIMM 204, 1.35V |
| TPM | TPM V1.2 (ATMEL AT97SC3205) |
| Graphic controller |
CPU integrated Memory max. up to 512MB DVMT |
| CRT |
2048 x 1536 max. res. CRT or DVI-I is cabling option |
| DVI / HDMI / DisplayPort |
DVI x2 /HDMI Max res all digital video - 1920 x 1200 HDMI or DVI-D is cabling option |
| BIOS |
Power Management APM/ACPI. Power States : S0/S1/S4/S5 Hardware Monitoring ADL-SST API |
| Audio controller and codec |
Intel QM87 / Codec ALC889 (HDA) 2/6/8 channel support |
| LAN |
LAN1: Intel QM87 / i218 Phy, LAN2: Intel i210 (MAC/Phy) 10/100/1000 Mbit, RPL/PXE/WOL support Jumbo Framing supported |
| Buses |
Configurable 1x PCIe x4 or 4x PCIe x1 Custom 2 x 40-pin header Specials/Options: Mini-PCI socket (mPCI) |
| SATA |
2x SATA 3G, 2x SATA 6G RAID 0/1/5/10 |
| USB |
8x USB 2.0; 3x USB 3.0 Boot options: HD/FDD/CDROM/FD/ZIP |
| Interfaces |
RS232, 1x onboard D-sub, 2x cable header PS/2 Keyboard/Mouse Watchdog Specials/Options: 8-Bit GPIO, Discrete port |
| Supply Voltage | 5V/5VS req’d for CPU; 12V req’d for FAN |
| Dimensions | 102mm x 147mm (4” x 5.8”) |
| Operating Systems | Windows 7, Windows 8, Windows 10, Linux Compatible |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature |
-25°C to +70°C (Requires ADLES Thermal Solution and proper installation) -40°C to +85°C (Extended. Requires ADL-ET and approved Thermal Solution) -40°C to +85°C (Storage) |
| Model | Description |
| ADLQM87HD-i7-4700EQ | 4th Generation Intel Core i7 2.4GHz 4C, 6M, 47W |
| ADLQM87HD-i5-4400E | 4th Generation Intel Core i5 2.7GHz 2C, 3M, 37W |
| DDR3L-DRAM4096-1600 | DDR3L-1600MHz 4GB Standard Temperature |
| DDR3L-DRAM8192-1600 | DDR3L-1600MHz 8GB Standard Temperature |
| DDR3L‑DRAM4096‑1600‑EX | DDR3L-1600MHz 4GB Extended Temperature |
| DDR3L‑DRAM8192‑1600‑EX | DDR3L‑1600MHz 8GB Extended Temperature |
| Other memory options available | |
| ADL-ET | Extended Temperature Screening (-40°C to 85°C) |
| ADLQM87HD-CK | Standard Cable kit for ADLQM87HD |
| ADLCOM-ISOL1 | Galvanically Isolated RS232 COM |
| ADLCOM-ISOL2 | Galvanically Isolated RS485 COM |
| ADLQM87HD-SPREADER | Chassis / Bulkhead mount heat spreader for ADLQM87HD For Quad and Dual Core Variants. |
| ADL35-BBHS | Large Heatsink for Bench Testing |
| ADL35-LFAN | Large Fan for ADL35-BBHS |
| ADL35-SOSET | Benchtop Stand-Off Set for ADL35-BBHS, M3, 6mm, 37mm |
