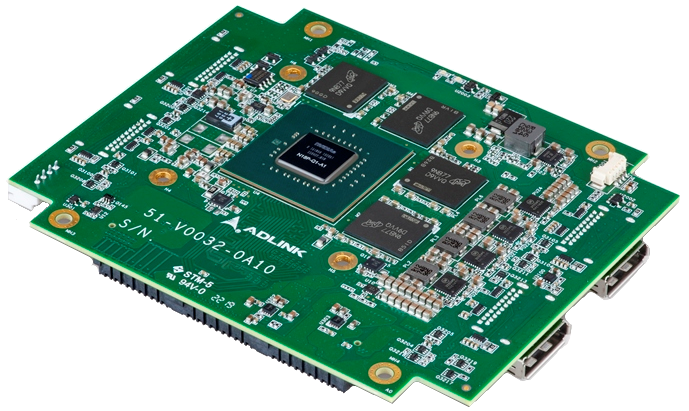

CM5-P1000

PCIe/104 Type 1 Embedded Graphics Module with NVIDIA Quadro P1000
  • Details
  • Specification
  • Order information
  • 640 CUDA cores
  • 4GB GDDR5 memory
  • 4x UHD DisplayPort outputs
  • Operating temperature: -40 to +85°C

Being an industry-first solution, the CM5-P1000 module, expanding the company’s advanced solutions for AI-enabled mission-critical applications. Supplied in a PCIe/104 Type 1 format (measuring 116mm x 96mm), this module addresses the size, weight and power (SWaP) restrictions that aerospace and defense applications must adhere to. As an NVIDIA Elite Partner, ADLINK leverages unrivalled access to advanced processing technologies as well as the highest levels of technical support.

Inclusion of an NVIDIA Quadro P1000 GPU gives this PC104 module access to 640 CUDA cores and enables 1.8TFLOPS performance levels. With 4GB of GDDR5 memory embedded, it has a 128-bit memory width and delivers a 96GB/s maximum bandwidth. The CM5-P1000 incorporates 4 ultra-high definition (UHD) DisplayPort outputs, along with a 16 lane PCIe Gen3 bus.

As one of the founding companies of PC104 technology, ADLINK leveraged its deep expertise and extensive experience in the development of the new product. The CM5-P1000 module has been designed to maintain uptime in even the most challenging of working environments. It can cope with exposure to extreme temperatures, high altitudes, shocks and vibrations. An operational temperature range spanning from −40°C to +85°C is supported, and humidity levels of 96% can be withstood. It can run on either Windows 10 or 64-bit Linux operating systems.

PC/104 will remain an optimum small form factor for mission-critical applications for many years to come. With its high-performance processing power, the CM5-P1000 is highly suitable for a broad spectrum of potential use cases — attending to various ground-based and airborne computing tasks. These include radars, intelligence, surveillance and reconnaissance (ISR), unmanned ground vehicles (UGV), unmanned aerial vehicles (UAV), missile systems, etc. Other areas in which it will be of value are in relation to factory automation and process control.

Technical specifications

Graphics Core

Architecture NVIDIA Pascal GP107, 640 CUDA cores
GPU Quadro P1000
Display outputs 4x DisplayPort 1.4 digital video outputs
Signal interface PCI Express x16 Gen3 bus

GPGPU Computing

GFLOPS 1.8 TFLOPS peak FP32 performance
CUDA support CUDA Toolkit 8.0, CUDA Compute version 6.1
OpenCL 1.2, DirectX 12, OpenGL 4.5, Vulcan 1.0

Memory

GDDR5 memory 4GB
Memory width 128-bit
Bandwidth 96 GB/s

Physical

Dimensions 116 (W) x 96 (D) mm
Interface PCIe/104 type 1

Operating Systems

Supported OS Windows 7/10, Linux 64-bit

Environmental and physical specifications

Operating temperature -40 to +85°C
Storage temperature -40 to +85°C
Operating Humidity 95% @40˚C (non-condensing)
Model Description
CM5-P1000 PCIe/104 Type 1 Graphics module, NVIDIA Quadro P1000 (640 CUDA cores), 4GB GDDR5, 0°C to +60°C
CM5-P1000-ETT PCIe/104 Type 1 Graphics module, NVIDIA Quadro P1000 (640 CUDA cores), 4GB GDDR5, -40°C to +85°C
Accessories
CMx‑P1000TM‑00 CM5-P1000-DP heat spreader, -40°C to +85°C
CMx-P1000TM-10 CM5-P1000-DP passive heat sink, -40°C to 85°C with air flow
CMx‑P1000TM‑20 CM5-P1000-DP active heat sink, -10°C to 70°C
CMx-P1000TM-30 CM5-P1000-DP active heat sink for ETT test, -40°C to 85°C
