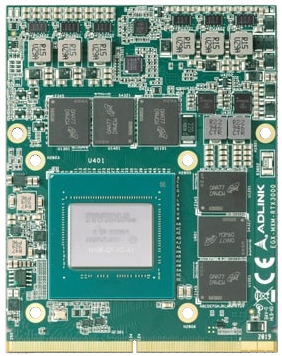

EGX-MXM-RTX3000
Embedded MXM GPU Module with NVIDIA Quadro Embedded RTX3000
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- NVIDIA Turing Architecture
- 1920 CUDA cores, 30 RT cores, and 240 Tensor cores
- 6GB GDDR6 memory, 192-bit
- Extended temperature: -20°C to +70°C (-4˚F to 158˚F)
The EGX-MXM-RTX3000 module features advanced NVIDIA Turing GPU technology in MXM 3.1 Type B form factor. It’s compact, slim and reliable design makes it suitable for mission critical environment.
With Quadro Turing TU106 processing cores, EGX-MXM-RTX3000 supports 4 DP1.4 displays offering a flexible and easy solution for medical and gaming applications.
| Technical specifications | |
| GPU | Quadro RTX3000 |
| Memory |
6GB GDDR6 memory, 192-bit Bandwidth: 336 GB/s |
| CUDA Cores |
1920 CUDA cores 5.3 TFLOPS peak FP32 performance |
| Tensor Cores | 240 Tensor Cores |
| RT Cores | 30 RT Cores |
| Compute API |
CUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL 1.2 |
| Graphics API |
DirectX 12, OpenGL 4.6, Vulcan 1.0 API |
| Display Outputs |
4x DisplayPort 1.4a digital video outputs 4K at 120Hz or 8K at 60Hz |
| Interface | MXM 3.1, PCI Express Gen3 x16 support |
| Dimensions | 82 (W) x 105 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type B |
| Module Power Consumption | 80W TGP |
| OS Support | Windows 11, 10 & Linux Drivers, 64-bit |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature |
Standard: 0°C to +55°C (32˚F to 131˚F) Extended temperature: -20°C to +70°C (-4˚F to 158˚F) |
| Storage Temperature | -40°C to 85°C (-40˚F to 185˚F) |
| Model | Description |
| EGX‑MXM‑RTX3000 | NVIDIA Quadro RTX3000 Embedded Graphics, MXM 3.1 type B, 82 x 105mm, PCIe x16 Gen3 |
| EGX‑MXM‑AD | PCIe-to-MXM adapter supporting ADLINK Mobile PCI Express Modules with NVIDIA embedded GPUs |
