Embedded MXM GPU Module with NVIDIA Quadro Embedded T1000
  • Details
  • Specification
  • Order information
  • NVIDIA Turing Architecture
  • 896 NVIDIA CUDA cores
  • 4GB GDDR6 memory, 128-bit
  • Extended temperature: -20°C to +70°C (-4˚F to 158˚F)

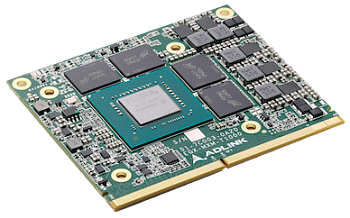

The EGX-MXM-T1000 module features advanced NVIDIA Turing GPU technology in MXM 3.1 Type A form factor.

It’s compact, slim and reliable design makes it suitable for mission critical environment. EGX-MXM-T1000 provides improved performance per watt.

This MXM GPU module offers a flexible and easy solution for deep learning solutions for applications including medical, image processing, and gaming applications.

Technical specifications
GPU Quadro T1000
Memory 4GB GDDR6 memory, 128-bit
Bandwidth: 192 GB/s
CUDA Cores 896 CUDA cores
2.6 TFLOPS peak FP32 performance
Compute API CUDA Toolkit 8.0 and above,
CUDA Compute version 6.1 and above, OpenCL 1.2
Graphics API DirectX 12, OpenGL 4.6,
Vulcan 1.0 API
Display Outputs 4x DisplayPort 1.4a digital video outputs
4K at 120Hz or 8K at 60Hz
Interface MXM 3.1, PCI Express Gen3 x16 support
Dimensions 82 (W) x 70 (D) x 4.8 (H) mm
Form Factor Standard MXM 3.1 Type A
Module Power Consumption 50W TGP
OS Support Windows 11, 10 & Linux Drivers, 64-bit

Environmental and physical specifications

Operating Temperature Standard: 0°C to +55°C (32˚F to 131˚F)
Extended temperature: -20°C to +70°C (-4˚F to 158˚F)
Storage Temperature -40°C to 85°C (-40˚F to 185˚F)
Model Description
EGX‑MXM‑T1000 NVIDIA Quadro Embedded T1000, MXM 3.1 type A, 82 x 70mm, PCIe x16 Gen3
EGX‑MXM‑AD PCIe-to-MXM adapter supporting ADLINK Mobile PCI Express Modules with NVIDIA embedded GPUs
