PCM-C418
PC/104 Single Board Computer
Vendor:WinSystems
- Details
- Specification
- Order information
- DMP Vortex86DX3 Processor (Dual core)
- 2 GB DDR3-LV System RAM (Soldered)
- Rich I/O
- Operating temperature: -40°C to +85°C

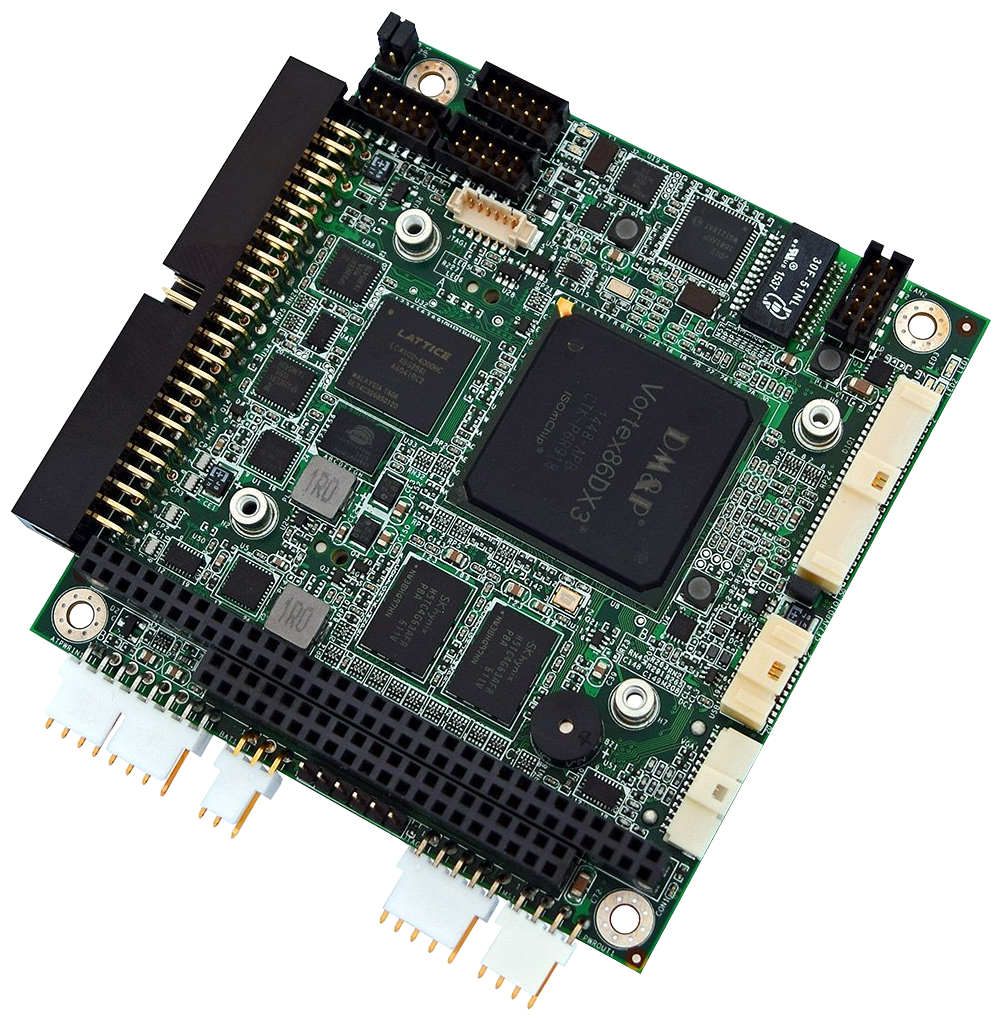

WinSystems’ PCM-C418 single board computer (SBC) is a PC104 form factor featuring the latest generation DM&P Vortex86DX3 SOC processor. Its small size, low power, rugged design, and extended operational temperature range make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.
| Technical specifications | |
| Processor | DMP Vortex86DX3 Dual-core 1 GHz |
| Operating System Compatibility | Compatible with Linux, Windows7, and other x86 OS |
| Memory (RAM) | 2GB of DDR3LV soldered-down memory |
| BIOS | AMI BIOS |
| Video | Analog VGA resolution up to 1920×1440 |
| Ethernet |
One 10/100/1000 Intel i210 Gigabit One 10/100 Fast Ethernet |
| Storage |
1 SATA (2.0) channel 1 CompactFlash socket 1 MB soldered down SRAM Up to 64GB eMMC soldered down SSD (MOQ Required) |
| General Purpose I/O | 24 general purpose I/O supported voltages to 30VDC |
| Serial I/O | Four serial ports (RS-232/422/485) |
| LPT Parallel Port | SPP/EPP Compatible |
| USB | Four USB 2.0 ports |
| Watchdog Timer | Adjustable from 1 second to 255 minute reset |
| Bus Expansion | PC/104 16-bit ISA (8-16MHz) |
| Power |
Typical Power = 5V @ 1.2A Maximum power = 5V @ 1.5A |
| Mechanical |
PC/104 Compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm) Weight: PCM-C418-2-0-ST: 6.4oz (182g) PCM-C418-2-1-ST: 9.76 oz (277g) PC Board thickness: 0.078 inches (1.98mm) |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| RoHS | Compliant |
| Model | Description |
| PCM‑C418‑2‑0‑ST | 1 GHz PC/104 SBC with dual Ethernet, 2GB RAM, 1MB stack-through connector, with heat spreader |
| PCM‑C418‑2‑1‑ST | 1 GHz PC/104 SBC with dual Ethernet, 2GB RAM, 1MB stack-through connector, with heatsink |
| CBL‑SET‑418‑2 | Cable and accessories set |
| BAT‑LTC‑E‑36‑16‑1 | External 3.6 V, 1650 mAH optional battery |
| BAT‑LTC‑E‑36‑27‑1 | External 3.6 V, 2700 mAH optional battery |
