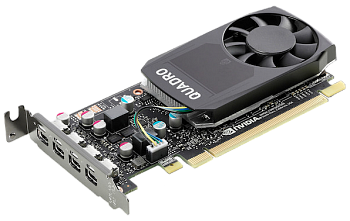

Quadro-E PEG P1000
PCI Express Graphic Card with NVIDIA Quadro Embedded P1000
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- NVIDIA Pascal GP107 Graphic Architecture
- 640 CUDA cores
- 4GB GDDR5 memory, 128-bit
- Operating temperature: 0°C to +55°C (32˚F to 131˚F)
Quadro-E PEG P1000 combines a 640 CUDA core Pascal GPU, 4GB GDDR5 onboard memory, and advanced display technologies in a low-profile form factor to deliver the graphics performance demanded in professional application.
Support for four 4K displays (4096x2160 @ 60Hz) with HDR color provides an expansive visual workspace with maximum detail.
| Technical specifications | |
| Graphic Architecture | NVIDIA Pascal GP107 |
| GPU | Quadro P1000 |
| Memory |
4GB GDDR5 memory, 128-bit, Bandwidth: 80 GB/s |
| CUDA Cores |
640 CUDA cores 1.89 TFLOPS peak FP32 performance |
| Compute API |
CUDA Toolkit 8.0, CUDA Compute version 6.1, OpenCL 1.2, Direct Compute |
| Graphics API | Shader Model 5.1, OpenGL 4.5, DirectX 12, Vulkan 1.0 |
| NVIDIA Technology |
NVIDIA Mosaic Technology NVIDIA nView Display Management Technology |
| Display Outputs |
4x mDP 1.4 4096x2160 @ 60Hz 5120x2880 @ 60Hz HDCP 2.2 support * VGA/DVI/HDMI support via adapter/connector/bracket |
| Interface | PCI Express 3.0 x16 |
| Dimensions | 68.91 x 144.78 mm (2.713” × 5.7”), single slot |
| Weight | 129g |
| Module Power Consumption | 47W |
| OS Support | Windows 7/10 & Linux Drivers, 64-bit |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | 0°C to +55°C (32˚F to 131˚F) |
| Storage Temperature | -40°C to +75°C (-40˚F to 167˚F) |
| Operating RH | 5% to 90% |
| Storage RH | 5% to 90% |
| Model | Description |
| Quadro‑E PEG P1000 | NVIDIA Quadro Embedded P1000, PCIe x16 Gen3, 4x mDP 1.4, 2.713” H x 5.7” L, single slot, low profile (The product is recommended to use with MXC-6400, MVP-6010, MVP-6020 and MVP-6000.) |
