PCIe-GIE7xP Series
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Support for 2/4 independent Gigabit Ethernet ports
- IEEE 802.3at for PoE+ (Power over Ethernet Plus)
- Up to 20/60/120W PoE power from PCIe bus/4-pin/6-pin Molex connector
- Operating temperature: 0°C to +70°C (32°F to 150°F) (max.)

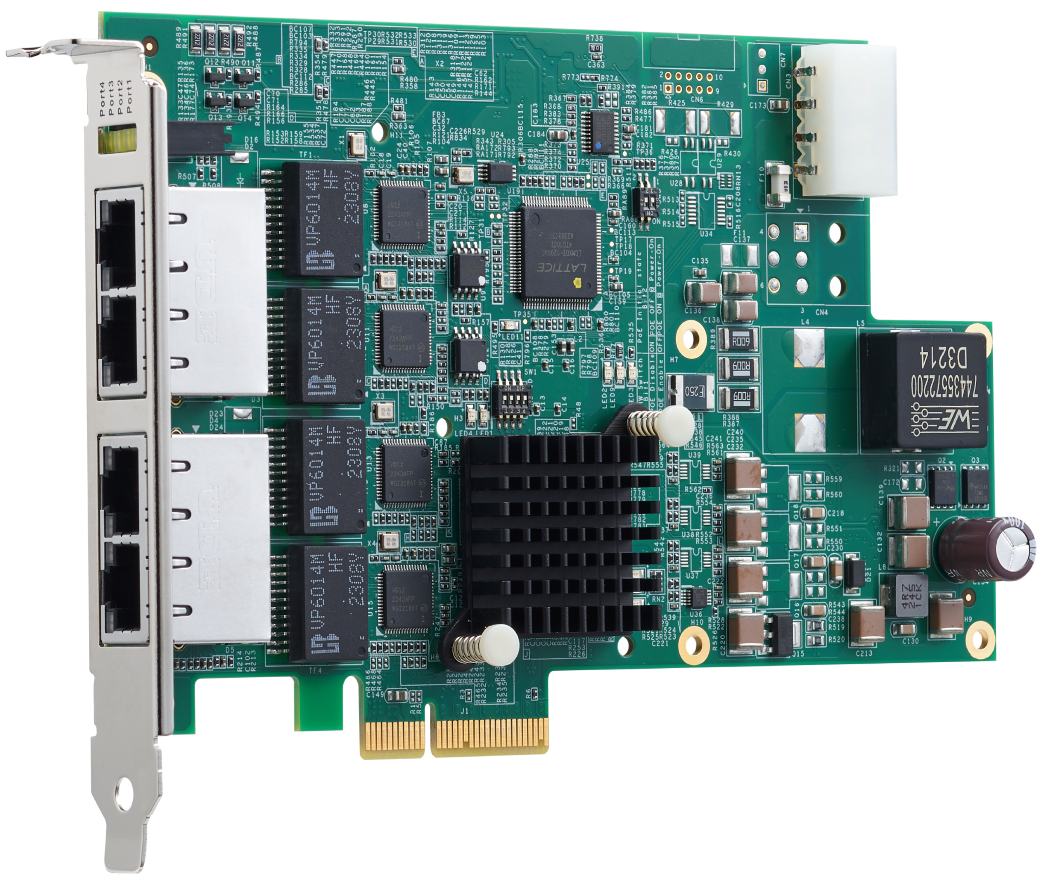

Adlink’s PCIe-GIE7xP series PCI Express PoE+ frame grabber supports 2/4-CH independent Gigabit Ethernet ports for multiple GigE Vision connections transferring up to 1 Gb/s per port. PoE+ provides up to 30W power and automatic detection for stable, reliable connections, reducing costs, simplifying installation, and easing maintenance burdens.
Multi-card Capture Capability
Any number of PCIe-GIE7xP series cards can be installed in a single system without occupying any I/O resources, for multicard singlesystem machine vision grabs. A wide operating temperature range supports integration with fanless computers for Industrial Automation applications in harsh environments.
Comprehensive PoE Protection Secures Assets
Exclusive comprehensive PoE Protection prevents overcurrent and overvoltage, and automated power budget control adjusts PoE port power supply automatically, avoiding equipment damage.
Smart PoE Management
Easy-to-use utility and API provide real-time PoE status monitoring and control, lowering maintenance costs and predicting possible failure in advance, while PoE power priority selection and PoE-based power on/off support more demanding applications.
| Technical specifications | |
| Form Factor | PCI Express x4 |
| Ethernet Ports |
4 fully-integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports (2x Gigabit Ethernet for PCIe-GIE72P) |
| PoE | PoE+ (Power over Ethernet Plus), IEEE 802.3at compliant, supporting 0, 1, 2, 3, and 4, up to 30W |
| Jumbo frame support | 9 kB jumbo frame support |
| Functions |
PoE Power Management (except PCIe-GIE72P) Link Aggregation, IEEE 1588 (PTP technology) Multiple cards and multiple cameras PoE Protection (Overcurrent, Overvoltage, Short Protection) Over Temperature Protection (except PCIe-GIE72P) |
| Power Requirements |
+3.3V max @ 3A +3.3V max @ 2.5A for PCIe-GIE72P Note: Max 61,6W PoE power w/ 4-pin (+12V@6A) Molex connector Max 20W PoE power w/ PCIe slot (+12V@2.1A) |
| Dimensions | 167.6 mm x 106.6 mm (6.6” x 4.2”) (W x L) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature |
60W PoE: 0°C to +70°C (32°F to 150°F) (PCIe-GIE72P, PCIe-GIE74P) 60W PoE: 0°C to +60°C (32°F to 140°F) (PCIe-GIE74P-AT, PCIe-GIE74P-AN) |
| Humidity | 5% to 90% RHNC |
| Model | Description |
| PCIe‑GIE72P | Power over Ethernet Plus frame grabber with PoE power management, 2 fully-integrated Gigabit Ethernet ports, operating temperature: 0-70°C |
| PCIe-GIE74P | Power over Ethernet Plus frame grabber with PoE power management, 4 fully-integrated Gigabit Ethernet ports, operating temperature: 0-70°C |
| PCIe‑GIE74P‑AT | Power over Ethernet Plus frame grabber with PoE power management, 4 fully-integrated Gigabit Ethernet ports, operating temperature: 0-60°C |
| PCIe‑GIE74P‑AN | Power over Ethernet Plus frame grabber, 4 fully-integrated Gigabit Ethernet ports, operating temperature: 0-60°C |
