PCIe-U300 Series
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Up to 12x USB 3.0 ports
- Up to 20W USB power from PCIe bus and up to 60W by 4-pin Molex power connector
- Up to 1500mA max. current per port
- Operating temperature: 0°C to +60°C (32°F to 140°F)
Adlink’s PCIe-U300 Series is a PCI Express x4 Gen2 USB3 Vision frame grabber supporting 4/8/12 USB 3.1 Gen 1 ports for multiple USB3 Vision device connections with data transfer up to 5 Gb/s per port.
The PCIe-U300 Series supports 5V and up to max. 1500mA current per port for external USB3 Vision industrial cameras. To guarantee industrial-grade high-bandwidth performance for each port, four independent Fresco FL1100 USB 3.1 Gen 1 host controllers with PCI Express x4 Gen2 interface allow each USB port to provide up to 5Gbps bandwidth when operating four ports simultaneously. It also supports software-programmable per-port power on/off control for fault recovery operations.
ADLINK’s PCIe-U300 Series provides excellent capability to interface with USB 3.0 devices for machine vision, factory automation, quality assurance, logistics, medicine, and security and traffic surveillance applications.
| Technical specifications | |
| PCI Express Specification | 4-lane PCI Express Gen 2.1 (5 GT/s), 1 slot |
| Differential Output Peak to Peak Voltage | +0.8 V to +1.2 V |
| Differential Input Peak to Peak Voltage | +0.175 V to +1.2 V |
| Input voltage for PERST#, WAKE#, and SMBus | -0.75 V to +4.05 V |
| USB Port Number (on Bracket) |

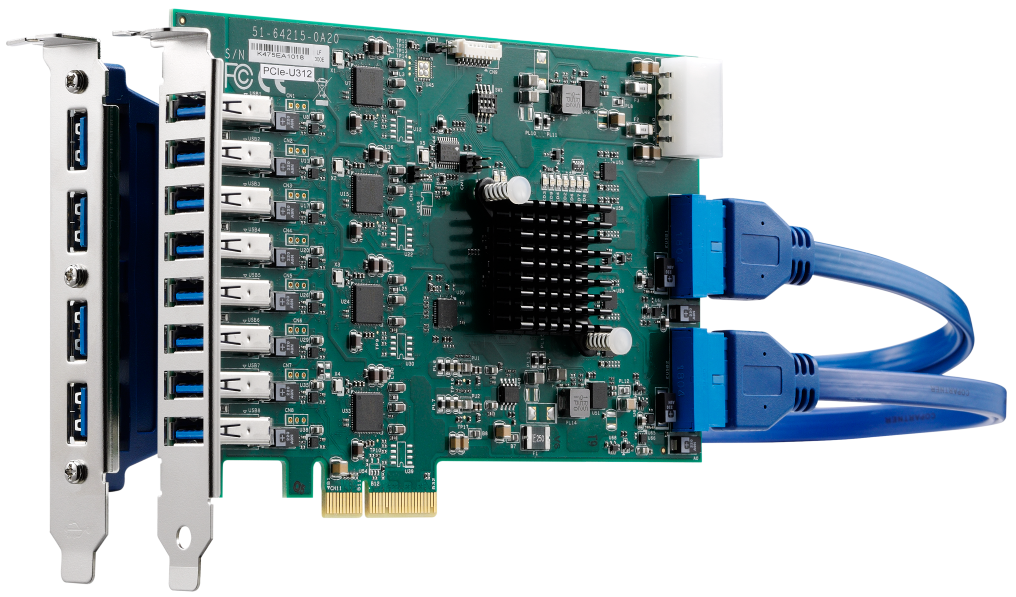

PCIe-U304: 4 PCIe-U308: 8 PCIe-U312: 12 (4 via extension) |
| USB Port Connector (on Bracket) | USB Type A Connector |
| USB Host Controller |
4 x Fresco FL1100 Host Controller Compliant with USB 3.0 Specification and Intel xHCI Specification, Revision 1.0 |
| Data Transfer Rate |
SuperSpeed (5.0 Gbps), High Speed (480.0 Mbps) Full Speed (12.0 Mbps), Low Speed (1.5 Mbps) |
| Output Voltage (at PSE) |
PCIe-U304, PCIe-U308: 5V ± 5% PCIe-U312: 5V of 4-Pin cable minus 0.25V |
| Current Limit Range (Per Port) |
PCIe-U304, PCIe-U308: 1700 mA ± 7% PCIe-U312: Port 1-8: 1700 mA ± 7% Port 9-12: 1100 mA ± 7% |
| USB Power Management |
Software-programmable per-port power on/off Voltage, current overload and short circuit protection |
| PCBA max. Power Requirement | +3.3V 2A, +12V @ 0.1A (w/o USB Power Delivery) |
| USB Power Delivery Capacity (at PSE) |
PCIe Slot only w/o 4-pin Molex Connector: PCIe-U304, PCIe-U308: Max. 20W USB Power PCIe-U312: 4-pin Molex connector required for extension ports PCIe Slot w/ 4-pin Molex Connector: PCIe-U304: Max. 30W USB Power PCIe-U308: Max. 60W USB Power PCIe-U312: Max. 78W USB Power |
| Dimensions (W x L) | 167.65 mm x 111.15 mm (6.59” x 4.37”) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | 0°C to 60°C (32°F to 140°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 90% RHNC |
| Safety Compliance | CE/FCC, Class A |
| Model | Description |
| PCIe‑U312 | 12-ch PCI Express x4 Gen2 USB3 Vision frame grabber |
| PCIe‑U304 | 4-ch PCI Express x4 Gen3 USB3 Vision frame grabber |
| PCIe‑U308 | 8-ch PCI Express x4 Gen3 USB3 Vision frame grabber |
