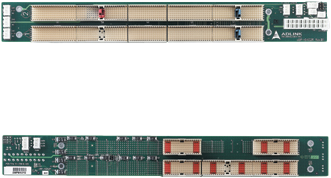

2-slot 64-bit 6U CompactPCI Backplane
  • Details
  • Specification
  • Order information
  • 1x system slot: left-hand side (bottom side)
  • 1x peripheral slot
  • PICMG:2.0 R3.0, 2.1 R2.0, 2.5 R1.0
  • cPCI Bus:Up to 64-bit/66MHz

Adlink offers a wide selection of standard backplanes from single up to 20 slots. Furthermore, a professional OEM team is capable of custom backplanes with a quick turnaround tailored to your specifications. Adlink makes designing, developing, prototyping, and maintaining your projects simple & efficient. For all your backplane needs, give us a call, we have a solution for you.

Technical specifications
PICMG 2.0 R3.0, 2.1 R2.0, 2.5 R1.0
Dimensions 321.5 x 39.64 (mm, W x H)
Segment 1
cPCI Bus Up to 64-bit/66 MHz
System Slot Left-hand side (soldered side)
System Slot Rear I/O P3, P4 and P5 rear I/O with AB-type shroud
Peripheral Slot 1
Peripheral Slot Rear I/O P3 and P5 rear I/O with AB-type shroud
V (I/O) 3.3 V or 5 V selectable, factory default is 5 V
Power Input ATX connector
Other Connectors Six Fans, PS_ON, Reset, PWR_LED
Chassis or Sub-systems cPCIS-6130R
Model Description
cBP‑6402R 2-slot 64-bit 6U cPCI Backplane with Rear I/O
