COM335

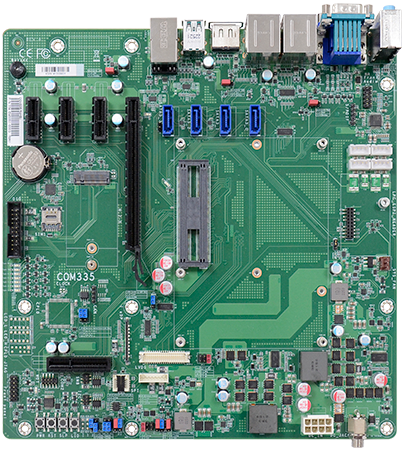

COM Express Carrier Board
Vendor:DFI
- Details
- Specification
- Order information
- COM Express R3.1, Pin-out Type 6 & Type 10
- Support Compact and Mini modules
- Multiple displays, rich I/O
- Operating temperature: 0 to +60°C
DFI’s carrier board (also known as base board or evaluation board) offers a flexible engineering development environment for COM Express Type 10, Type 7, Type 6, Type 2, and Qseven. Which helps our customers minimize integration requirements while reducing development time and cost.
| Technical specifications | |
|
Graphics |
|
|---|---|
| Display |
1x VGA 1x LVDS/eDP (eDP available upon request) 3x DP 1x eDP/LVDS (LVDS available upon request) |
|
Expansion |
|
| Interface |
1x PCIe x16 1x PCIe x4 3x PCIe x1 1x M.2 B Key 3042/3052 1x SDIO |
|
Audio |
|
| Audio Codec | Realtek ALC888S-VD2-GR |
|
I/O |
|
| Ethernet | 1x GbE (RJ-45) |
| USB | 3x USB 3.1 (Gen 2) 4x USB 2.0 |
| Display | 3x DP |
| Audio |
1x Line-in 1x Line-out 1x Mic-in |
|
Internal I/O |
|
| Serial | 1x Serial Interface Connector (TX/RX) |
| Display |
1x VGA (2.54mm) 1x LVDS LCD Panel Connector 1x LCD/Inverter Power 1x eDP LCD Panel Connector |
| Audio |
1x Audio (Line-out/Mic-in) 1x S/PDIF |
| SATA | 4x SATA 3.0 (up to 6Gb/s) |
| DIO | 1x 8-bit DIO |
| LPC | 1x LPC |
| SMBus | 1x SMBus |
|
Power |
|
| Type |
12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) |
| Connector |
4-pin ATX 12V power 24-pin ATX power |
| RTC Battery | CR2032 Coin Cell |
|
Mechanical |
|
| Dimensions |
microATX Form Factor 244mm (9.6") x 244mm (9.6") |
| Compliance |
PICMG COM Express R3.1, Type 6 & Type 10 Compact, Mini Module |
|
Environmental and physical specifications |
|
| Temperature |
Operating: 0 to 60°C Storage: -40 to 85°C |
| Humidity |
Operating: 5 to 90% RH Storage: 5 to 90% RH |
| MTBF | 495,767 hrs @ 25C; 284,320 hrs @ 45C; 181,227 hrs @ 60C; 133,598 hrs @ 70C; 84,828 hrs @85C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled |
| Certifications | CE, FCC, RoHS, UKCA |
| Model | Description |
| 770‑COM3351‑000G | 1 GbE, 3 USB 3.1, 4 USB 2.0, power ATX/AT, with fan, 0 to 60°C |
| 332-553001-005G | Serial ATA data cable, length: 500mm |
| 770-EXTRS1-000G | LPC EXT-RS232 module, 4x RS-232 ports |
| 770-EXTRS1-100G | LPC EXT-RS485 module, 4x RS-485 ports |
| A49-COM332-010G | I/O shield |
