HDMI2SDI-mini
HDMI to HD-SDI converter
Vendor:Info only
- Details
- Specification
- Order information
- HDMI input up to 1080p30
- Low power operation (3.3V @ <1A)
- Compact miniPCI-express form factor
- Operating temperature: -40°C to +85°C

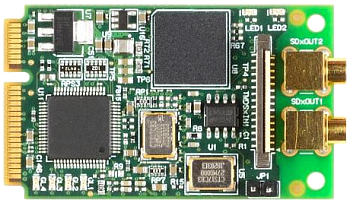

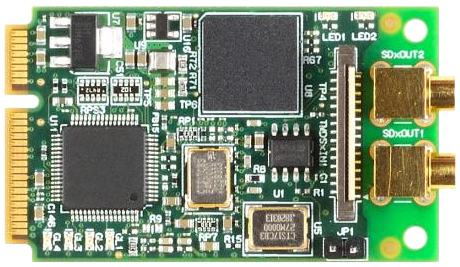

The HDMI2SDI-mini is a HDMI to HD-SDI converter on a miniPCI-express form factor card. The HDMI2SDI automatically converts High definition HDMI to HD-SDI. The compact form factor means the HDMI2SDI is ideal for video conversion in SWaP constrained systems.
The HDMISDI-mini takes in the HDMI signaling over a single flat flex connector. The HDMI is converted and output as HD SDI on a 75 Ohm MCX connector. A secondary HD-SDI output is available as an option to allow 2 HD-SDI outputs to be driven.
The HDMI2SDI-mini is an intelligent module and requires no user configuration. The HDMI2SDI-mini is powered via the miniPCI-express connector, consuming less than 3.3W.
NB: Preliminary Information Subject To Change
| Technical specifications | |
| Video input | HDMI/DVI at up to 1080p30 |
| Video output |
Primary HD-SDI output Secondary HD-SDI output (option) 75 Ohm MCX connector used for HD-SDI signalling |
| Power |
Single +3.3V power operation Low power operation (3.3V @ <1A) |
| Form factor | Standard full height miniPCI-Express form factor |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C |
| Model | Description |
| HDMI2SDI‑mini‑EXT | HDMI to HD-SDI converter (-40ºC to +85ºC) |
| Cable‑HDMI2SDI | Cable set for HDMI2SDI-mini |
