cPCIS-1100A Series

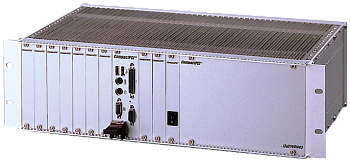

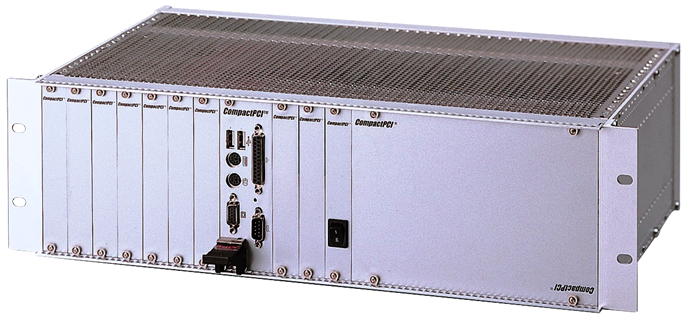

3U Enclosure with 32-bit Backplane and ATX/CompactPCI Redundant Power Supply
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 1x system slot, 7x peripheral slots
- 400 W ATX power supply or cPCI redundant power supply (up to 500 W)
- Comprehensive EMC shielding
- Optional rear I/O configuration (cPCI 50mm depth RTMs)
The cPCIS-1100 Series Subsystems are rack mountable, 3U in height, and designed for 3U CompactPCI cards and modules.
They are ideal for industrial or transport applications where small chassis size with multi-functionality are important, and provide ample power capacity, a hot swap backplane and easy maintenance.
The cPCIS-ET1100 Series’ ability to handle a wide range of temperatures and excellent shock and vibration characteristics make it suitable for operation in a rigorous environment.
The cPCIS-ET1100 Series allows for custom configuration, giving system integrators maximum flexibility to build in specialized functionality.
| Technical specifications | |
| PICMG | 2.0 R3.0, 2.1 R2.0 |
| Form Factor | 3U cPCI |
| Enclosure | 19” 3U rackmount enclosure |
| Dimensions | 482.56 x 133.35 x 250.0 (mm, W x H) |
| Segment | 1 |
| System slot | 1 |
| Peripheral slot | 7 |
| Rear I/O | 1x system slot only (cPCIS-1100A, cPCIS-1102) 8x slots (cPCIS-1100AR, cPCIS-1102R) |
| Power Supply | Optional industrial grade ATX power supply or PICMG 2.11 47-pin 3U cPCI power module(s), dependent on subsystem configuration |
| PSU QTY | 1x (cPCIS-1100A, cPCIS-1100AR) 2x (cPCIS-1102, cPCIS-1102R) |
| PSU MAX | 400 W (cPCIS-1100A, cPCIS-1100AR) 500 W (2x 250 W) (cPCIS-1102, cPCIS-1102R) |
| Certifications |
DIN IEC 68-2-6 test FC DIN IEC 68-2-27 test Ea DIN41 494, part 5 IEC 60297-3, EIA 310-D |
| Model | Description |
| cPCIS‑1100A | 3U cPCI Sub-system with 3U Enclosure. 32-bit 8-slot BP (cBP-3208), 400W ATX PSU |
| cPCIS‑1100AR | CompactPCI 19" Rackmount 3U Height Sub-system Incl. 8 slots Backplane and ATX PSU, support rear I/O |
| cPCIS‑1102 | 3U cPCI Sub-system with 3U Enclosure. 32-bit 8-slot BP (cBP-3208) and cBP-3062A, 2x cPS-H325/AC |
| cPCIS‑1102R | 3U cPCI Sub-system with 3U Enclosure. 32-bit 8-slot BP (cBP-3208R) and cBP-3062A, 2x cPS-H325/AC, Rear I/O |
