cPCIS-1202
3U Enclosure with 32-bit Backplane and CompactPCI Redundant Power Supply
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Dual 3U cPCI systems, each with 5x peripheral slots and 1x system slot
- 1x 250 W cPCI power supply per system
- Comprehensive EMC shielding
- Optional rear I/O configuration (cPCI 50mm depth RTMs)

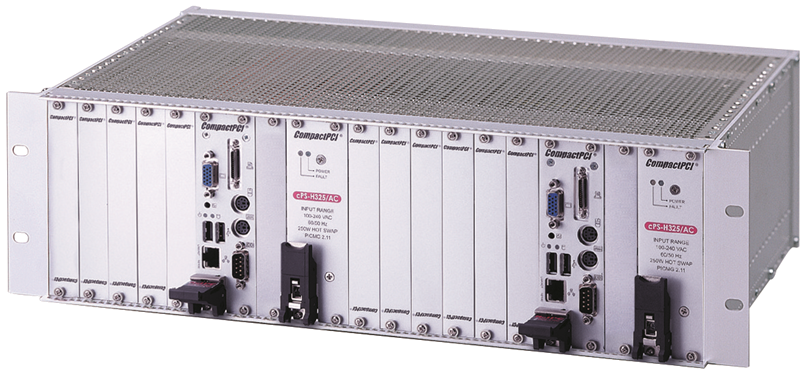

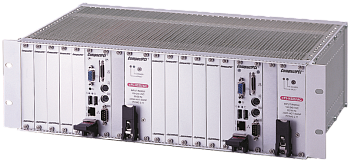

The cPCIS-1202 subsystems are rack mountable, 3U in height, and designed for 3U CompactPCI cards and modules. They feature dual 3U cPCI systems, each with 5x peripheral slots and 1x system slot.
The cPCIS-1202 is ideal for industrial or transport applications where small chassis size with multi-functionality are important, and provide ample power capacity, a hot swap backplane and easy maintenance.
| Technical specifications | |
| PICMG | 2.0 R3.0, 2.1 R2.0 |
| Form Factor | 3U cPCI |
| Enclosure | 19” 3U rackmount enclosure |
| Dimensions | 482.56 x 133.35 x 250.0 (mm, W x H) |
| Segment | 2 |
| System slot | 2x (1x per segment) |
| Peripheral slot | 10x (5x per segment) |
| Rear I/O | 2x (1x per segment) system slots only (cPCIS-1202) 12x (6x per segment) slots (cPCIS-1202R) |
| Power Supply | PICMG 2.11 47-pin 3U cPCI power module(s), dependent on subsystem configuration |
| PSU QTY | 2x (1x per segment) |
| PSU MAX | 500 W (2x 250 W) |
| Certifications |
DIN IEC 68-2-6 test FC DIN IEC 68-2-27 test Ea DIN41 494, part 5 IEC 60297-3, EIA 310-D |
| Model | Description |
| cPCIS‑1202 | 3U cPCI Sub-system for Dual System with 3U Enclosure. 2x 32-bit 6-slot BP(cBP-3206), 2x cBP-3061, 2x cPS-H325/AC |
| cPCIS‑1202R | 3U cPCI Sub-system for Dual System with 3U Enclosure. 2x 32-bit 6-slot BP(cBP-3206), 2x cBP-3061, 2x cPS-H325/AC, Rear I/O |
